Engine Flywheel Installation

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flywheel.
  2. Install the flywheel retainer.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the flywheel bolts.

    Tighten

    Tighten the flywheel bolts to 71 N.m (52 lb ft).

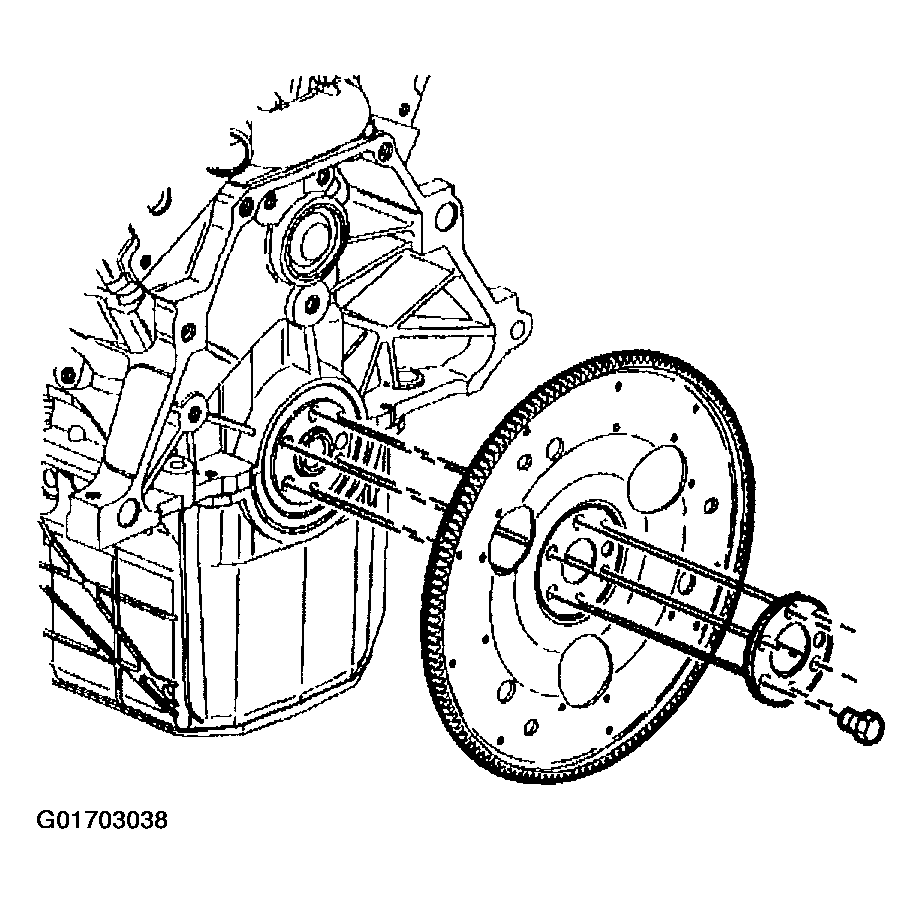

    Fig 1: Engine Flywheel
    G01703038Courtesy of GENERAL MOTORS CORP.
