Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pitman arm to the power steering gear.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the pitman arm to power steering gear retaining nut and washer.

    Tighten

    Tighten the nut to 250 N.m (184 lb ft).

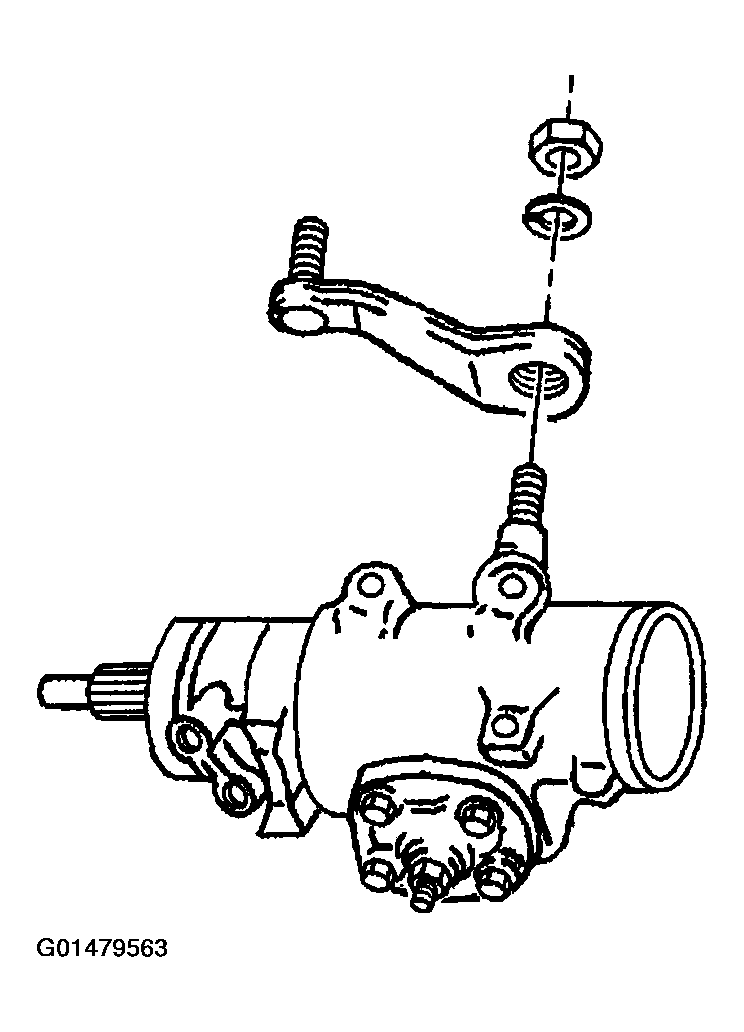

    3. Fig 1: Install Pitman Arm To Power Steering Gear Retaining Nut & Washer
    G01479563Courtesy of GENERAL MOTORS CORP.
  3. Install the steering gear to the frame and install the retaining bolts.

    Tighten

    Tighten the bolts to 150 N.m (110 lb ft).

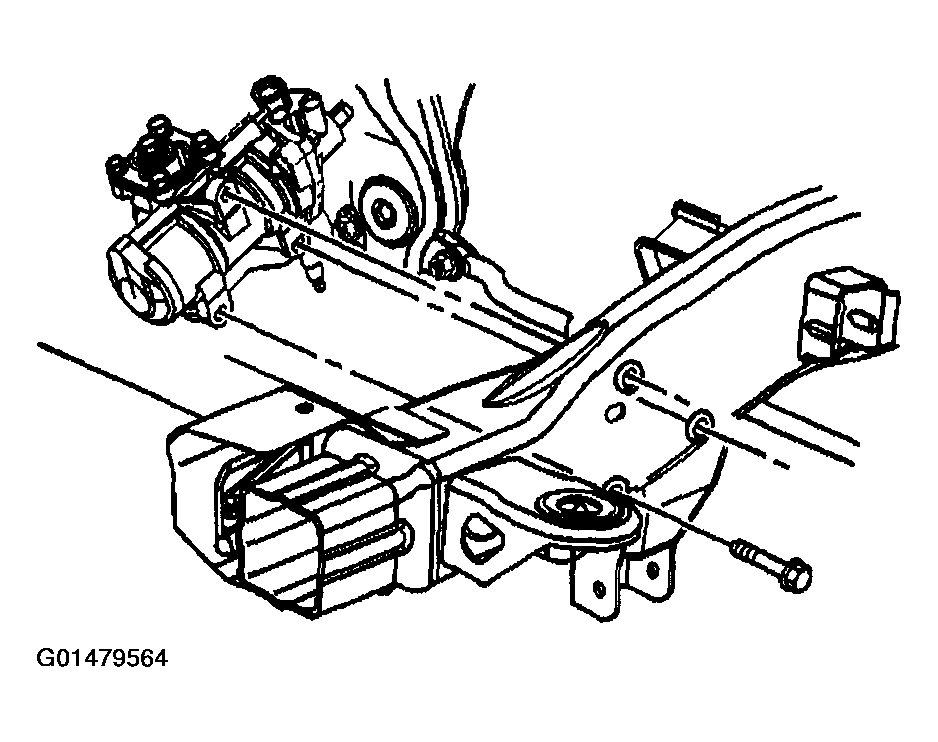

    4. Fig 2: Install Steering Gear To Frame
    G01479564Courtesy of GENERAL MOTORS CORP.
  4. Install the pitman arm to the relay rod.
  5. Install the pitman arm to the relay rod nut.

    Tighten

    Tighten the nut to 62 N.m (46 lb ft).

  6. Install the engine protection shield, if equipped.
  7. Remove the safety stands.
  8. Lower the vehicle.
  9. Install the intermediate shaft to the steering gear. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT-LOWER  .
  10. Remove the caps or plugs from the steering gear and hoses.
  11. Install the hoses to the steering gear.

    Tighten

    Tighten the hoses fittings to 28 N.m (20 lb ft).

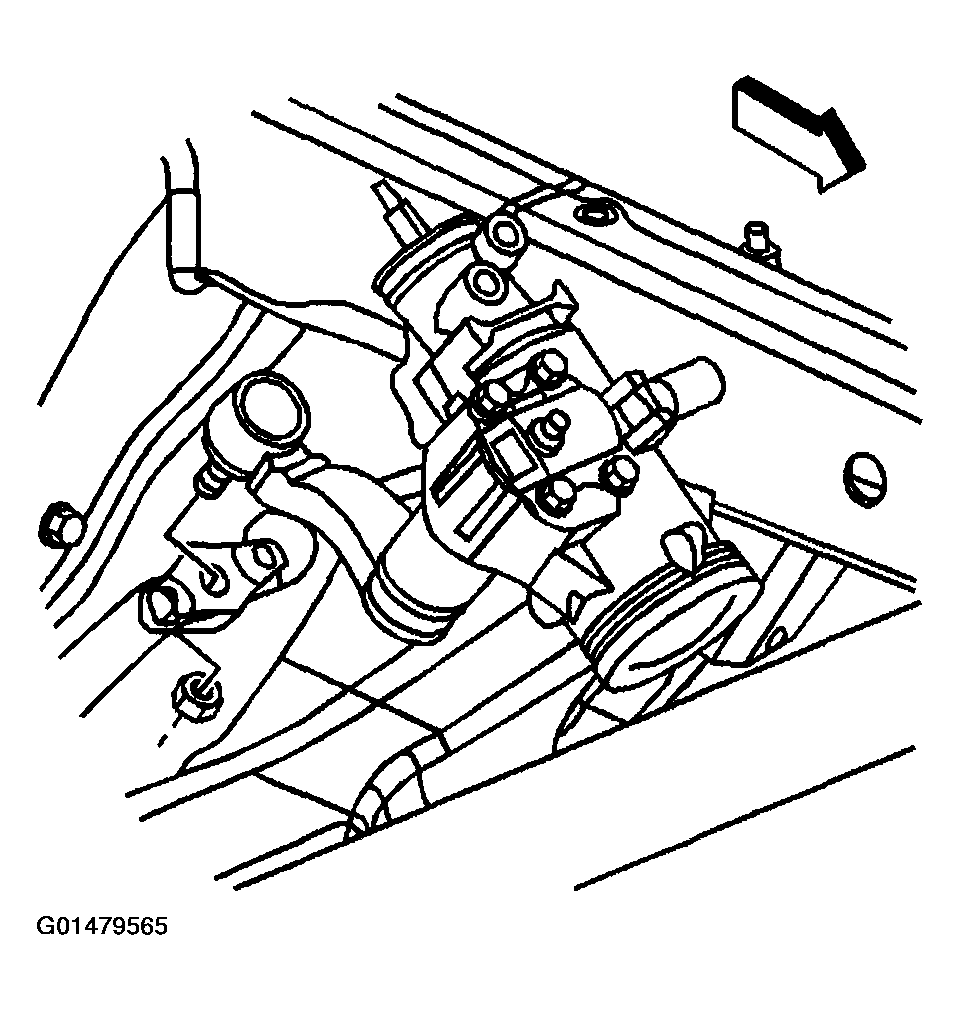

    12. Fig 3: Installing Pitman Arm To Relay Rod
    G01479565Courtesy of GENERAL MOTORS CORP.
  12. Bleed the power steering system. Refer to Bleeding the Power Steering System .
