Tools Required

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

J 6632-01 Pitman Arm Puller
J 24319-B Universal Steering Linkage Puller
J 29107-A Pitman Arm Puller

Place a drain pan under the vehicle.
NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
Remove the power steering hoses from the steering gear.
Cap the ends of the hoses and the power steering gear in order to prevent any entrance of dirt.
Disconnect the intermediate shaft from the steering gear. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT-LOWER .
Raise the vehicle. Support the vehicle with suitable safety stands. Refer to JACKING AND LIFTING .
Remove the engine protection shield, if equipped.

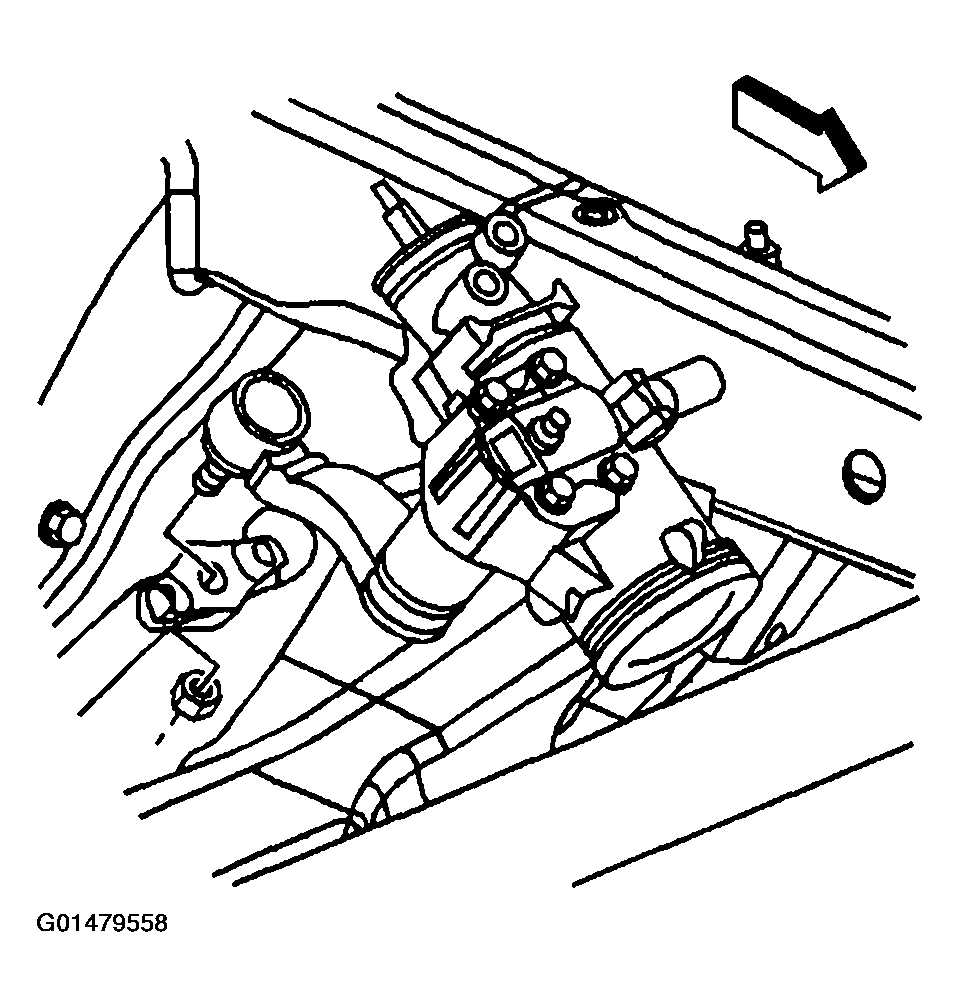

Remove the pitman arm to relay rod nut.

Fig 1: Remove Pitman Arm To Relay Rod Nut
Courtesy of GENERAL MOTORS CORP.

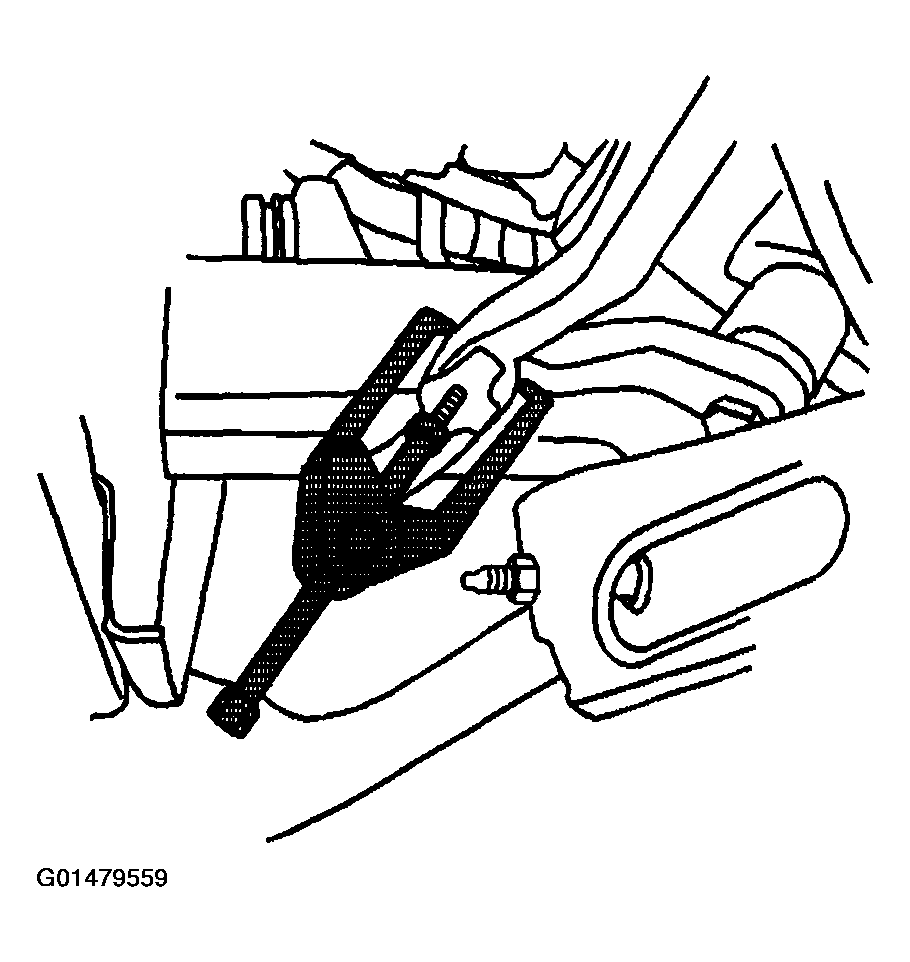

Disconnect the pitman arm from the relay rod using J 24319-B .

Fig 2: Disconnect Pitman Arm From Relay Rod
Courtesy of GENERAL MOTORS CORP.
Remove the bolts retaining the steering gear to the frame.
Remove the steering gear from the vehicle.

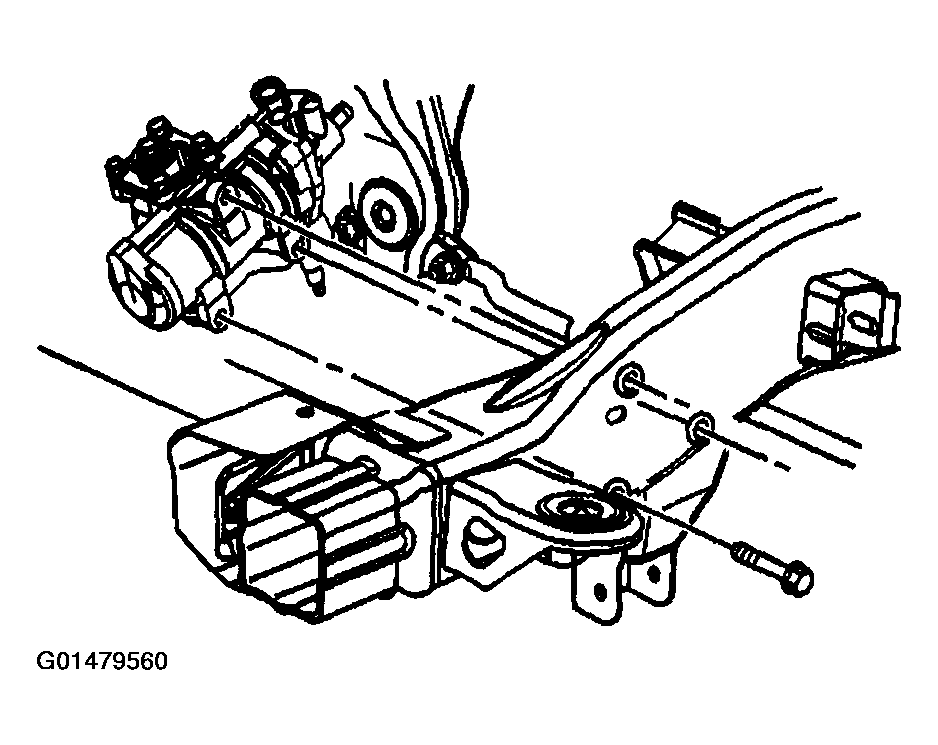

Fig 3: Removing Steering Gear & Retaining Bolts To Frame

Courtesy of GENERAL MOTORS CORP.

Remove the pitman arm to the power steering gear retaining nut.

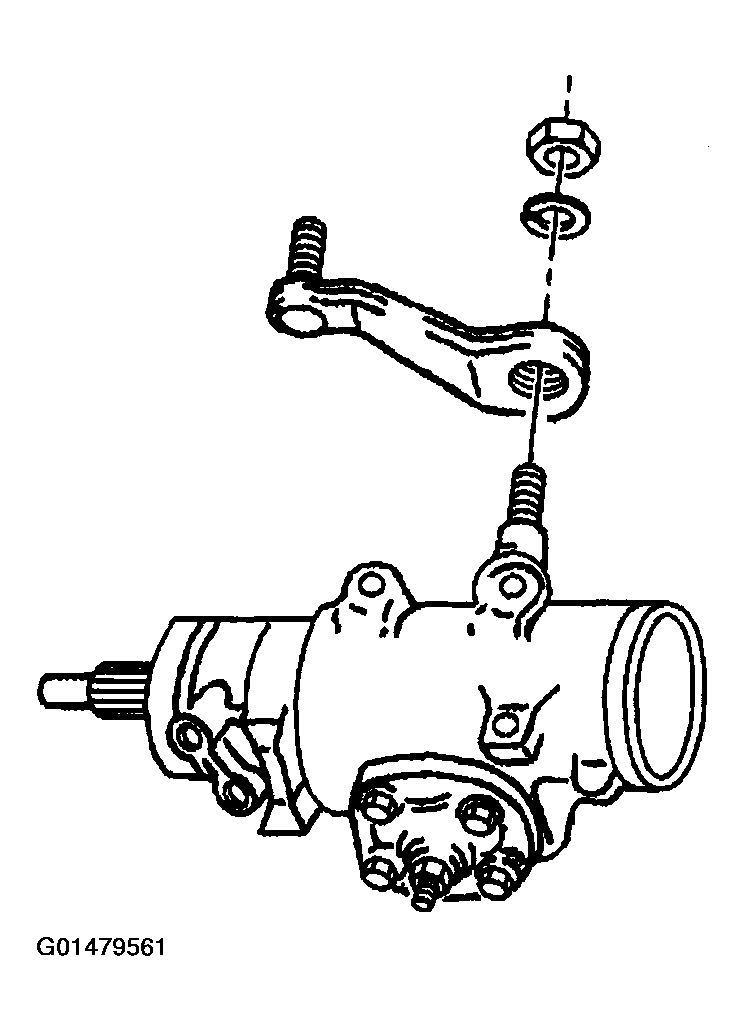

Fig 4: Remove Pitman Arm To Power Steering Gear Retaining Nut
Courtesy of GENERAL MOTORS CORP.

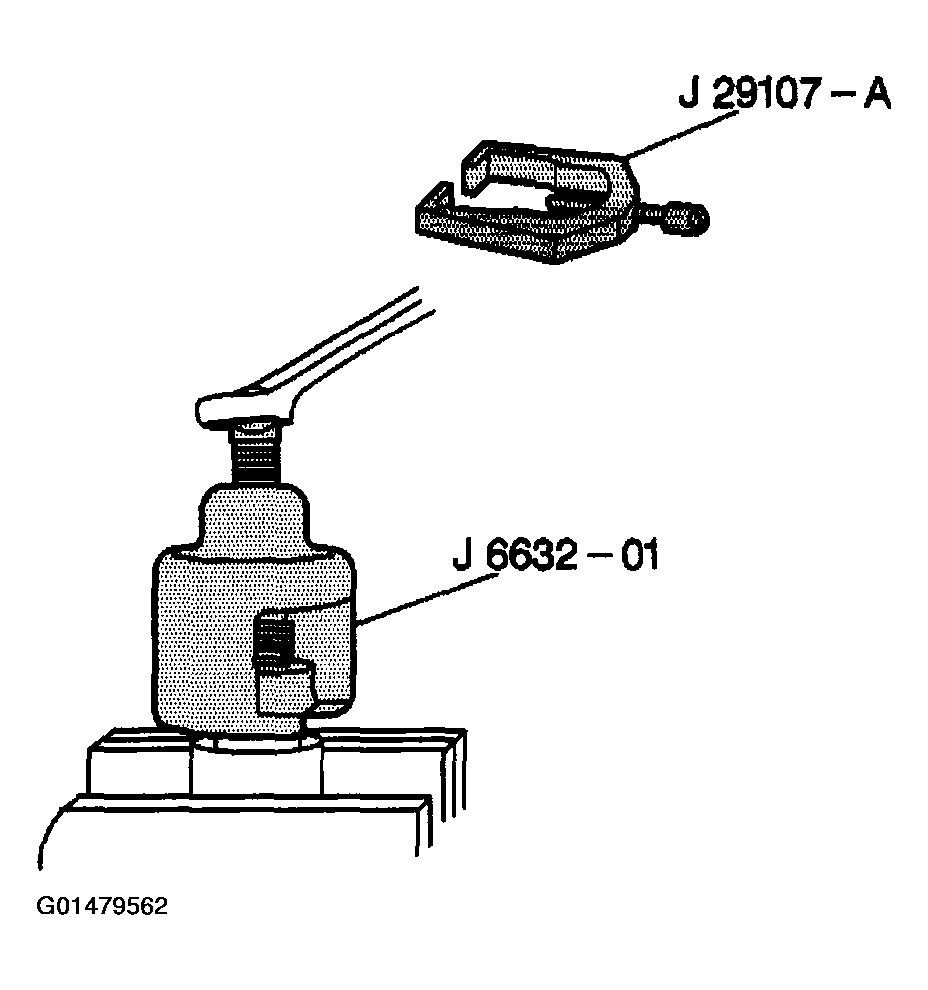

Remove the pitman arm from the power steering gear using J 6632-01 or J 29107-A .

Fig 5: Removing Pitman Arm From Power Steering Gear Using J 6632-1 & J 29107-A
Courtesy of GENERAL MOTORS CORP.
