Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the tilt lever to tilt the column to the UP position.

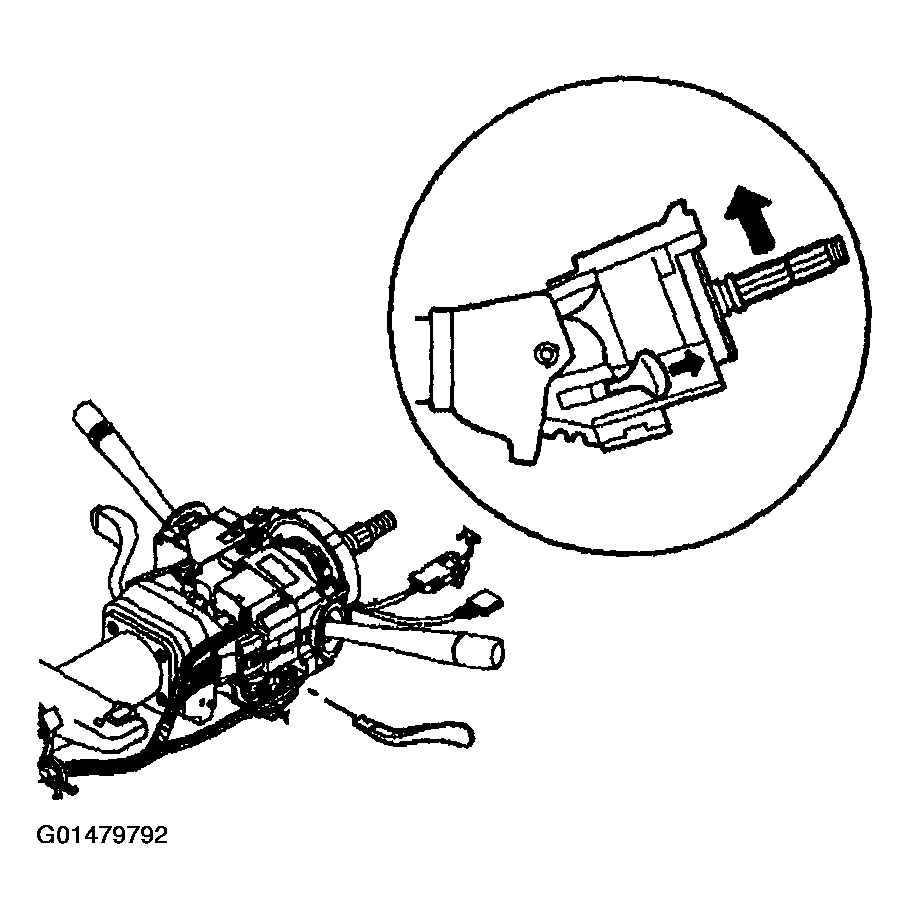

    2. Fig 1: Using Tilt Lever To Tilt Column To Up Position
    G01479792Courtesy of GENERAL MOTORS CORP.
  2. Install the spring guide into the tilt spring.
    Fig 2: Install Spring Guide Into Tilt Spring
    G01479793Courtesy of GENERAL MOTORS CORP.
    CAUTION: The tilt spring and the spring guide are under pressure. The tilt spring and the spring guide may become a projectile. Secure the spring with locking pliers during removal. Secure the spring with locking pliers during Installation. Bodily injury may result during removal and Installation of the tilt spring and the spring guide Always use caution during removal and Installation of the tilt spring and the spring guide.
  3. Install the tilt spring (1) onto the steering column support assembly (2) and onto the steering column tilt head assembly by using the following procedure:
    1. 3.1. Install the tilt spring (1) onto the steering column tilt head assembly.
    2. 3.2. Install the tilt spring (1) onto the post on the steering column support assembly (2).

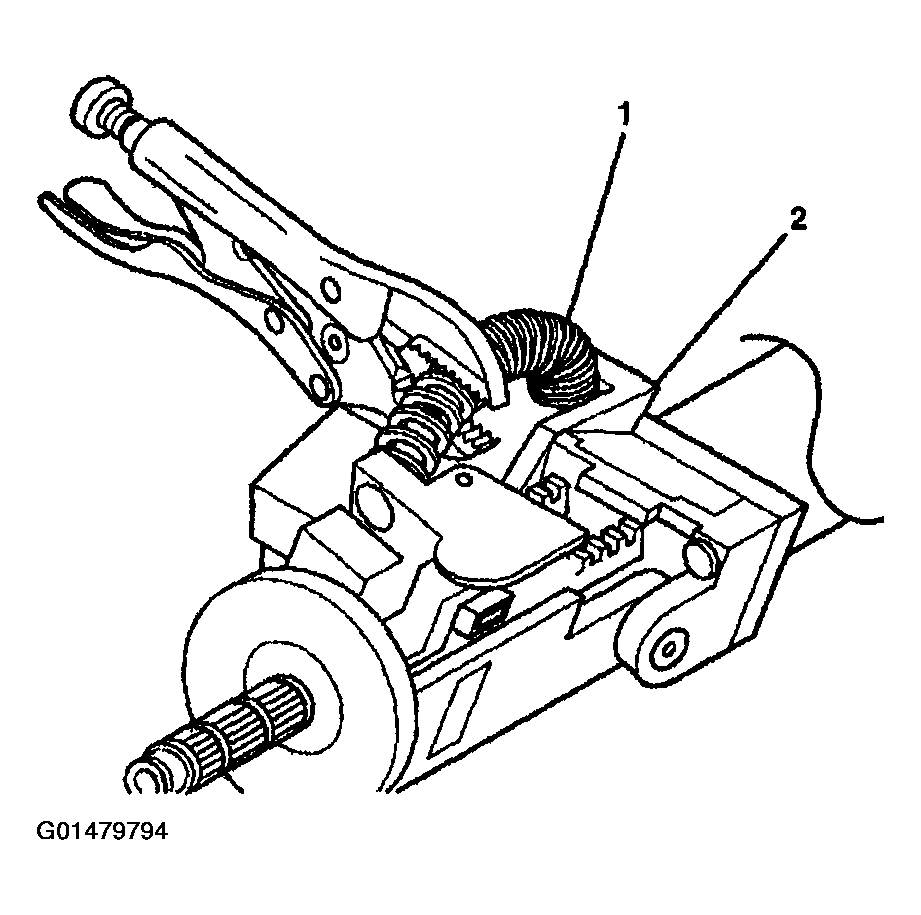

      Fig 3: Install Tilt Spring Onto Steering Column Tilt Head Assembly & Post Of Support Assembly
      G01479794Courtesy of GENERAL MOTORS CORP.
  4. Install the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .
  5. Enable the SIR system. Refer to ZONE 3 .
