Disassembled Views

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

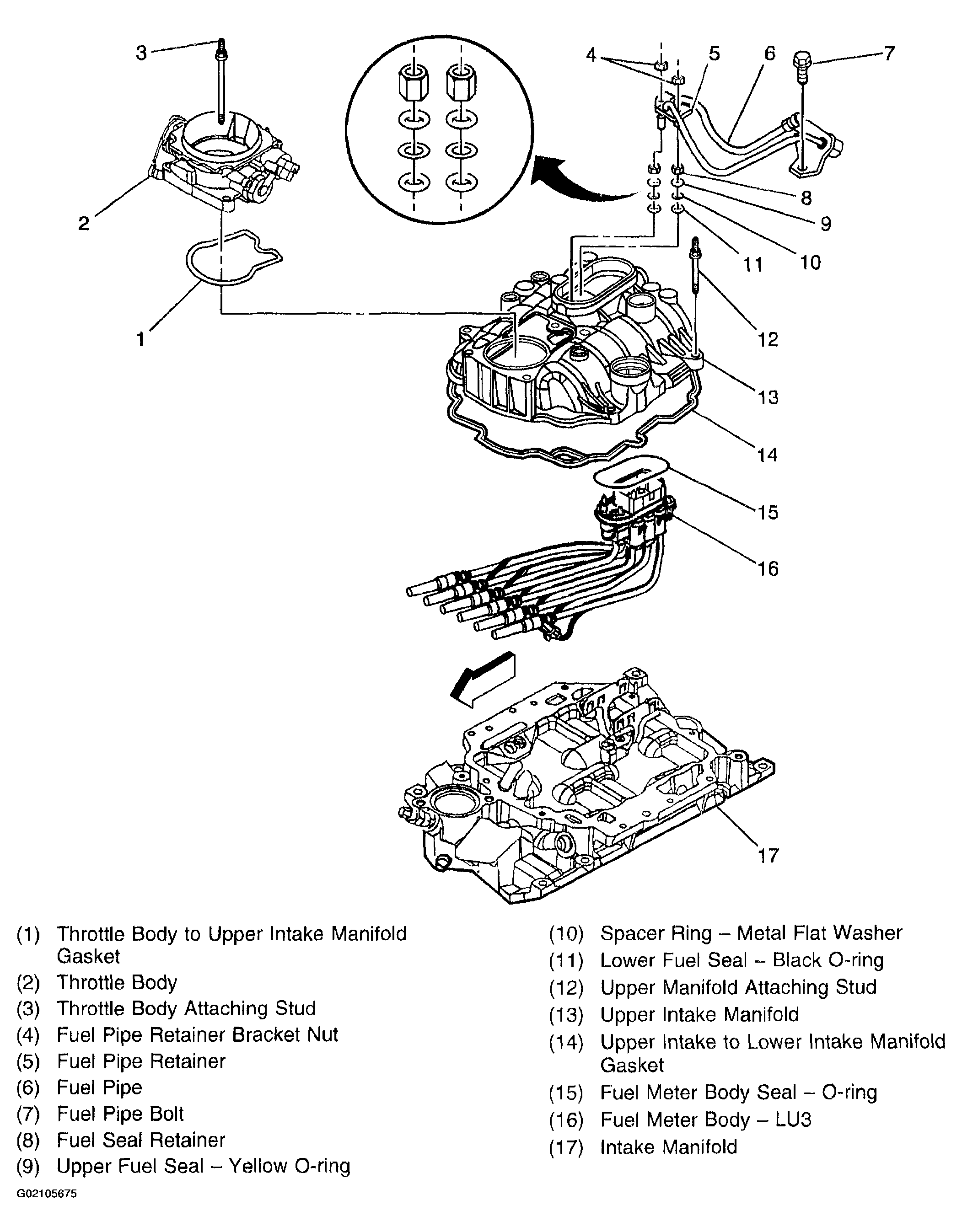

Fig 1: Upper & Lower Intake Manifold Disassembled View

G02105675

Courtesy of GENERAL MOTORS CORP.

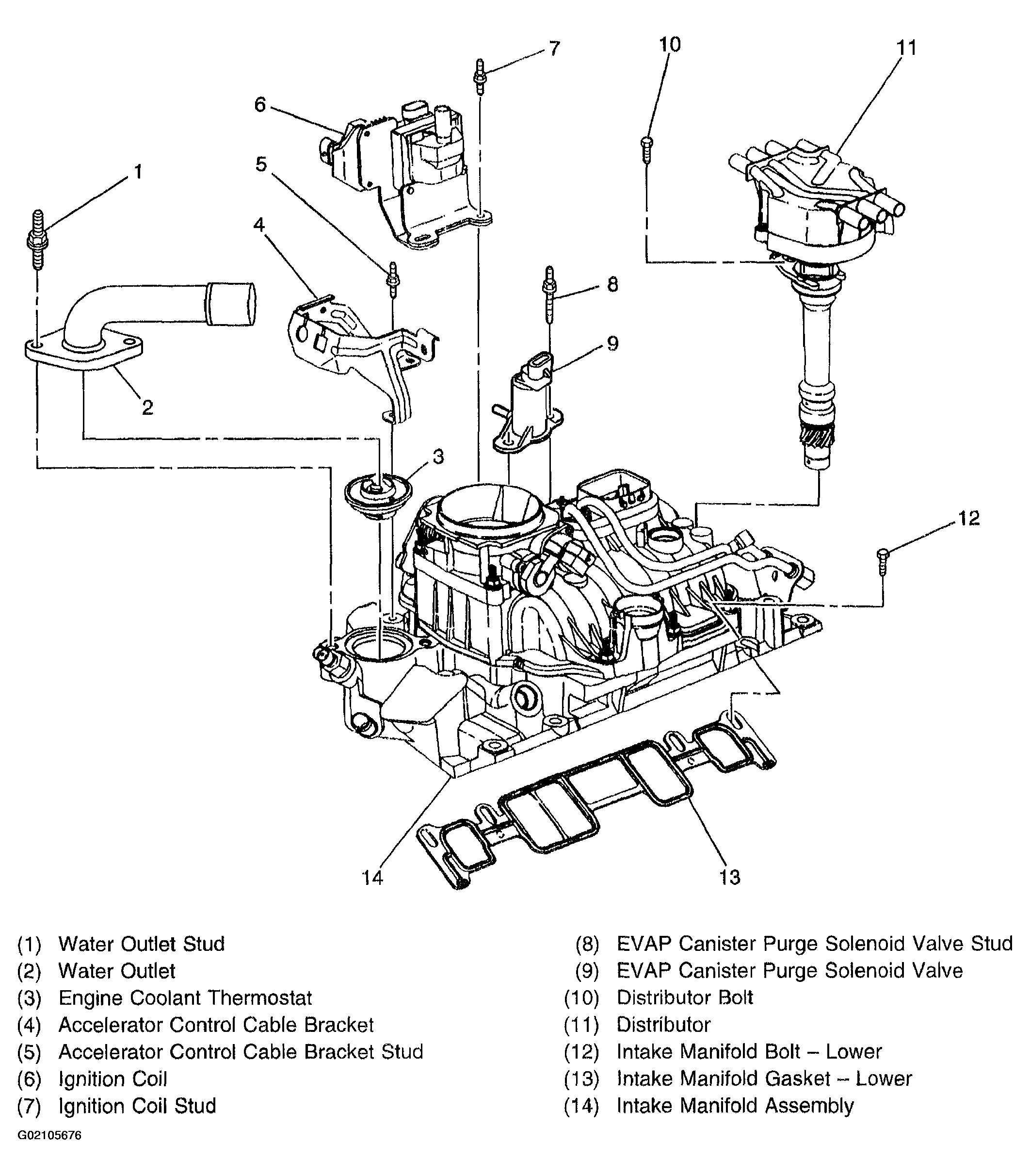

Fig 2: Upper Engine View 1 Disassembled View

G02105676

Courtesy of GENERAL MOTORS CORP.

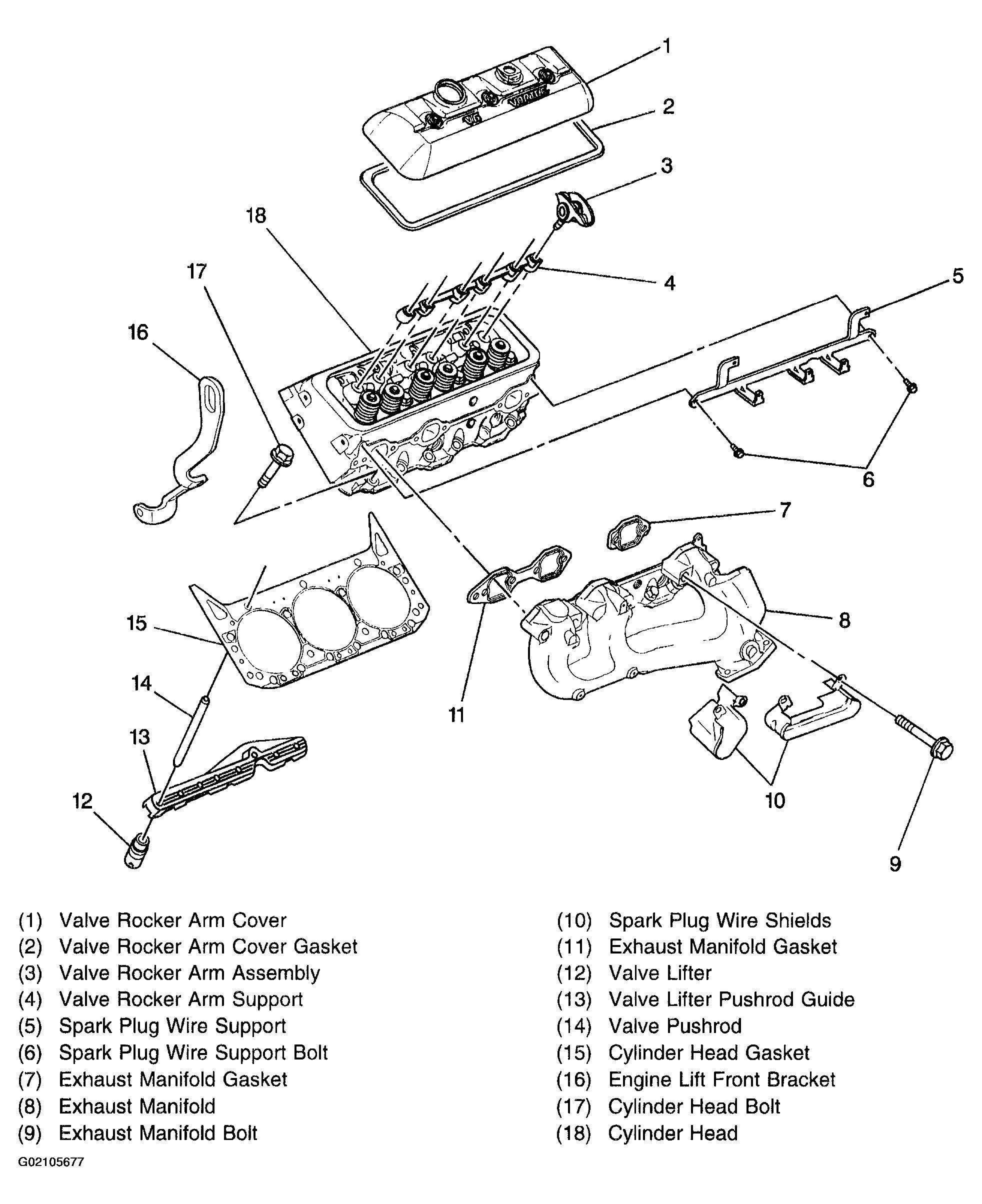

Fig 3: Upper Engine View 2 Disassembled View

G02105677

Courtesy of GENERAL MOTORS CORP.

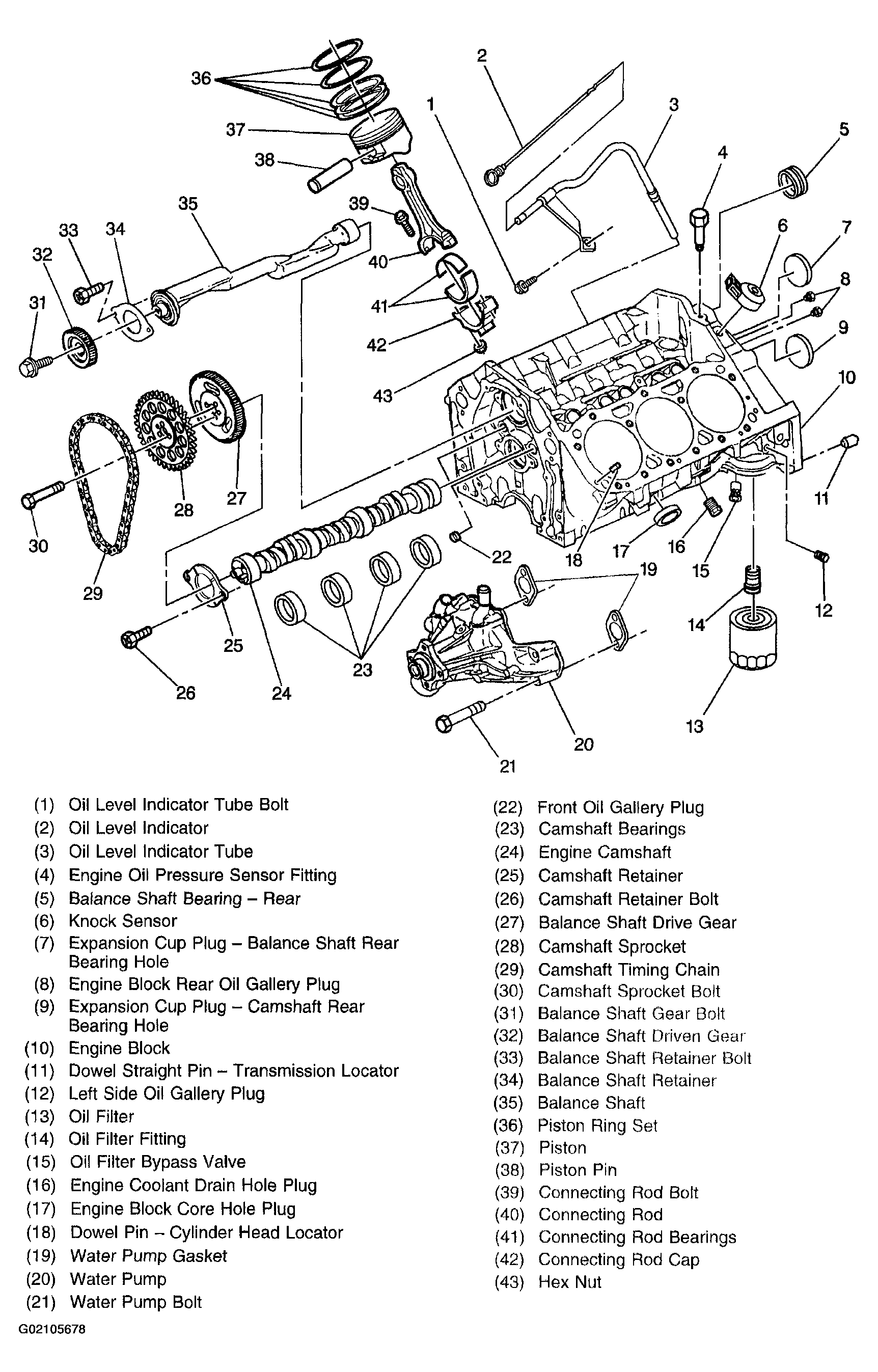

Fig 4: Lower Engine View 1 Disassembled View

G02105678

Courtesy of GENERAL MOTORS CORP.

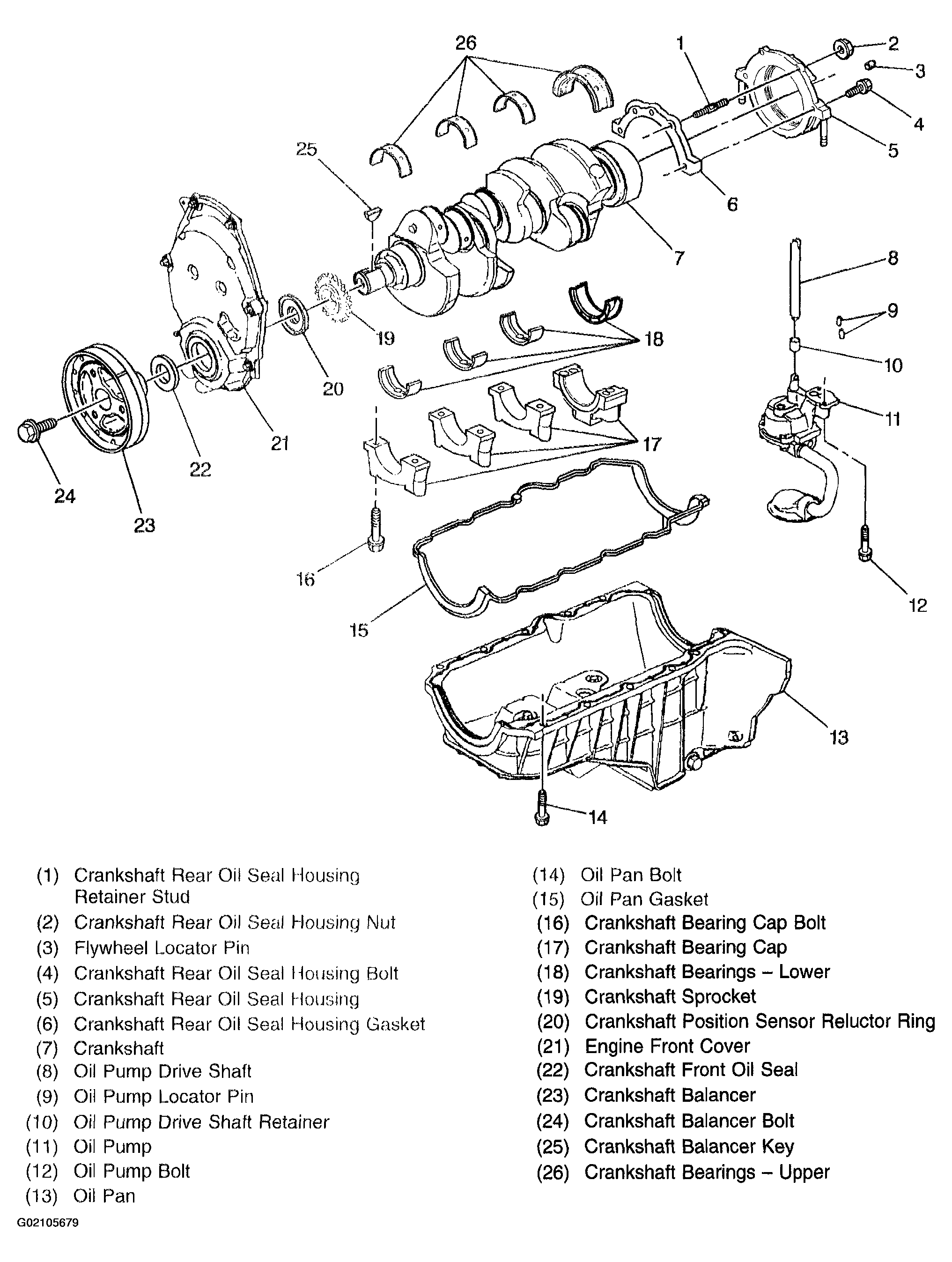

Fig 5: Lower Engine View 2 Disassembled View

G02105679

Courtesy of GENERAL MOTORS CORP.
