Fog Lamps Always On-Rear

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

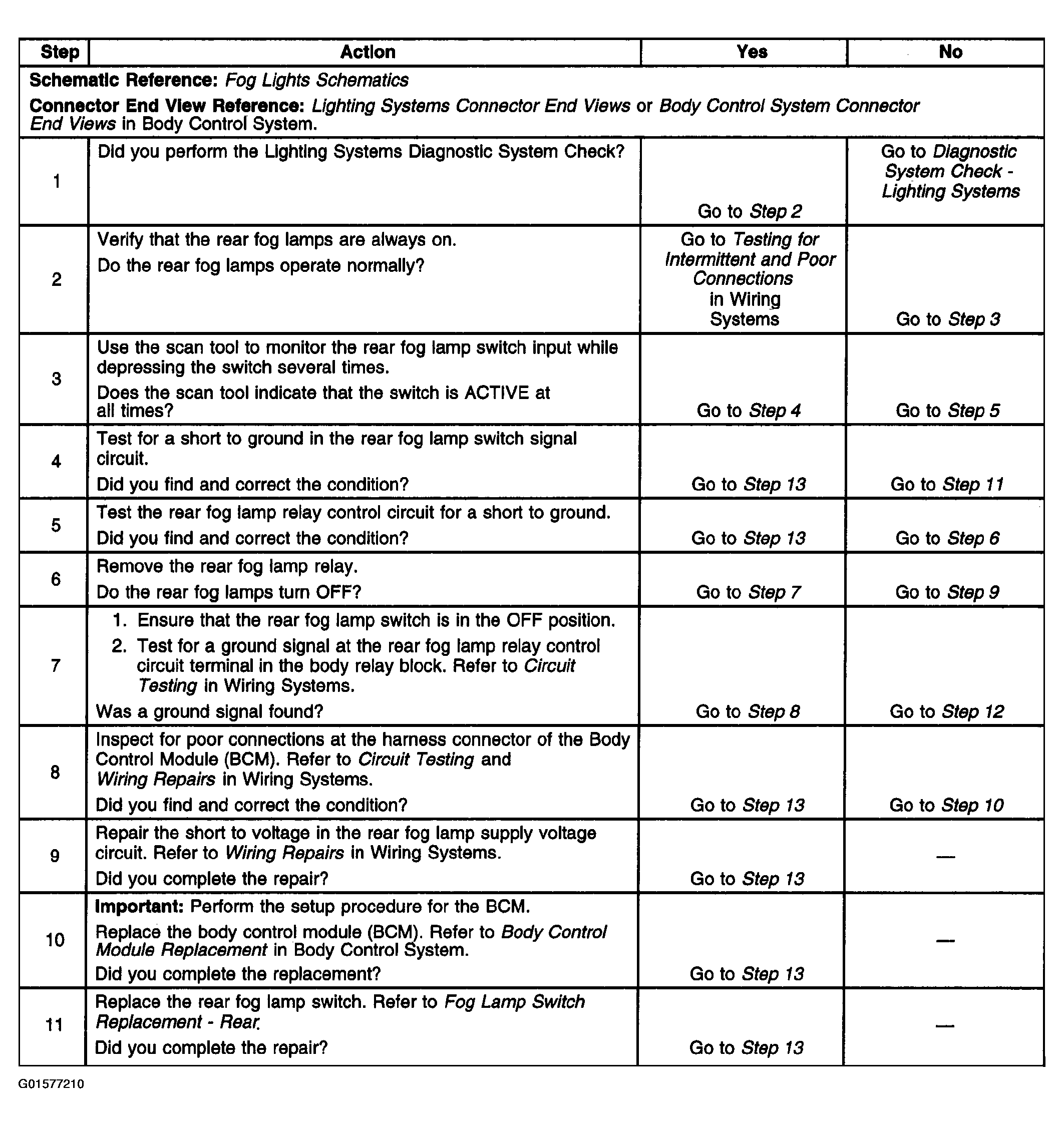

Fig 1: Fog Lamps Always On-Rear (Steps 1 - 11)

Courtesy of GENERAL MOTORS CORP.

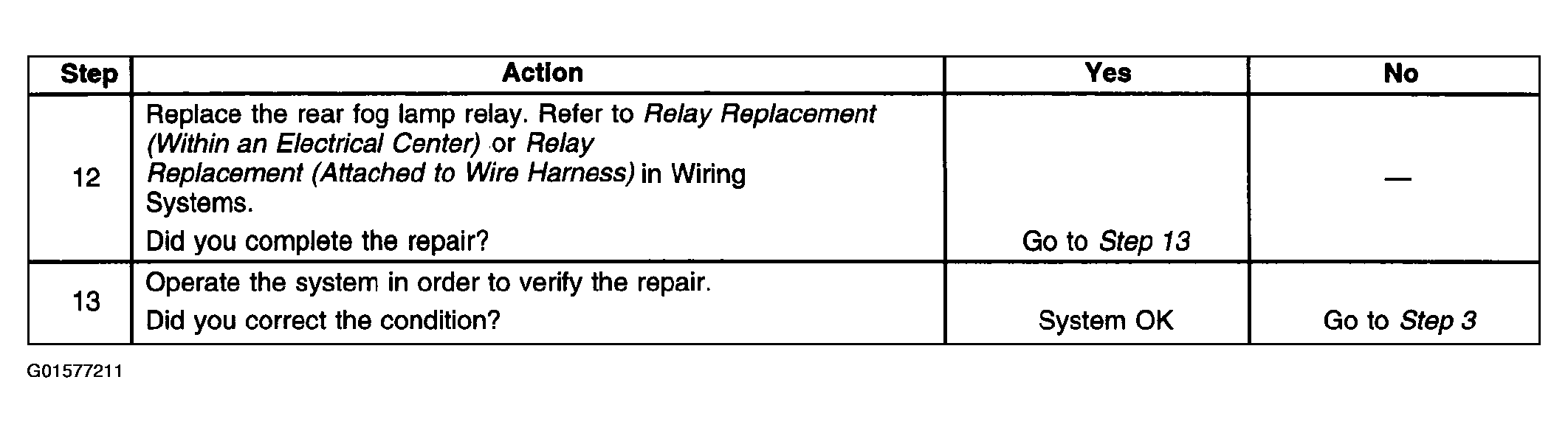

Fig 2: Fog Lamps Always On-Rear (Steps 12 - 13)

Courtesy of GENERAL MOTORS CORP.
