Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb (1) into the socket.

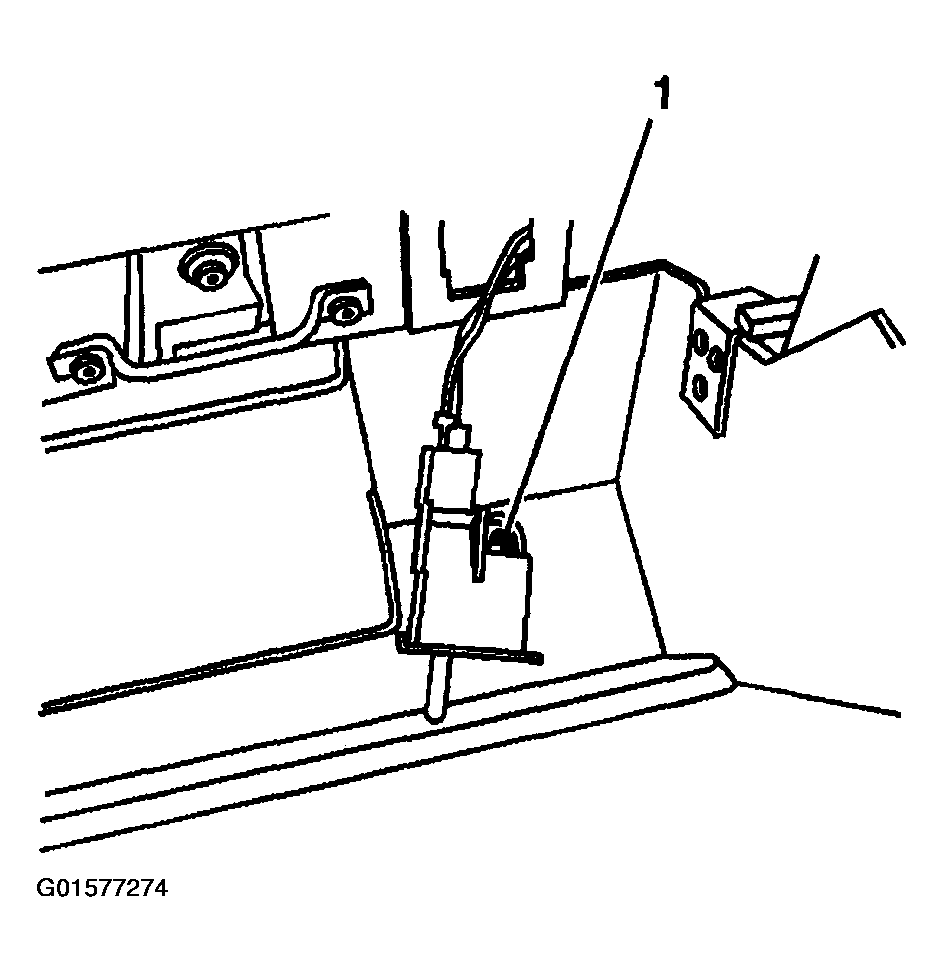

Fig 1: Installing Instrument Panel (I/P) Compartment Lamp Bulb Into The Socket
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector.
Install the switch until the tabs (1) click in place.
Close the compartment door.

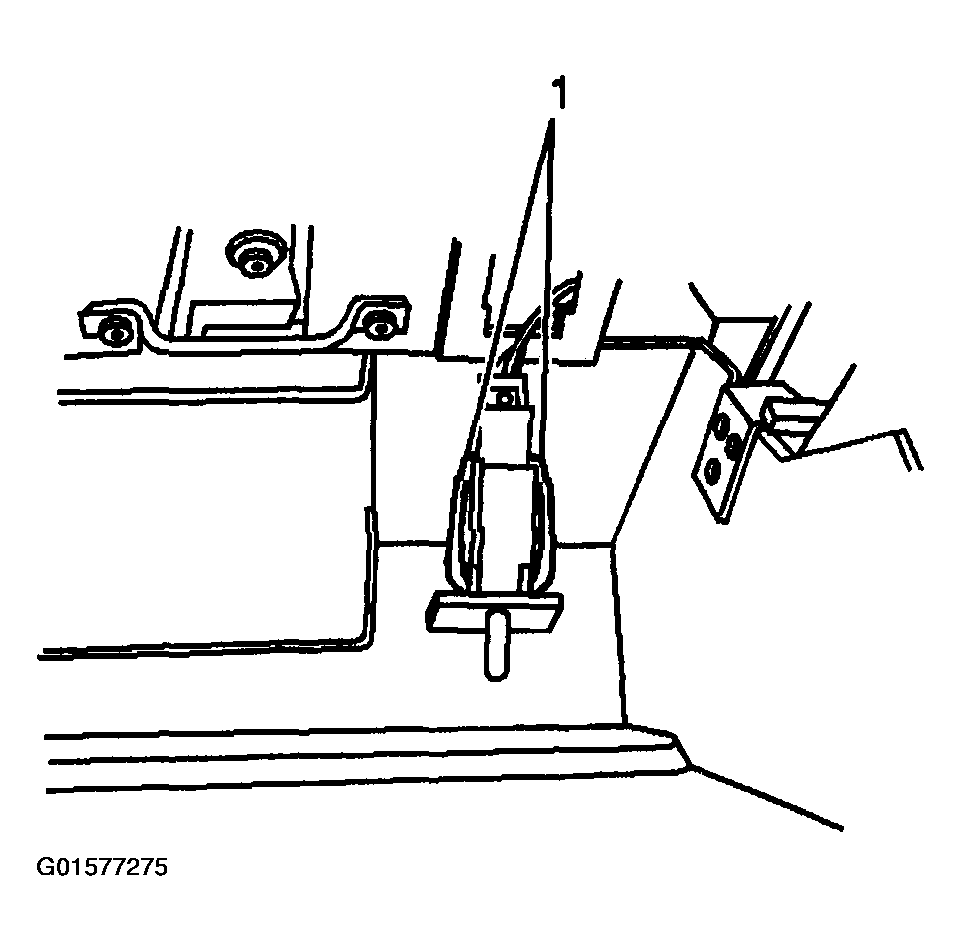

Fig 2: Connecting Instrument Panel (I/P) Compartment Lamp Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
