Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Connect the hood release cable end to the latch.

Fig 1: Connecting Hood Release Cable End To Latch
Courtesy of GENERAL MOTORS CORP.
Install the hood latch (1) to the radiator support (3).
Install the hood latch bolts (2) loosely.
NOTE: Refer to FASTENER NOTICE .
Adjust the hood latch height so that when the hood is closed, the hood is held securely against the front hood bumpers.
Raise the hood.
Tighten

Tighten the hood latch bolts to 9 N.m (80 lb in).
Adjust the front hood bumpers so that the top of the hood is flush with the fenders.
Install the upper radiator support baffle. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT-UPPER .

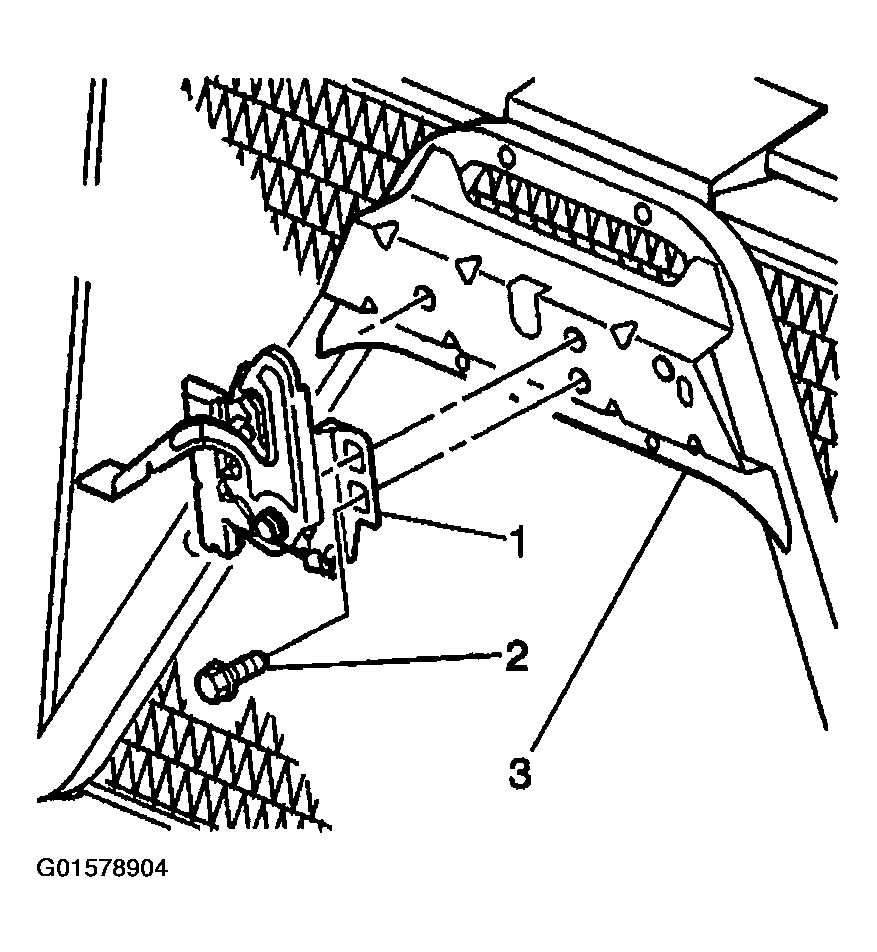

Fig 2: Installing Hood Latch
Courtesy of GENERAL MOTORS CORP.
