Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

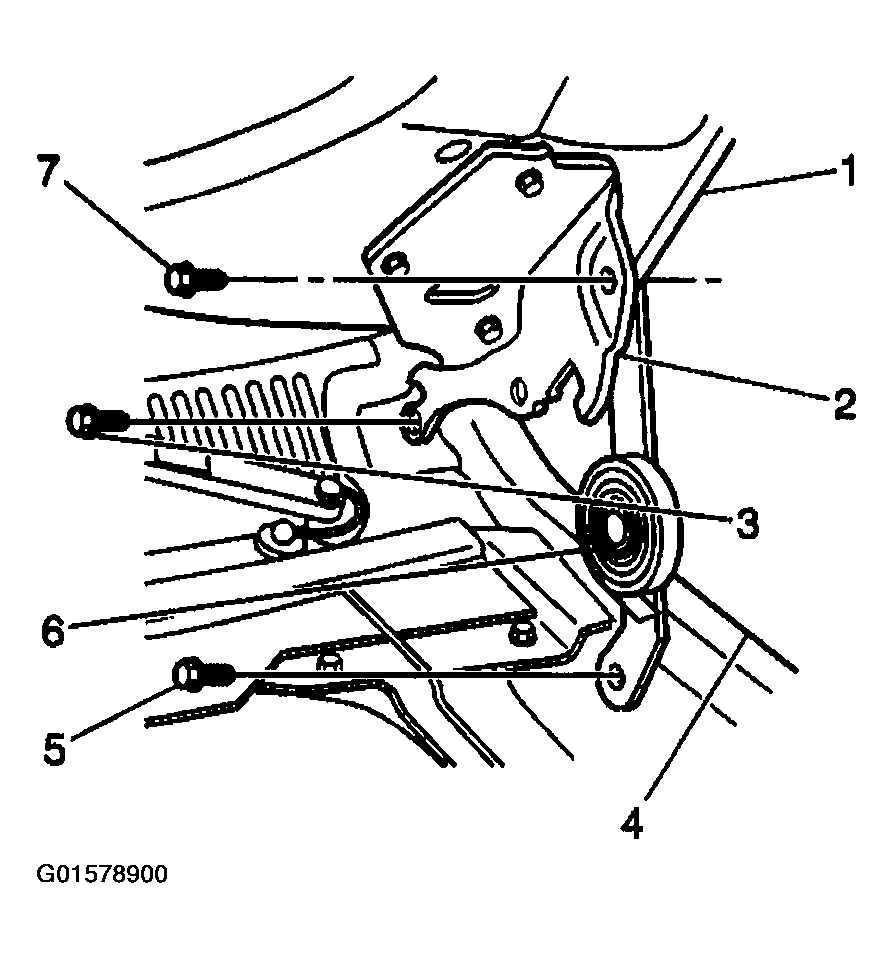

- Position the hood link assembly (6) to the vehicle.NOTE: Refer to FASTENER NOTICE .
- Install the bolt (5) holding the hood link assembly to the fender.
Tighten
Tighten the link assembly to the fender bolt to 25 N.m (18 lb ft).
- Install the fender bolt (7) holding the hood link assembly to the hood hinge.
Tighten
Tighten the hinge bolts to 25 N.m (18 lb ft).
