Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

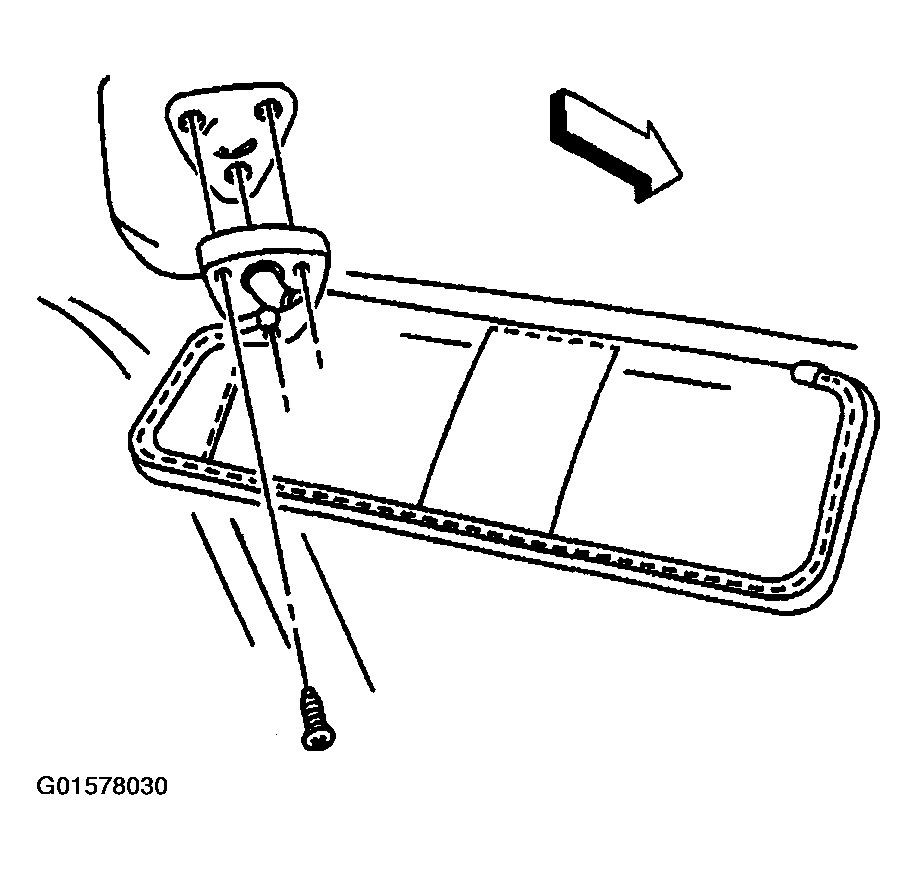

- Connect the electrical connector, if equipped.
- Install the sunshade.NOTE: Refer to FASTENER NOTICE .
- Install the sunshade screws.
Tighten
Tighten the screw to 2 N.m (18 lb in).
