Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise the rear seat.
Remove the nuts that retain the tool storage compartment to the mounting brackets.
Remove the tool storage compartment from the vehicle.

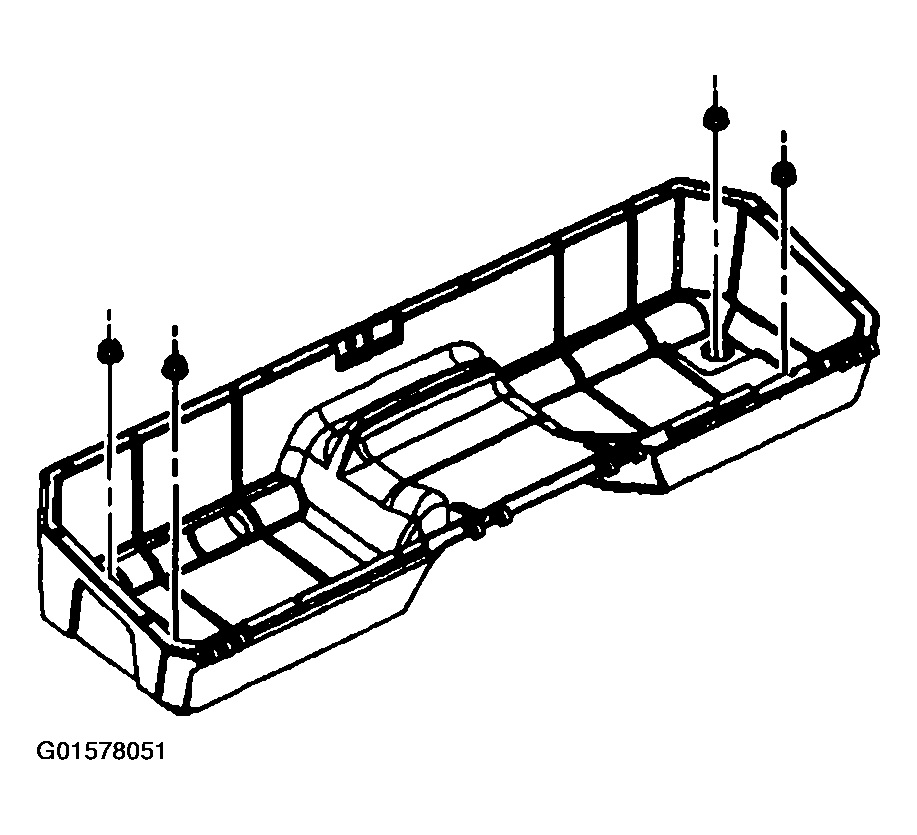

Fig 1: Tool Storage Compartment (PRO)
Courtesy of GENERAL MOTORS CORP.
