Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hinge pillar panel.
  2. Install the door-sill plate. Refer to Door Sill Plate Replacement-Front   .

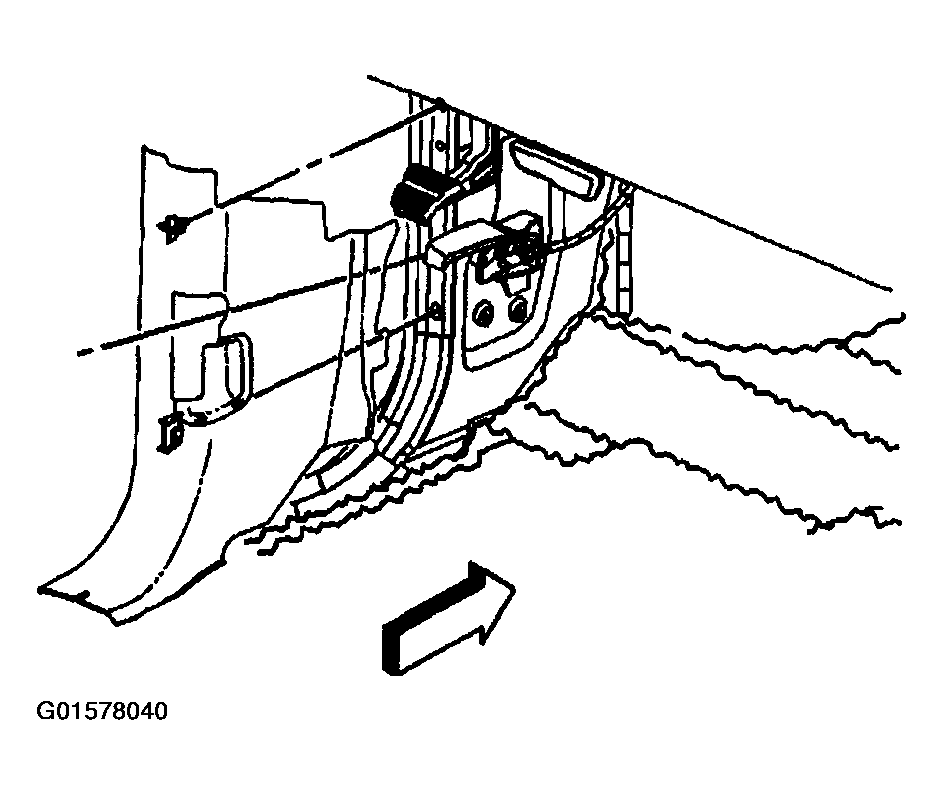

    Fig 1: Hinge Pillar Trim Panel
    G01578040Courtesy of GENERAL MOTORS CORP.
