Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the coat hook, if required. Refer to Coat Hook Replacement .
Remove the rear window lower molding. Refer to Molding Replacement-Rear Window Lower .
Remove the quarter panel trim screws.
Remove the lower seat belt anchor bolt in order to guide the seat belt through the trim panel.
Remove the quarter panel.

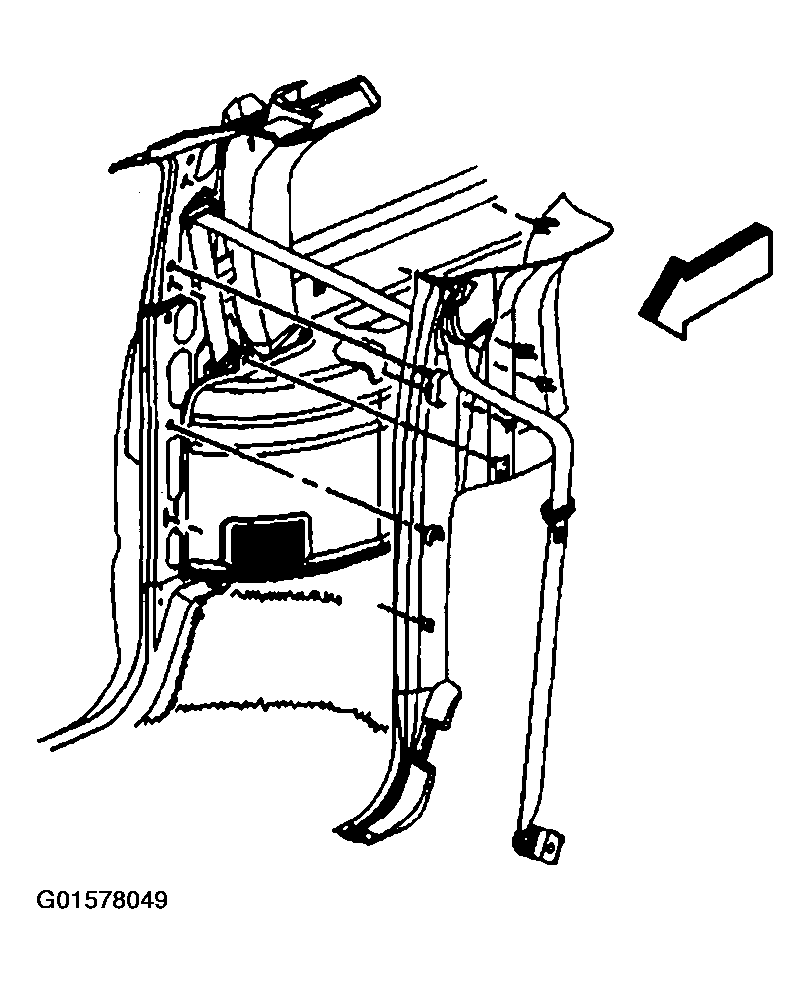

Fig 1: Rear Quarter Trim Panel (Crew Cab)
Courtesy of GENERAL MOTORS CORP.
