Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the coat hook. Refer to Coat Hook Replacement   .
  2. Remove the jack and tool stowage.
  3. Remove the rear window lower molding. Refer to Molding Replacement-Rear Window Lower   .
  4. Remove the quarter panel trim screws.
  5. Remove the rear screw from the sill trim plate.
  6. Remove the quarter panel.

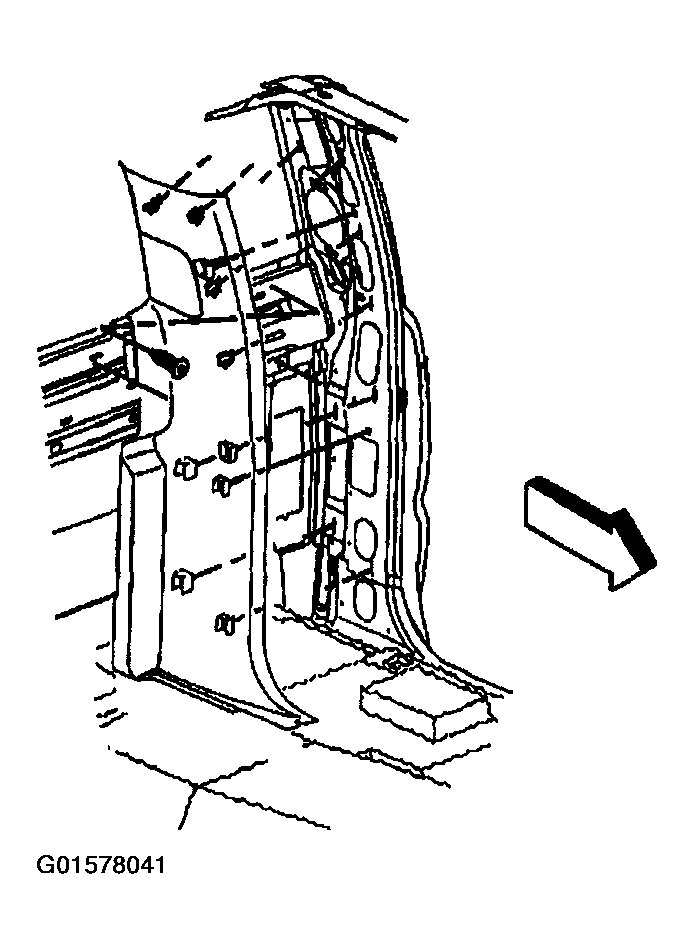

    Fig 1: Rear Quarter Trim Panel (Regular Cab)
    G01578041Courtesy of GENERAL MOTORS CORP.
