Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Cadillac Escalade EXT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the wire to the new coaxial cable.
  2. From the top of the IP pull the wire till the coaxial cable can be connected to the VCU.
  3. Remove the wire from the cable.

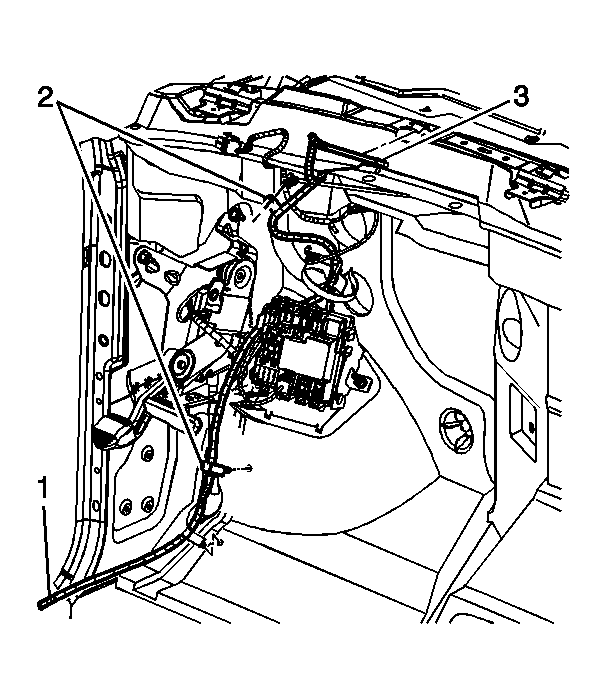

    4. Fig 1: Connecting Cable
    GM798124Courtesy of GENERAL MOTORS CORP.
  4. Connect the cable (3) to the VCU.
  5. Install the cable clips to underneath the IP.
  6. Lay the cable in the body harness conduit (1).
    Fig 2: Body Harness Conduit
    GM798122Courtesy of GENERAL MOTORS CORP.
  7. Install the cable clips (2) to the roof and pillar.
  8. Connect the cable connector to the antenna inner coupling (1).
    Fig 3: Cable Clips
    GM798120Courtesy of GENERAL MOTORS CORP.
  9. Install the hinge pillar trim moldings. Refer to TRIM PANEL REPLACEMENT - HINGE PILLAR .
  10. Install the driver's side door sill plate. Refer to DOOR SILL PLATE REPLACEMENT - FRONT .
  11. Install the IP trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
  12. Install the headliner. Refer to HEADLINER REPLACEMENT .
