Component Locations

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

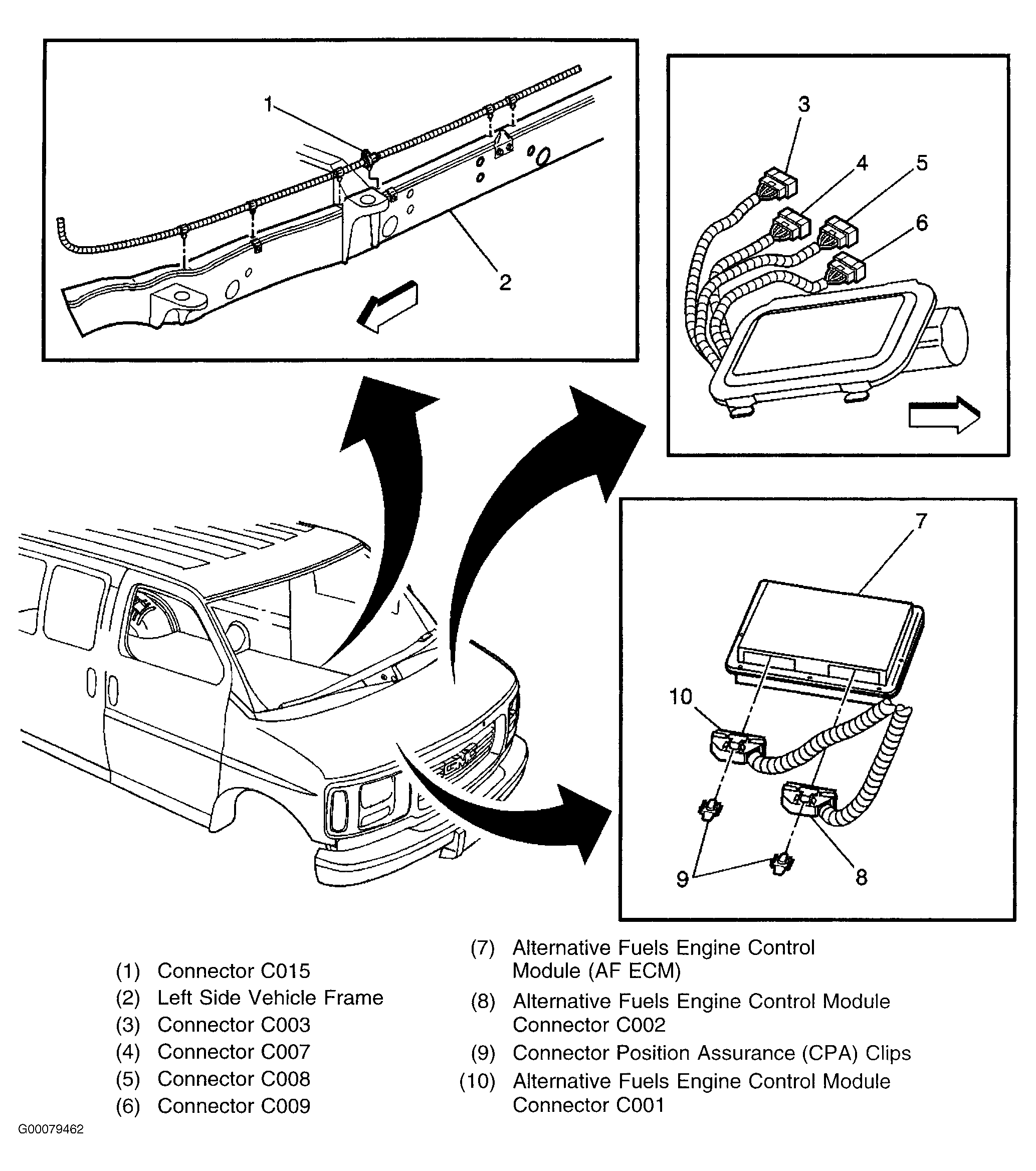

Fig 1: Locating AF ECM & Alternative Fuels Connectors

G00079462

Courtesy of GENERAL MOTORS CORP.

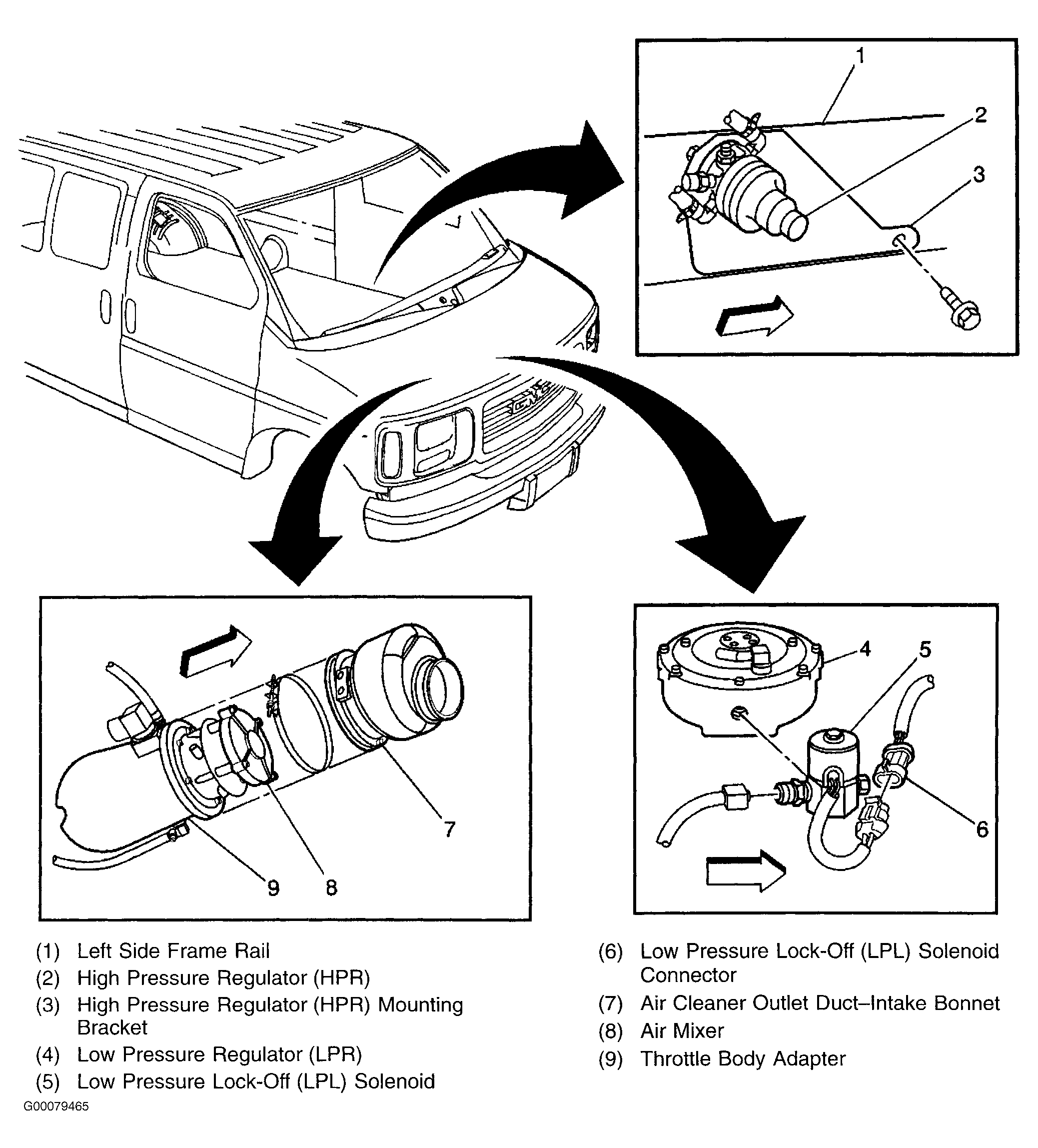

Fig 2: Locating Air Mixer, High Pressure Regulator, Low Pressure Lock-Off Solenoid & Low Pressure Regulator

G00079465

Courtesy of GENERAL MOTORS CORP.

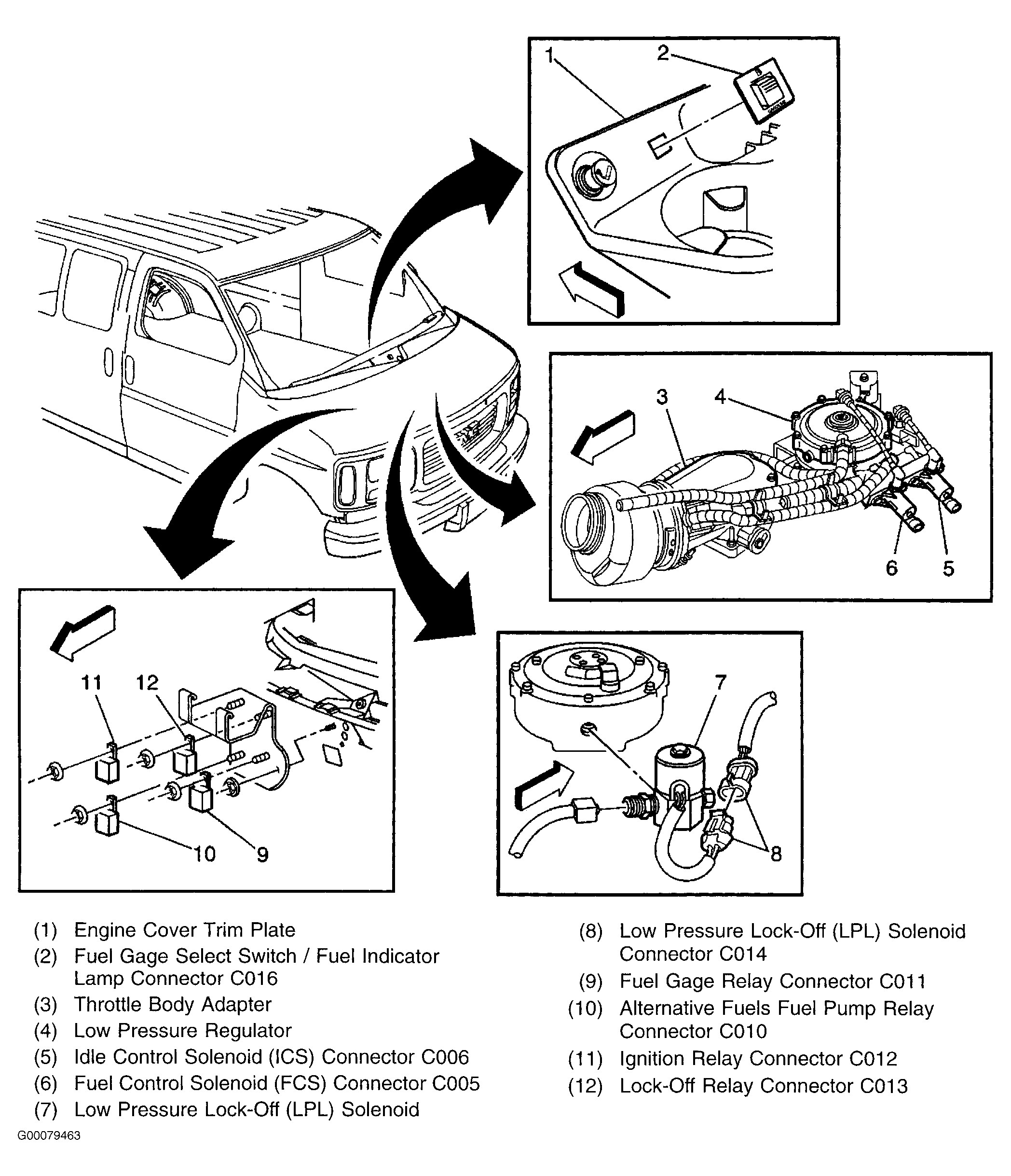

Fig 3: Locating Alternative Fuels Relays, Fuel Control Solenoid, Fuel Gauge Select Switch, Idle Control Solenoid, Low Pressure Lock-Off Solenoid & Low Pressure Regulator

G00079463

Courtesy of GENERAL MOTORS CORP.

Fig 4: Locating CKP & Knock Sensors

G00140536

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating ECT Sensor & EGR Valve

G00140539

Courtesy of GENERAL MOTORS CORP.

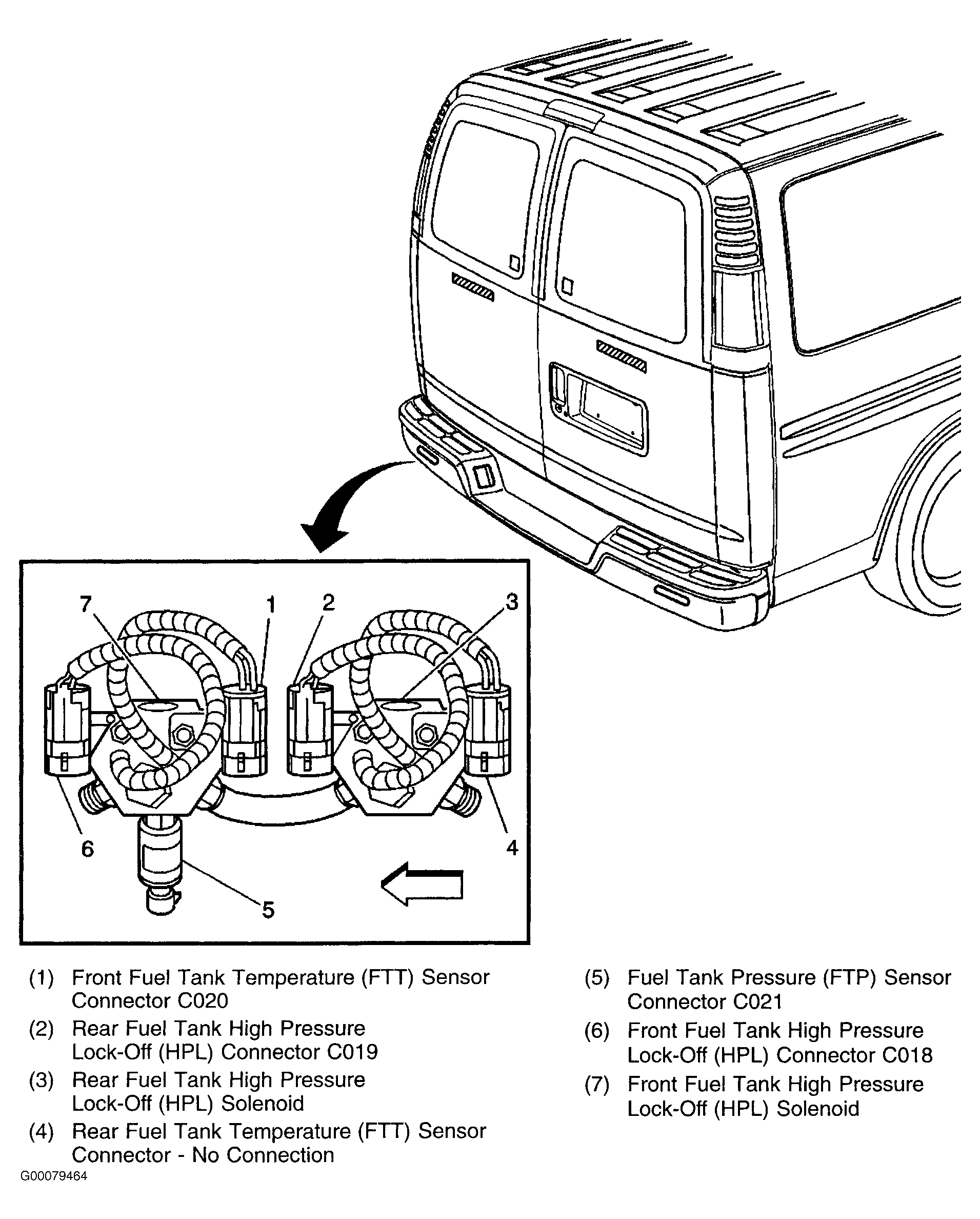

Fig 6: Locating Fuel Tank High Pressure Lock-Off Solenoids, Fuel Tank Pressure Sensor & Fuel Tank Temperature Sensors

G00079464

Courtesy of GENERAL MOTORS CORP.

Fig 7: Locating Heated Oxygen Sensors (Heavy Duty)

G00140540

Courtesy of GENERAL MOTORS CORP.

Fig 8: Locating IAT & MAF Sensors

G00140505

Courtesy of GENERAL MOTORS CORP.
