Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the lower ball joint (2) to the vehicle.

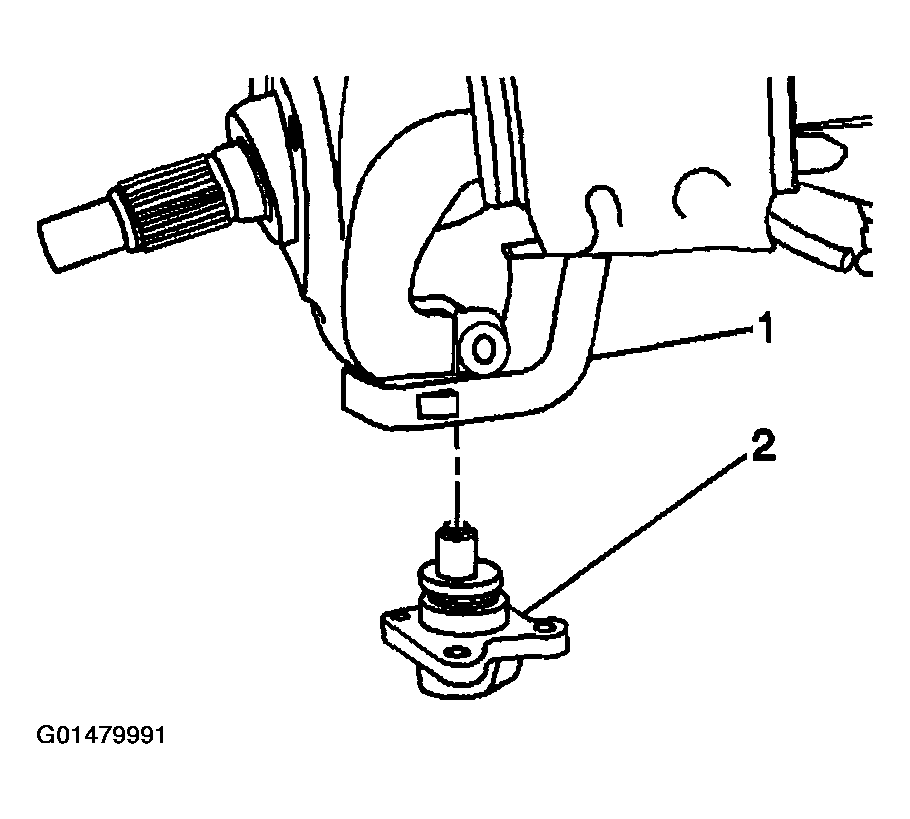

Fig 1: Lower Ball Joint
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the bolts (2) retaining the lower ball joint (3) to the steering knuckle.
Tighten

Tighten the bolts to 110 N.m (81 lb ft).
Install the lower ball joint pinch bolt (1).
Tighten

Tighten the bolt to 230 N.m (169 lb ft).

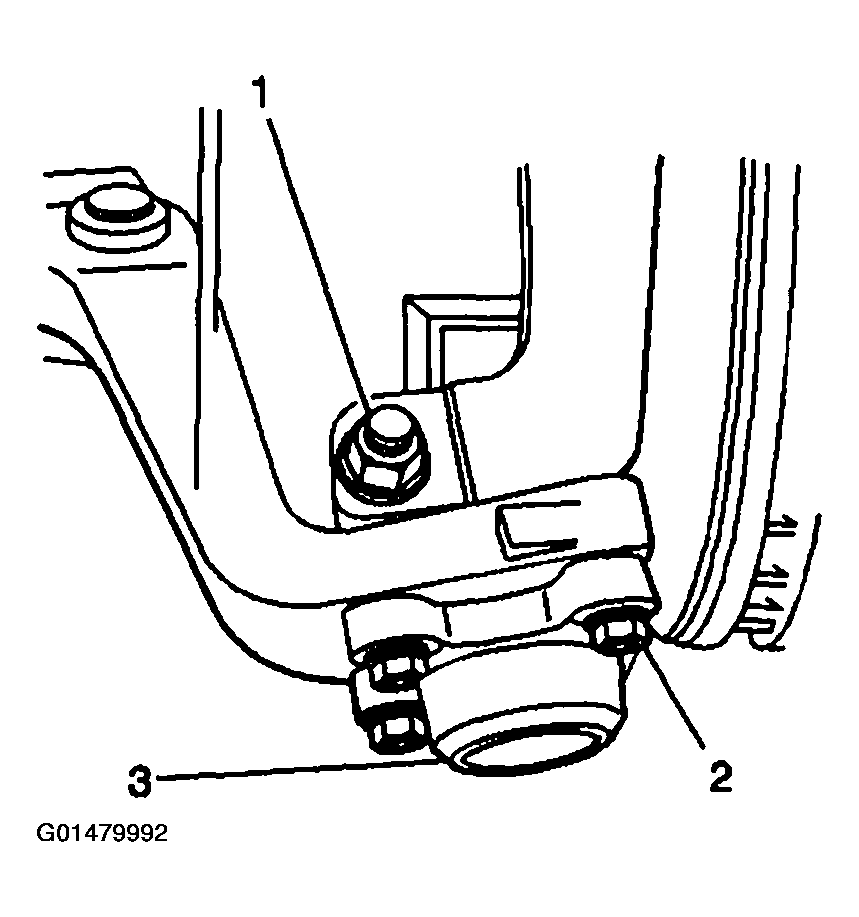

Fig 2: Lower Ball Joint & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the snap ring (2) to the lower ball joint.

Fig 3: Snap Ring
Courtesy of GENERAL MOTORS CORP.
Install the bolt (8) and nut (2) retaining the bracket to the axle.
Tighten

Tighten the retaining bolt and nut to 25 N.m (18 lb ft).
Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Lower the vehicle.
Perform a four wheel alignment. Refer to MEASURING WHEEL ALIGNMENT (WITH REAR WHEEL STEERING) or MEASURING WHEEL ALIGNMENT (WITHOUT REAR WHEEL STEERING) .

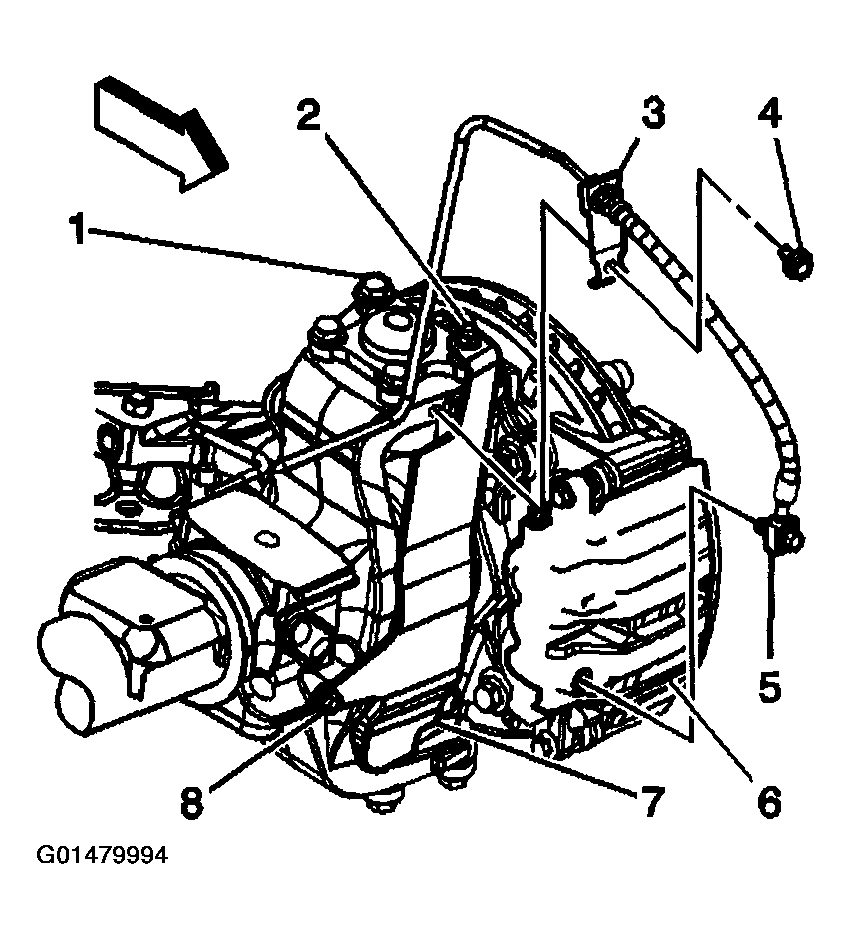

Fig 4: Retaining Bracket Nuts & Bolts
Courtesy of GENERAL MOTORS CORP.
