Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When lifting the vehicle do not allow the jack to touch the rear steering gear. If the jack touches the rear steering gear you may damage the gear or the rack and pinion boots. If the boots are damaged replace the rack and pinion boot.

Raise the vehicle. Refer to JACKING AND LIFTING .
Remove the steering gear protection shield (1) retaining bolts (3).

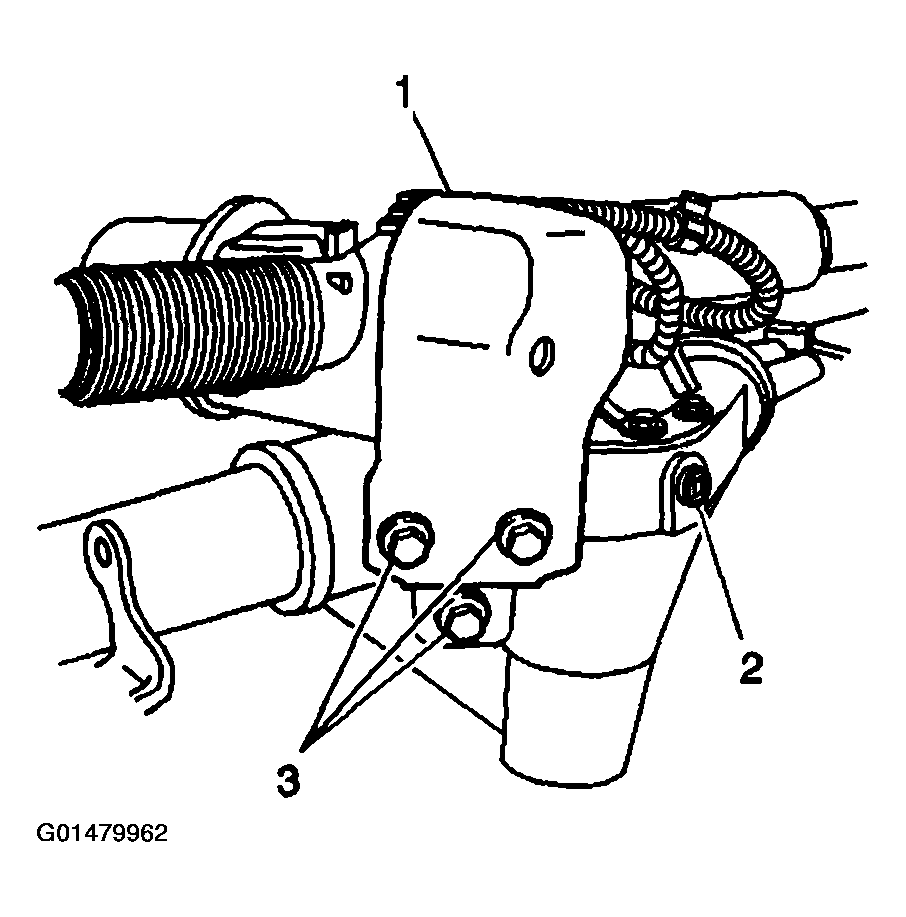

Fig 1: Steering Gear Protection Shield & Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector (1).

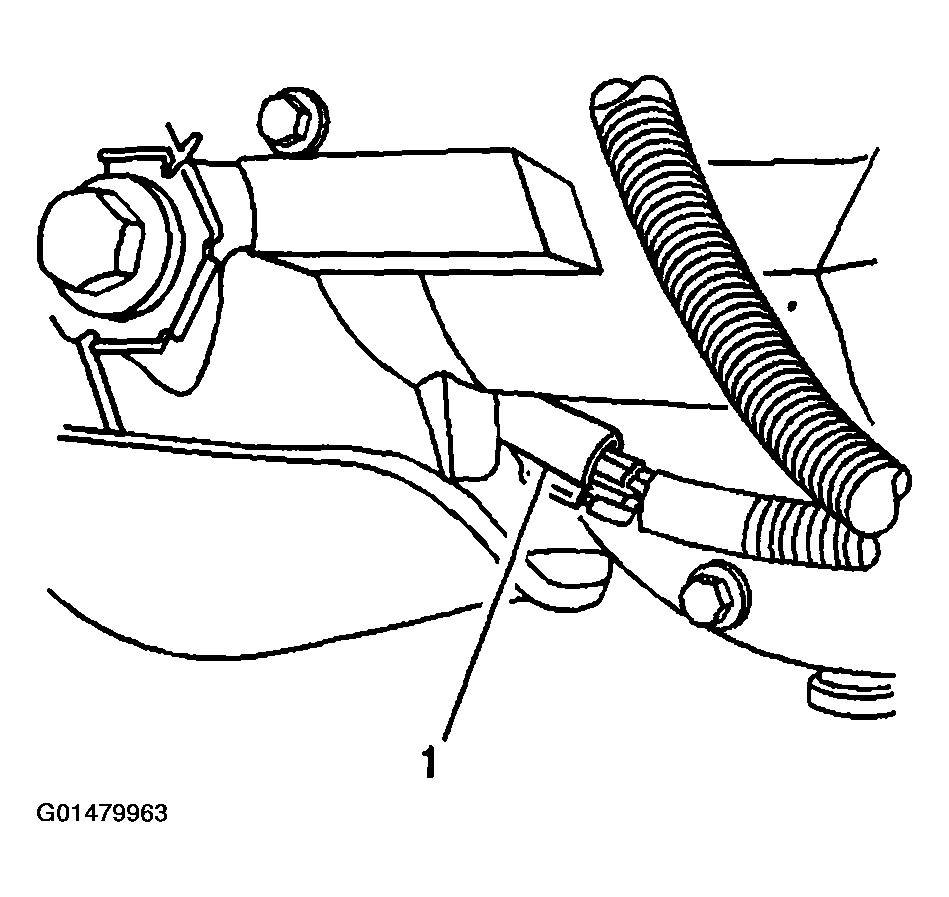

Fig 2: Electrical Connector
Courtesy of GENERAL MOTORS CORP.

NOTE: When removing the rear position cover from the steering gear be careful not to damage to the rear position sensor.
Remove the rear wheel position sensor cover (4) from the steering gear by prying on the cover using the slot.
Remove the rear wheel position sensor retaining bolts (3).
Important: Check the inner tie rod boot for wear or damage.
If the boots are damaged replace the steering gear actuator. Refer to Steering Gear Actuator and Cover Replacement .
Important: Maintain the sensor position. Do not turn the sensor.
Remove the rear wheel position sensor (2) from the steering gear.

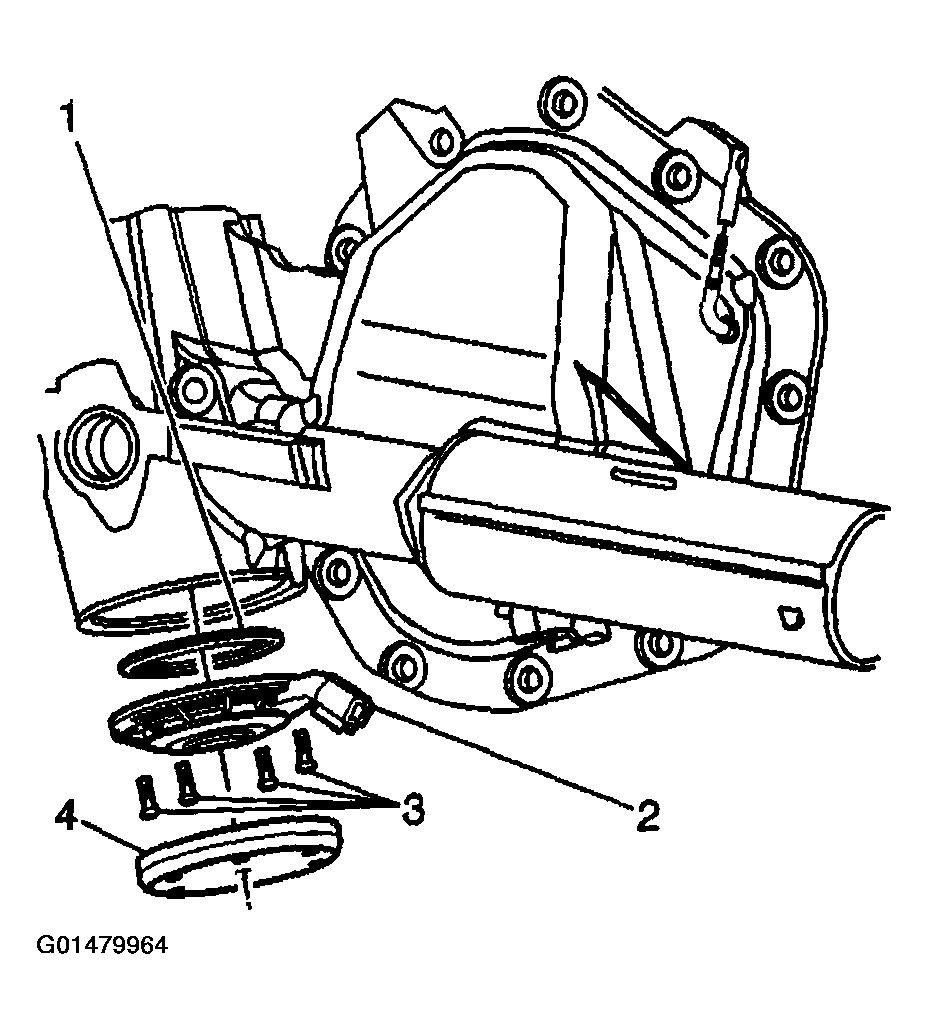

Fig 3: Rear Wheel Position Sensor Cover, Retaining Bolts & Sensor
Courtesy of GENERAL MOTORS CORP.
