Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the bracket (2) to the vehicle.
NOTE: Refer to FASTENER NOTICE .
Install the bolts retaining the bracket (2) to the frame.
Tighten

Tighten the bracket retaining bolts to 10 N.m (81 lb in).
Install the rear wheel steering control module to the vehicle. Refer to Rear Wheel Steering Control Module Replacement .

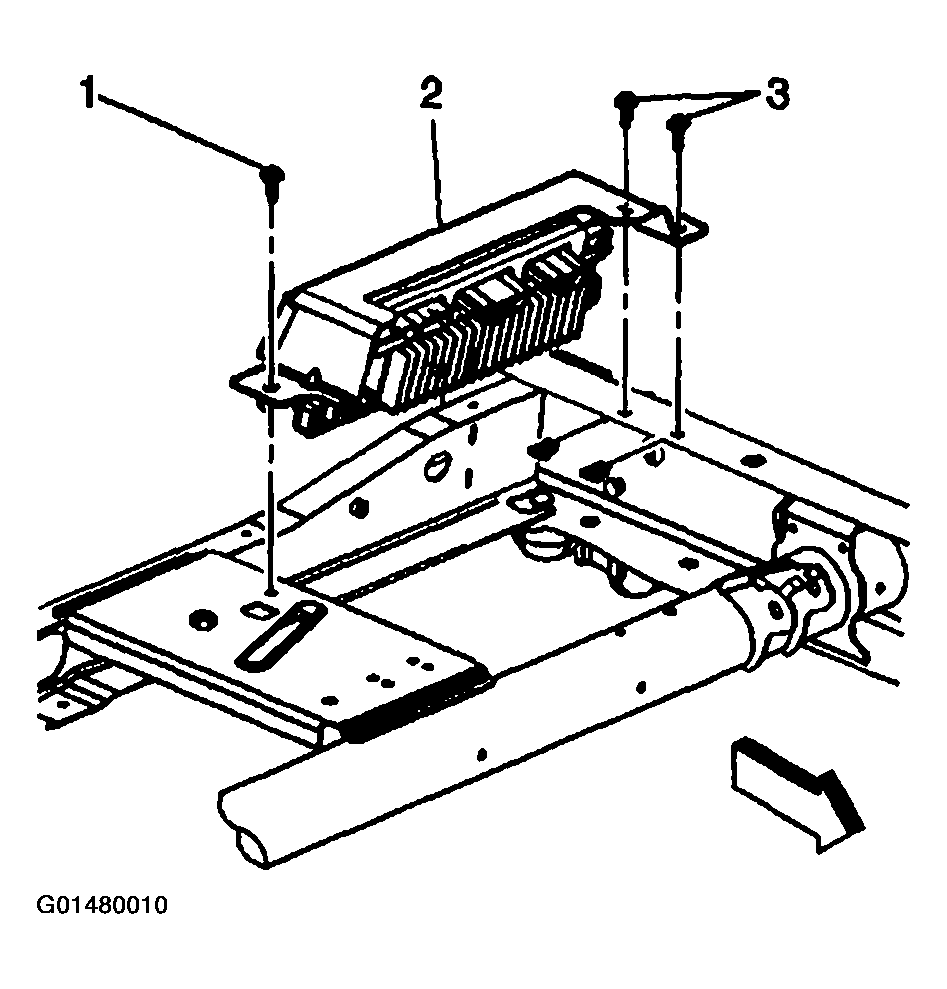

Fig 1: Bracket & Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
