Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wheel steering control module from the bracket. Refer to Rear Wheel Steering Control Module Replacement .
  2. Remove the bolts retaining the bracket (2) to the frame.
  3. Remove the bracket (2) from the vehicle.

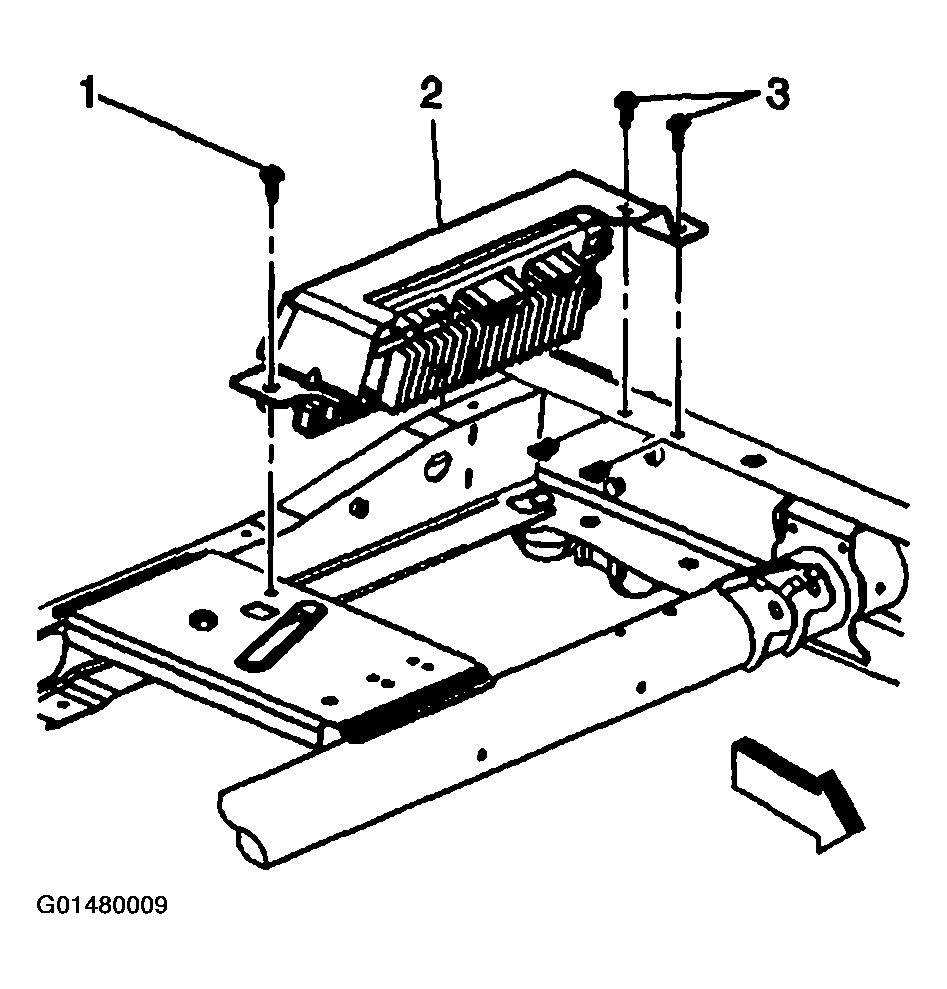

    Fig 1: Bracket & Retaining Bolts
    G01480009Courtesy of GENERAL MOTORS CORP.
