Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important: Make sure the O-ring is seated in the O-ring groove.

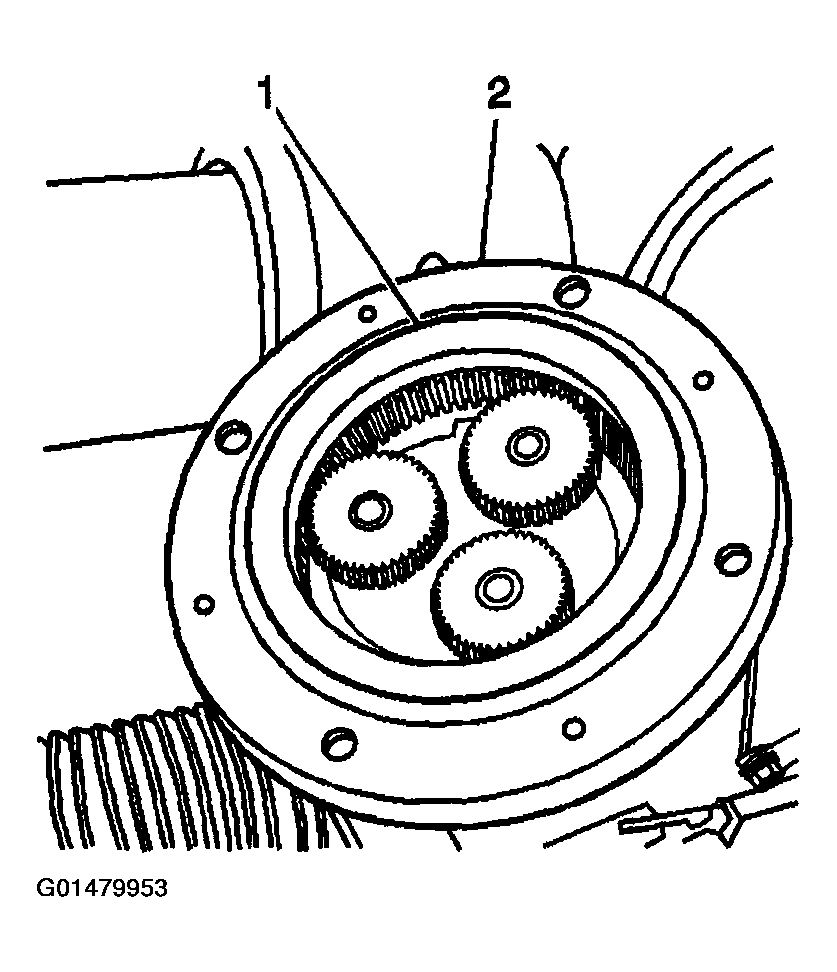

Install the O-ring seal (1) to the steering gear.

Fig 1: Steering Gear O-Ring Seal
Courtesy of GENERAL MOTORS CORP.
Install the steering gear motor (2) to the vehicle.
NOTE: Refer to FASTENER NOTICE .

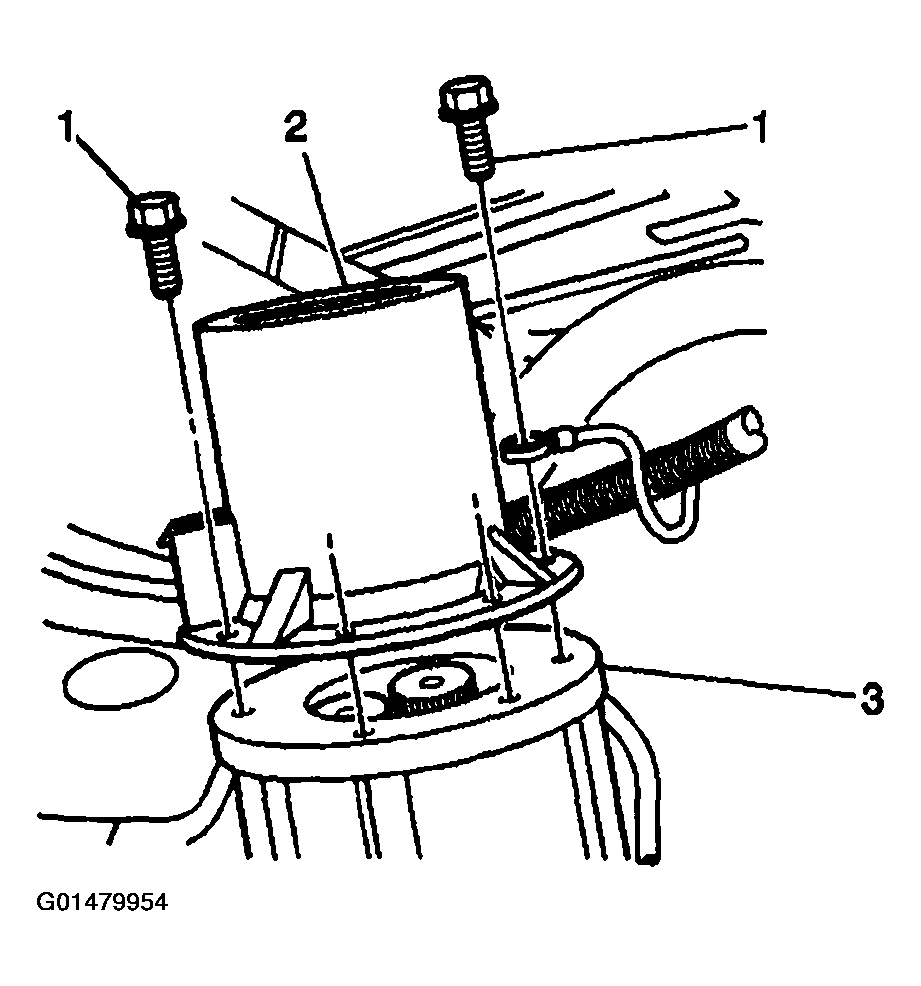

Install the bolts (1) retaining the steering gear motor (2) to the steering gear.
Tighten

Tighten the 6 mm (0.24 in) steering gear motor retaining bolts to 10 N.m (89 lb in).

Tighten

Tighten the 4 mm (0.16 in) steering gear motor retaining bolts to 4 N.m (35 lb in).

Fig 2: Steering Gear Motor & Bolts
Courtesy of GENERAL MOTORS CORP.

Important: Route the wiring harness in the same location as the wiring was removed.

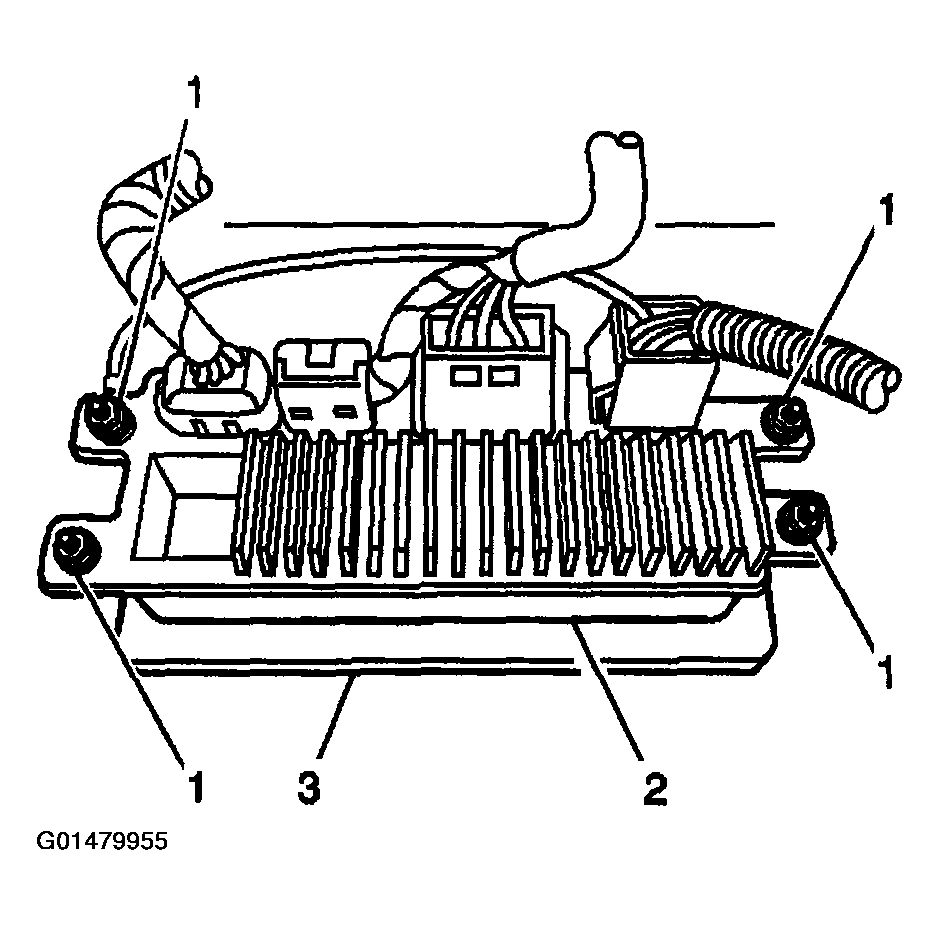

Connect the electrical connectors to the control module (2).

Fig 3: Control Module
Courtesy of GENERAL MOTORS CORP.

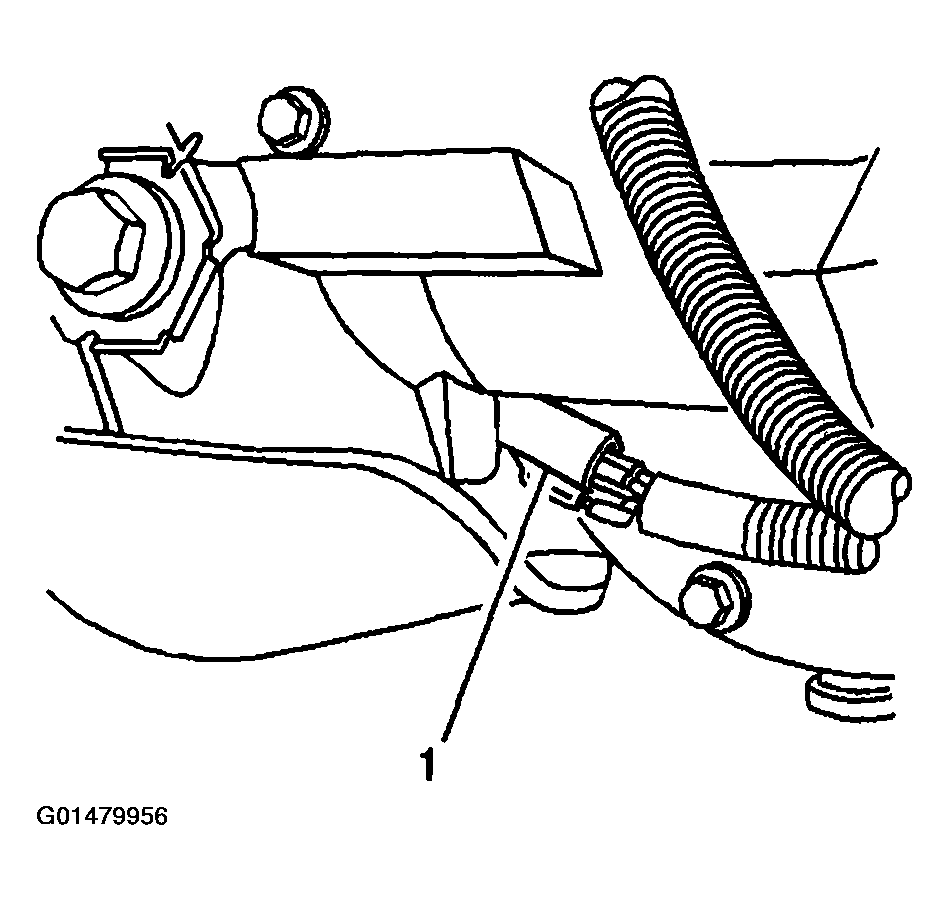

Connect the electrical connector (1) to the rear position sensor.
Connect the wire harness retaining clips.

Fig 4: Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the spare tire to the vehicle.
Lower the vehicle.

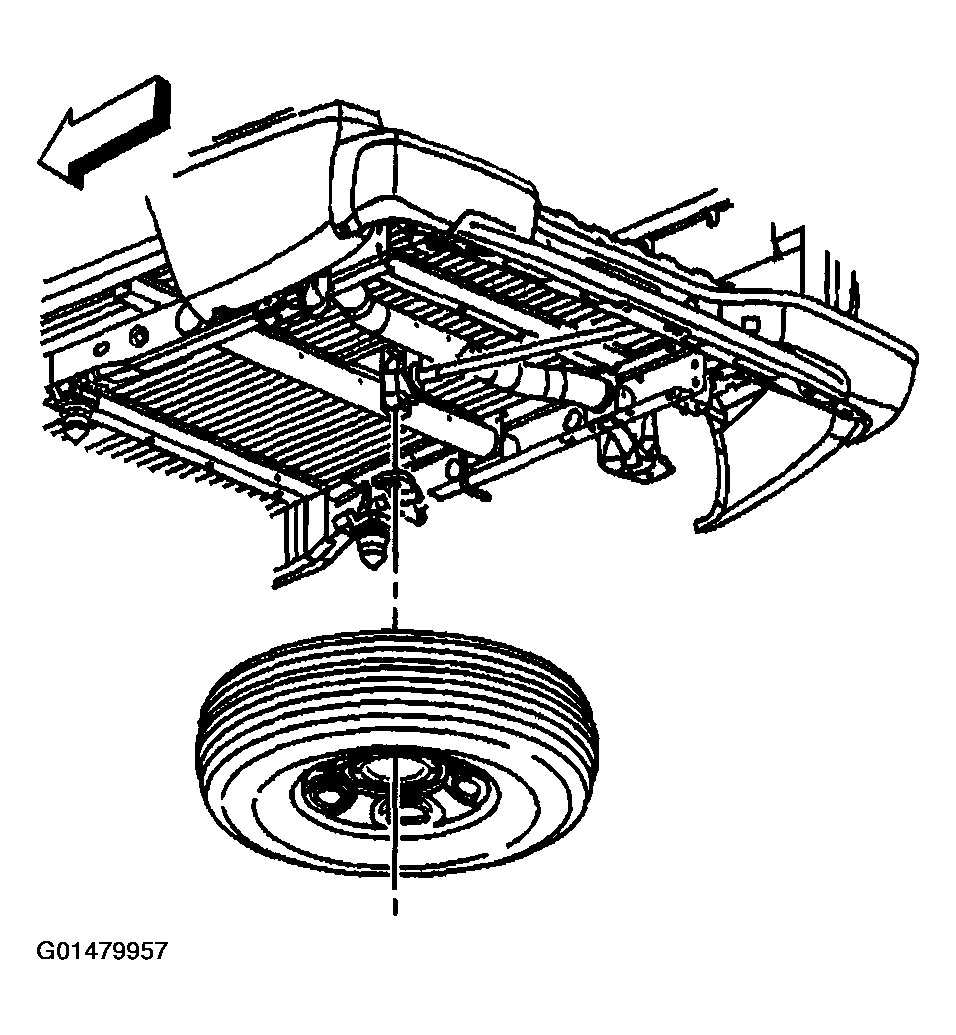

Fig 5: Installing Spare Tire
Courtesy of GENERAL MOTORS CORP.
