Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

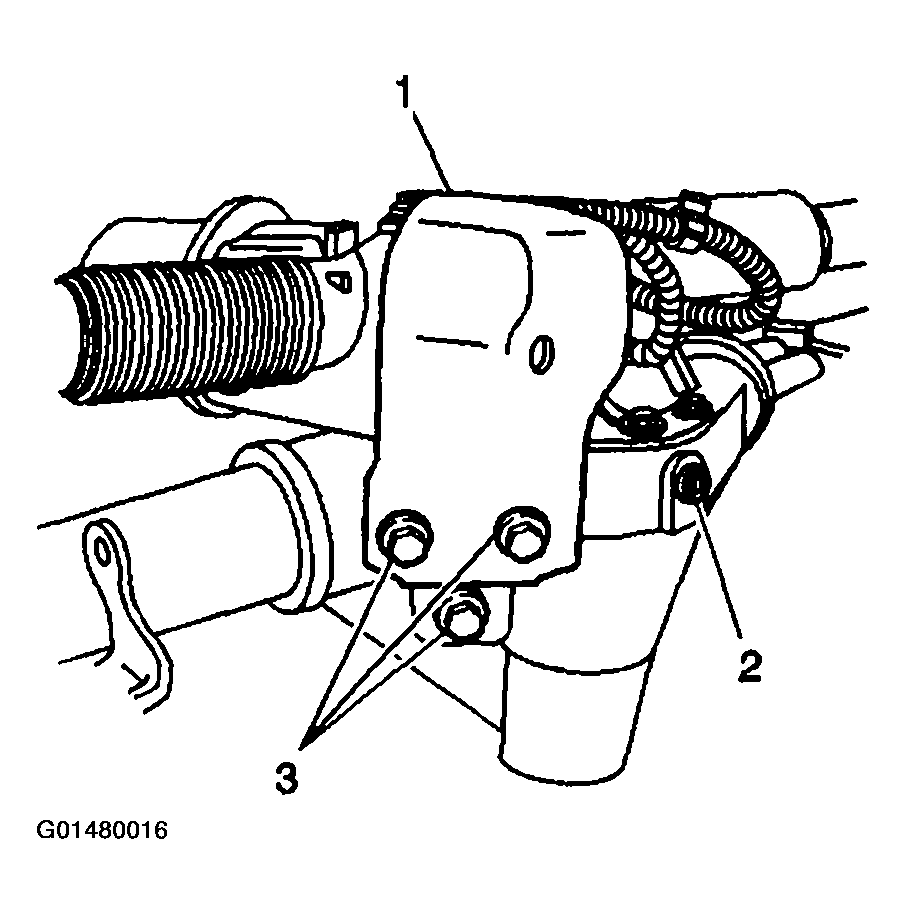

- Install the steering gear protection shield to the steering gear.NOTE: Refer to FASTENER NOTICE .
- Install the steering gear protection shield retaining bolts (3) to the steering gear.
Tighten
Tighten the bolts to 180 N.m (132 lb ft).
- Lower the vehicle.
- Perform a four wheel alignment. Refer to MEASURING WHEEL ALIGNMENT (WITH REAR WHEEL STEERING) or MEASURING WHEEL ALIGNMENT (WITHOUT REAR WHEEL STEERING) .
