Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the passenger seat from the vehicle. Refer to SEAT REPLACEMENT-FRONT BUCKET .
Pull the carpet back to gain access to the sensor.
Remove the nuts retaining the yaw rate sensor/lateral accelerometer (2) to the vehicle.

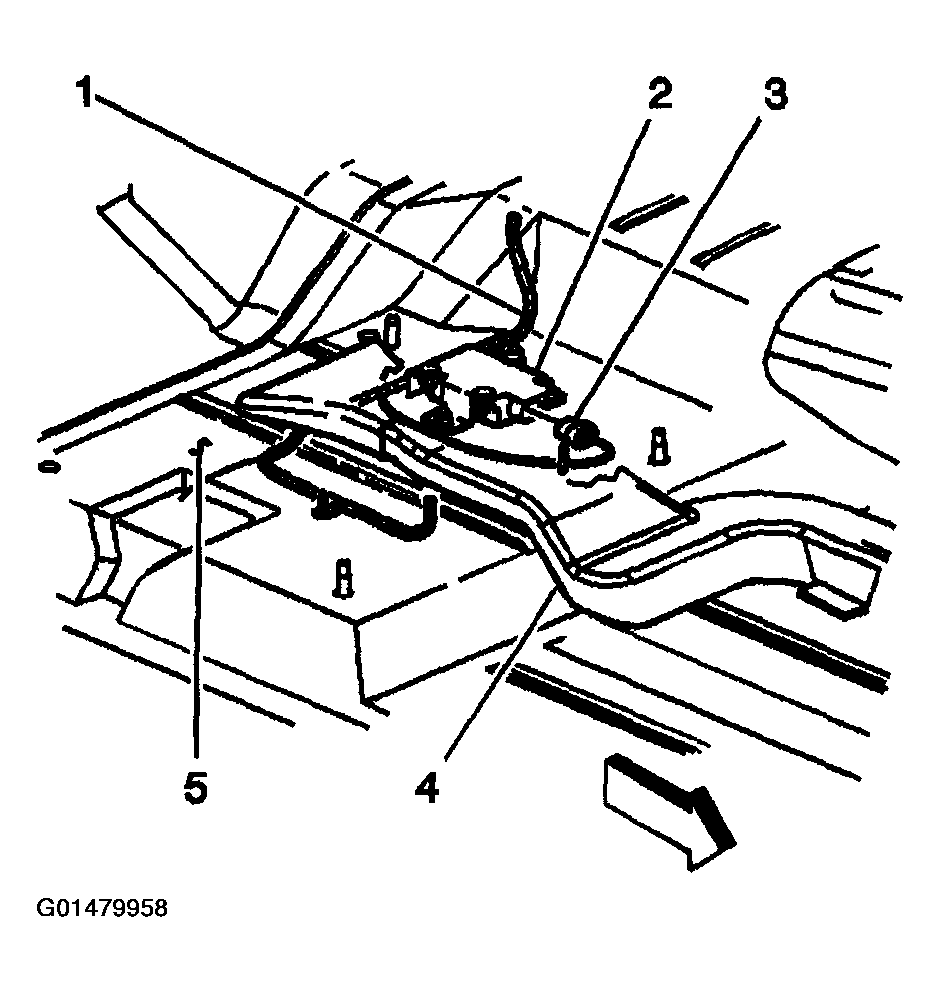

Fig 1: Yaw Rate Sensor/Lateral Accelerometer
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the yaw rate sensor/lateral accelerometer.
Remove the yaw rate sensor/lateral accelerometer from the vehicle.

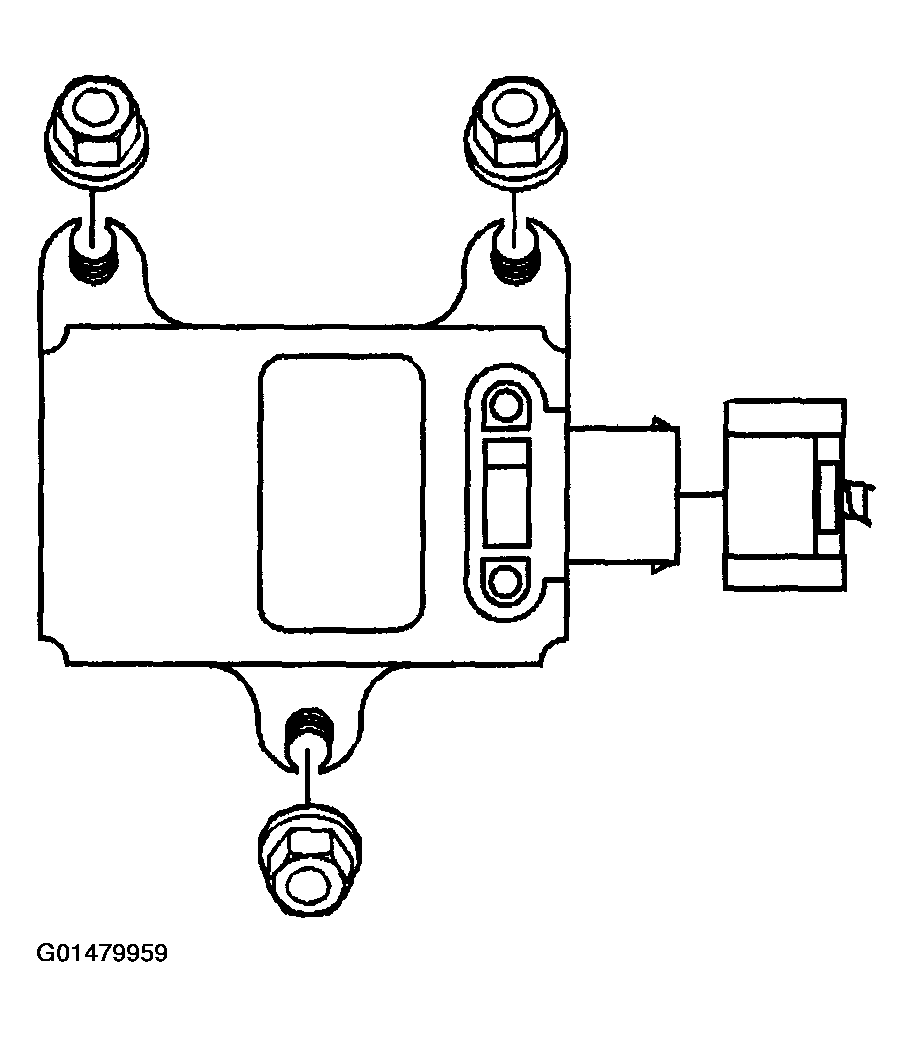

Fig 2: Electrical Connector
Courtesy of GENERAL MOTORS CORP.
