Front Floor Flood Lamp Replacement
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Front Floor Flood Lamp Replacement

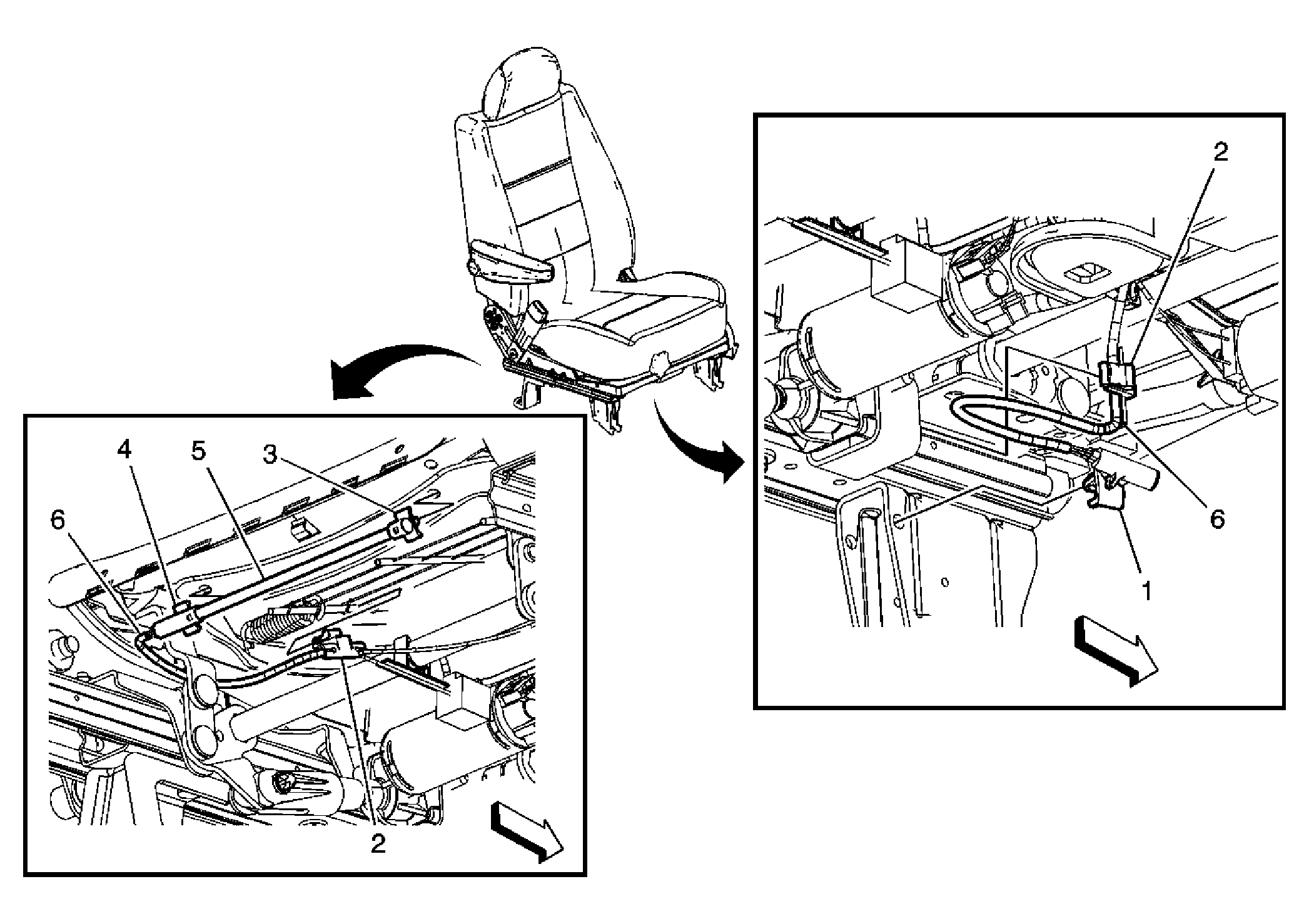

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the driver and/or front passenger seat. Refer to Front Seat Replacement - Bucket . |
|
| 1 | Under Seat Light Harness Spring Clip |
| 2 | Under Seat Light Harness Clip (Qty: 2) |
| 3 | Under Seat Light Harness Reflector End Cap |
| 4 | Under Seat Light Harness Light Engine Housing |
| 5 | Under Seat Light Harness Light Rod |
| 6 | Under Seat Light Harness Assembly Tip: Disconnect the electrical connector. |
