Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

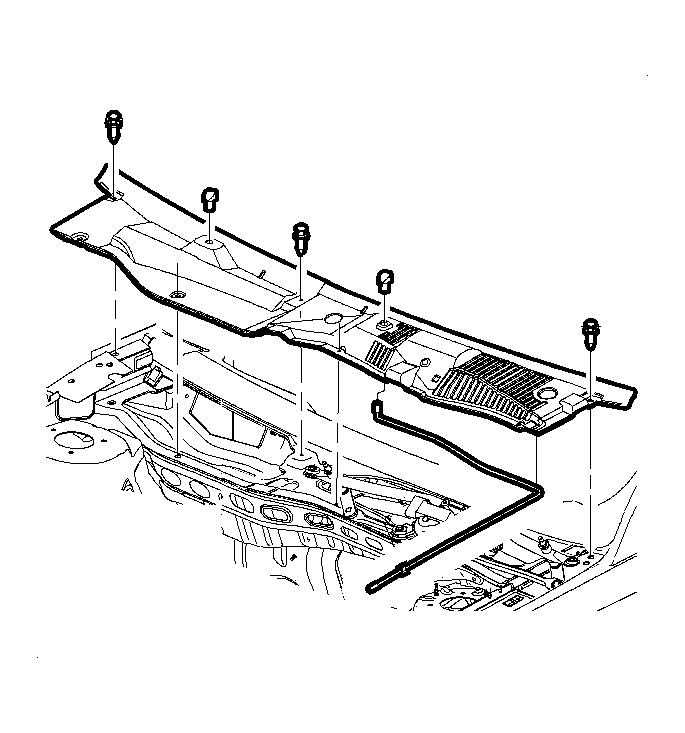

    Fig 1: Exploded View Of Air Inlet Grille
    GM1163448Courtesy of GENERAL MOTORS CORP.
  1. Push the washer nozzles into the air inlet grille panel until the tabs engage with the panel.
  2. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
