Power Moding Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

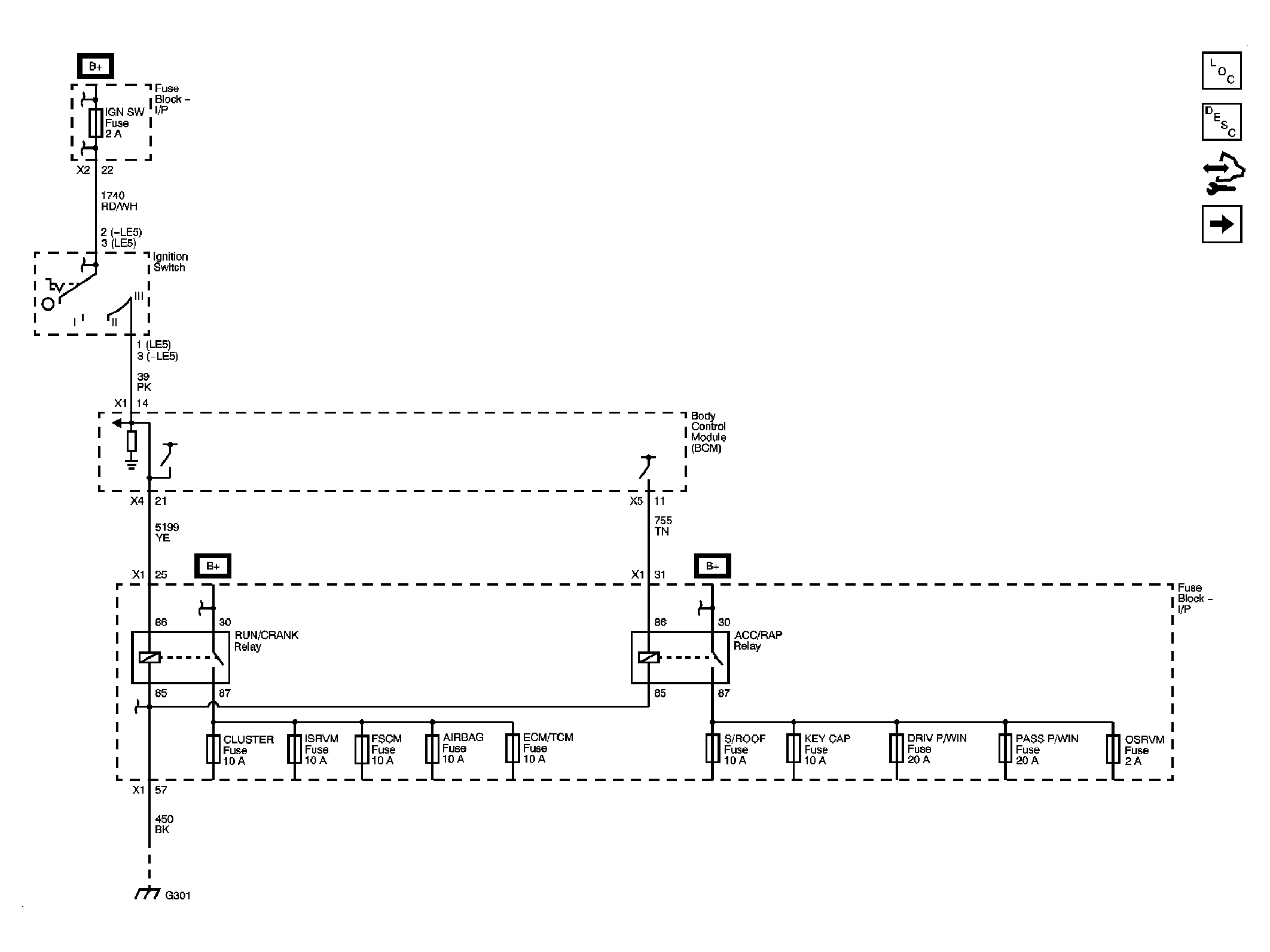

Fig 1: RAP Relay Control

Courtesy of GENERAL MOTORS CORP.

Fig 2: Run Relay

Courtesy of GENERAL MOTORS CORP.

Fig 3: Data Communications Enable

Courtesy of GENERAL MOTORS CORP.
