Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of CKP Sensor
    GM1587763Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the CKP sensor O-ring with clean engine oil.
  2. Remove the CKP sensor.
    3. CAUTION: Refer to Fastener Caution .
  3. Remove the CKP sensor stud.

    Tighten:  Tighten the stud to 10 N.m (89 lb in).

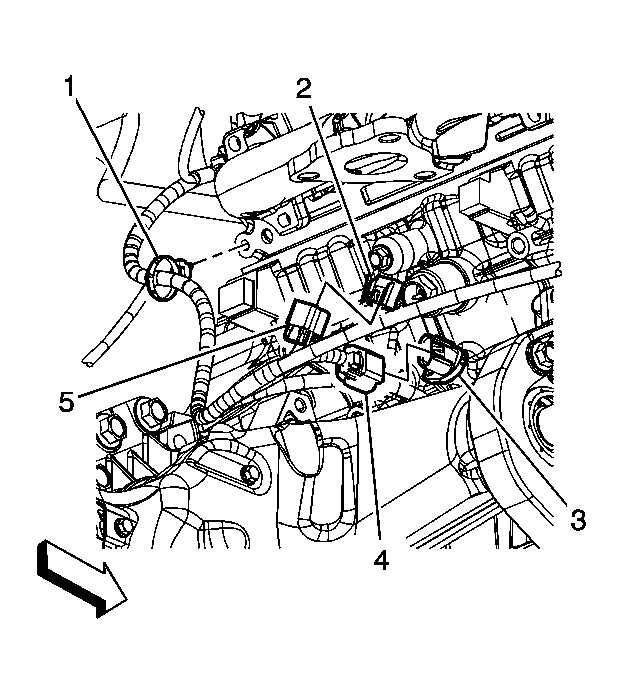

    4. Fig 2: Knock Sensor & Crankshaft Position Sensor & Connectors
    GM1887298Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (4) to the CKP sensor (3).

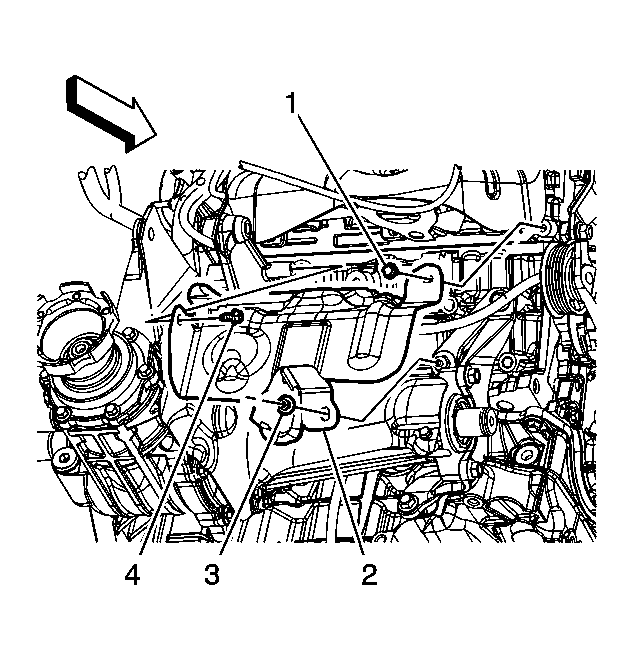

    5. Fig 3: Engine Wiring Harness Heat Shield Bolts
    GM1887297Courtesy of GENERAL MOTORS CORP.
  5. Install the engine wiring harness heat shield (2).
  6. Install the engine wiring harness heat shield bolts (1 and 4).

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  7. Install the engine wiring harness heat shield nut (3).

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

  8. Install the right catalytic converter. Refer to Catalytic Converter Replacement - Right Side (LZ4) .
  9. Perform the CKP system variation learn procedure. Refer to Crankshaft Position System Variation Learn .
