Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

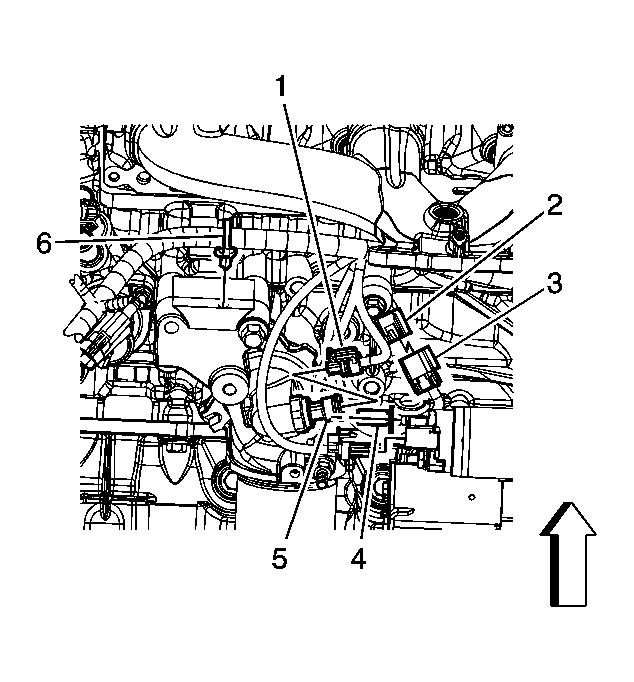

Fig 1: Identifying Knock Sensor

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Position the knock sensor to the engine block and install the knock sensor bolt.
Tighten: Tighten the bolt to 25 N.m (18 lb ft).

Fig 2: Knock Sensor

Courtesy of GENERAL MOTORS CORP.

Connect the engine wiring harness electrical connector (3) to the knock sensor (2).
Lower the vehicle.
