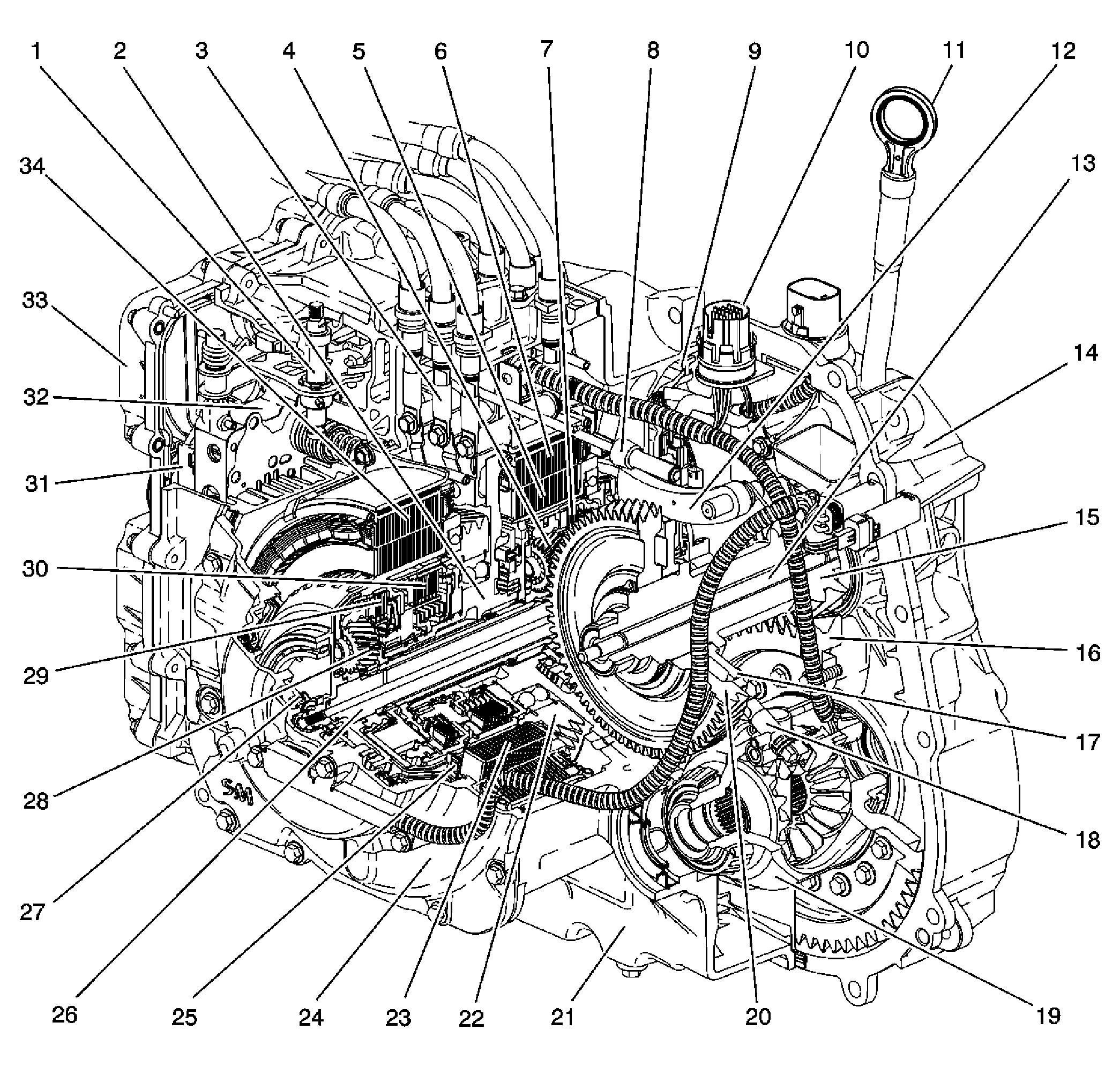

Component Location
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Manual Shift Shaft |
| 2 | Center (w/Variable Low and 1-2 Reverse Clutch) Support Assembly |
| 3 | Drive Motor/Generator Power Inverter Module Cable Assembly - 3 Phase - B |
| 4 | Input Carrier Assembly (C1) |
| 5 | Generator/Drive Motor Rotor Assembly - Unit A |
| 6 | Generator/Drive Motor Stator Assembly - Unit A |
| 7 | 1-3 Reverse Clutch Assembly |
| 8 | Park Pawl Actuator Assembly |
| 9 | A/Trans Torque Dampener Assembly |
| 10 | A/Trans Wiring Harness Assembly |
| 11 | Transmission Fluid Fill Tube Cap Assembly |
| 12 | Park Pawl |
| 13 | Front Differential Transfer Drive Gear Fluid Passage Tube Assembly |
| 14 | Torque/Dampener and Differential Housing Assembly |
| 15 | Front Differential Drive Pinion Gear |
| 16 | Front Differential Ring Gear |
| 17 | Park Gear |
| 18 | A/Trans Output Speed Sensor Assembly |
| 19 | Front Differential Carrier Baffle |
| 20 | Front Differential Transfer Driven Gear |
| 21 | A/Trans Case Assembly |
| 22 | Front Differential Transfer Drive Gear |
| 23 | Drive Motor/Generator Rotor Assembly - Unit B |
| 24 | A/Trans Case Cover |
| 25 | 4th Clutch Assembly |
| 26 | Output Sun Gear Shaft |
| 27 | Drive Motor/Generator Position Sensor Stator Assembly |
| 28 | Output Carrier Assembly - C2 |
| 29 | Variable Hi and 2-3-4 Clutch Assembly |
| 30 | Variable Low and 1-2 Reverse Clutch Assembly |
| 31 | Control Solenoid (w/Body and TCM) TEHCM Valve Assembly |
| 32 | Control Valve Body |
| 33 | Control Valve Body Cover Assembly |
| 34 | Drive Motor/Generator Stator Assembly - Unit B |
