Filler Tube: Installation
WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
- Install the fuel filler pipe.

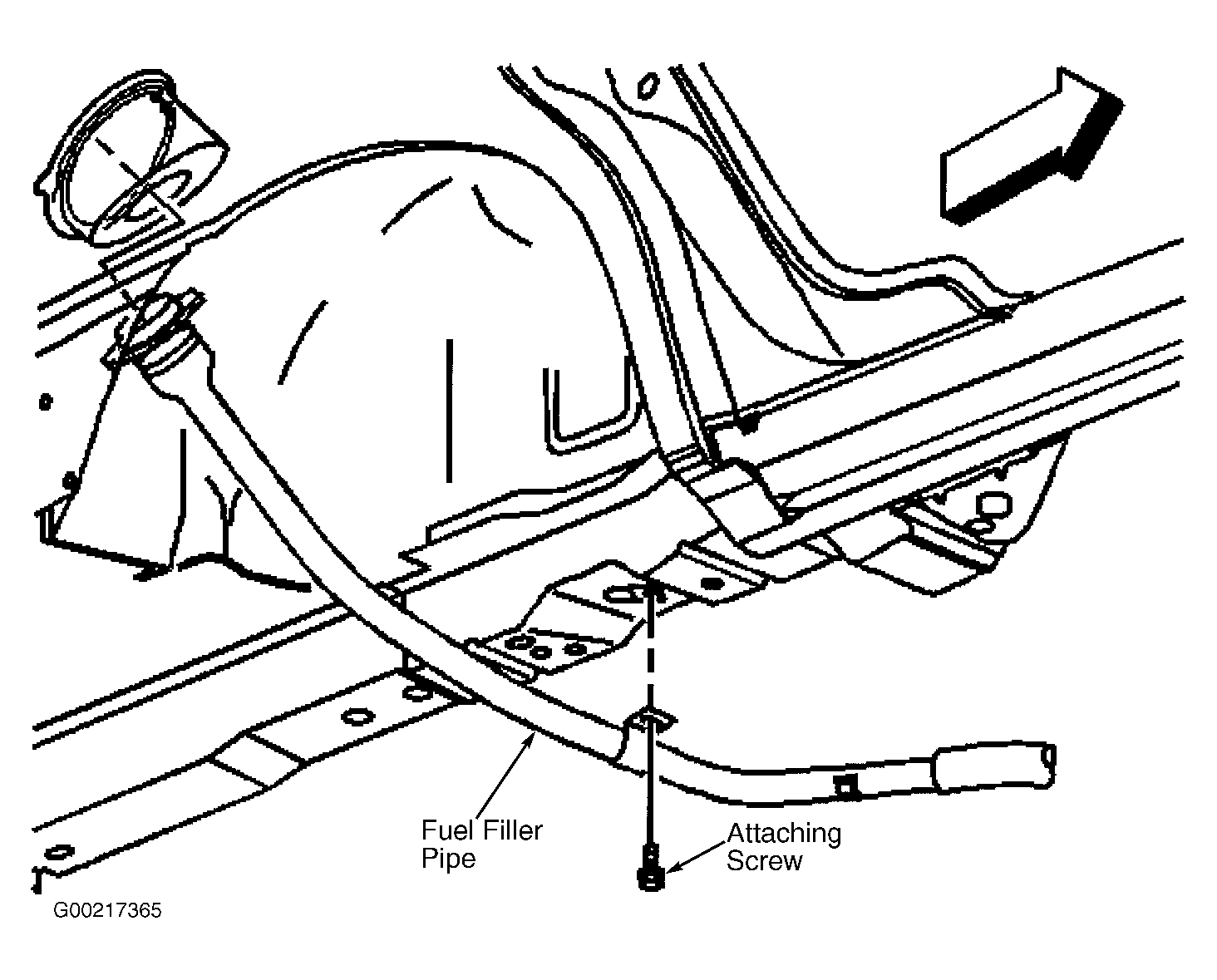

- Install the fuel filler pipe attaching screw to the under body. See Figure . Tighten the fuel filler pipe attaching screw to specification. See TORQUE SPECIFICATIONS .
- Install the fuel filler hose.

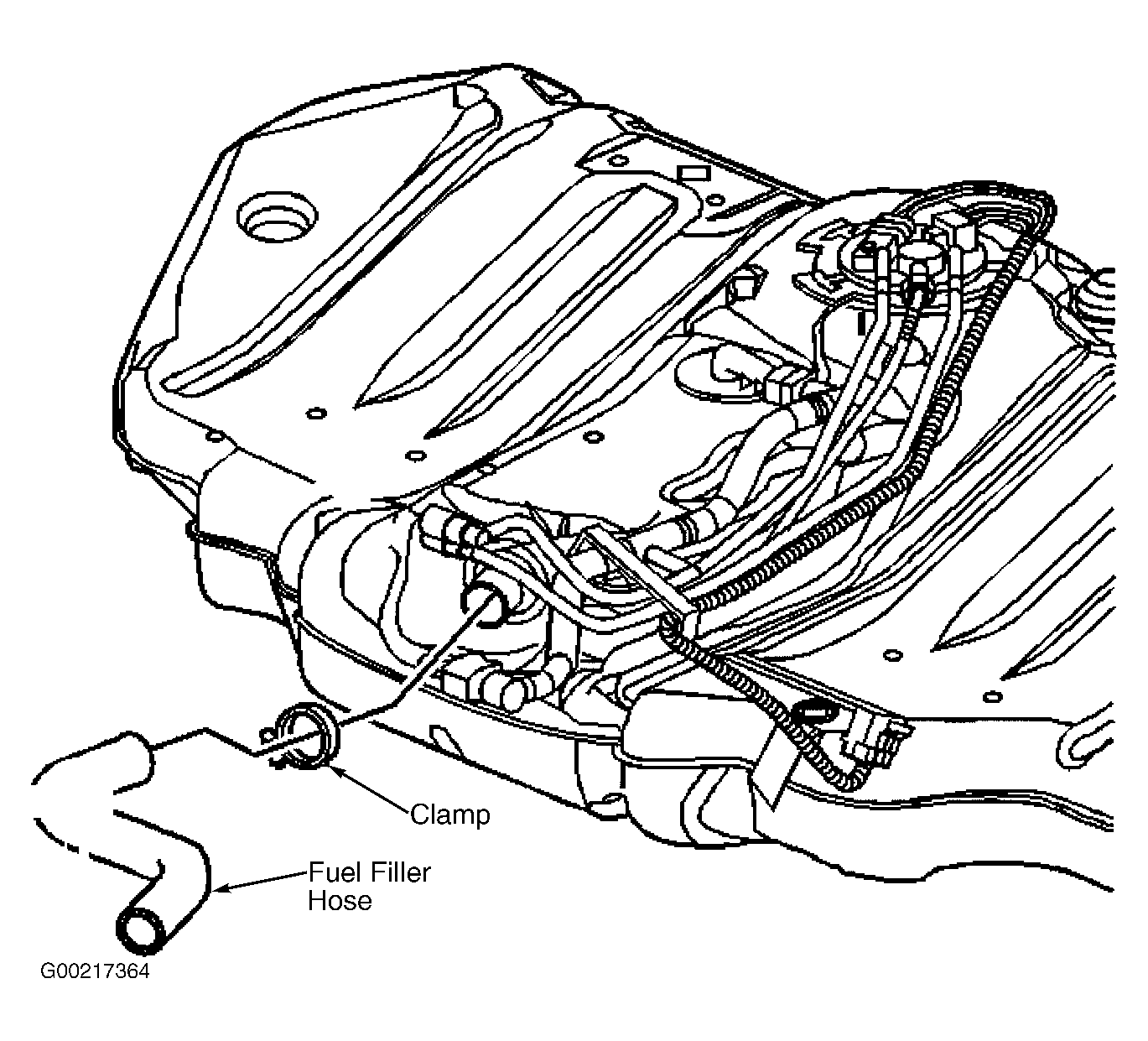

- Position the fuel filler hose clamp at the fuel tank and fuel fill tube. See Figure . Tighten the fuel tank filler hose clamps to specification. See TORQUE SPECIFICATIONS .
- Lower the vehicle.

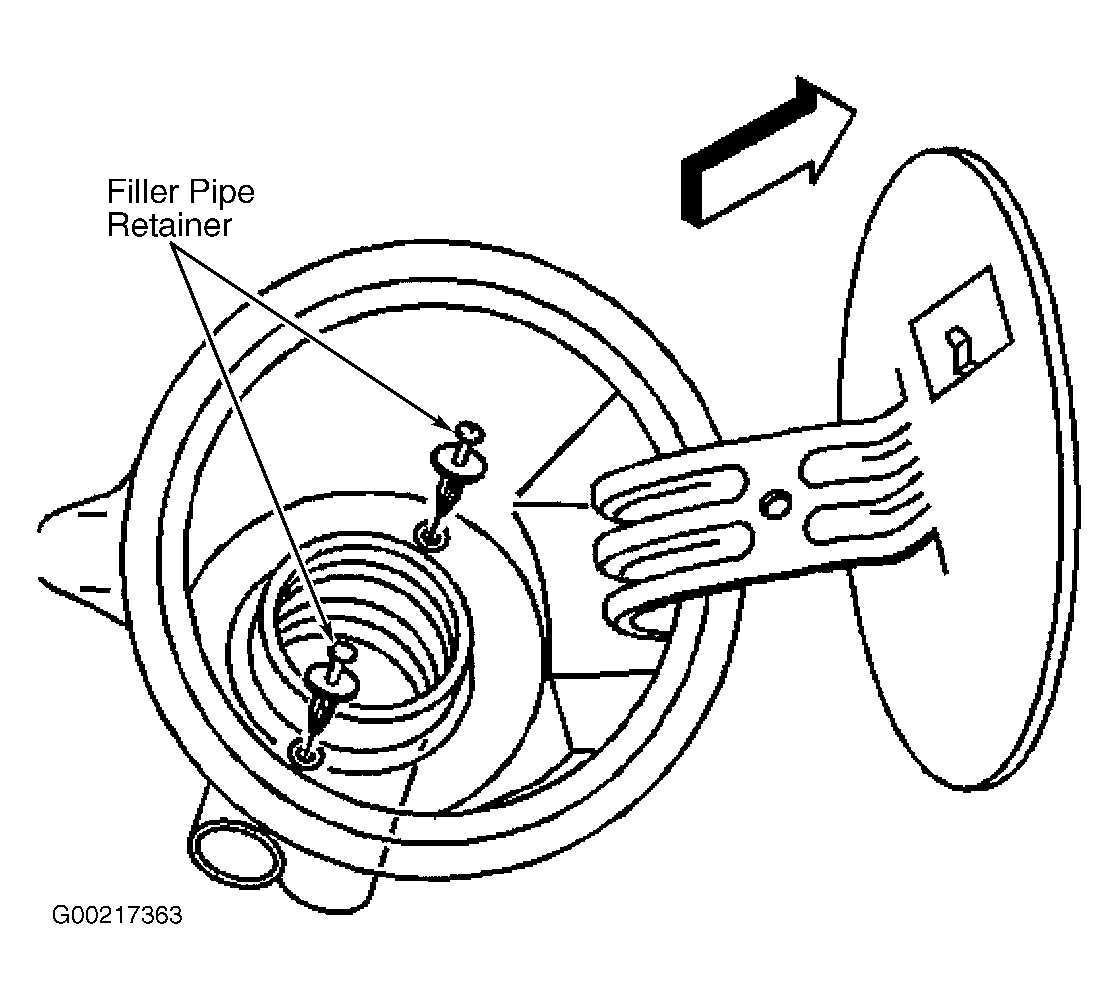

- Install the fuel filler pipe retainers to the fuel filler pipe access panel. See Figure .
- Install the fuel filler cap.
