Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Position the left I/P insulator to the I/P.
Install the courtesy lamp to the I/P insulator then rotate 1/4 turn clockwise to secure.

Fig 1: Identifying Left I/P Insulator
Courtesy of GENERAL MOTORS CORP.

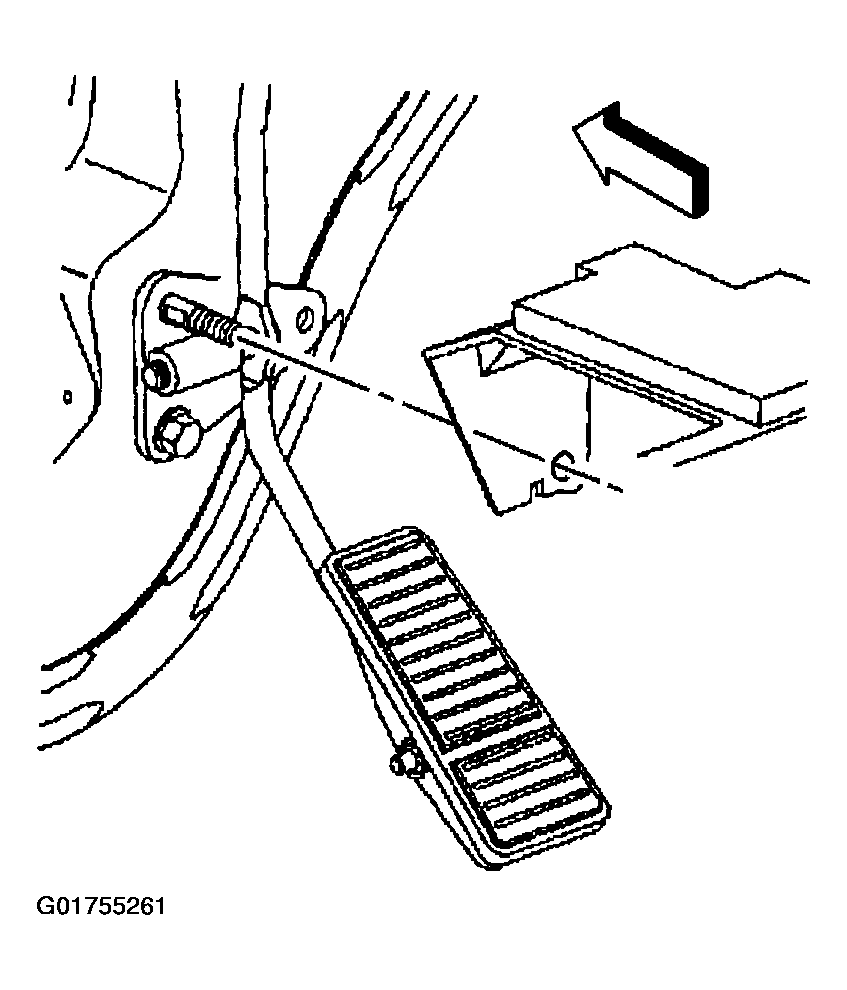

Install the left I/P insulator to the stud at the accelerator pedal.

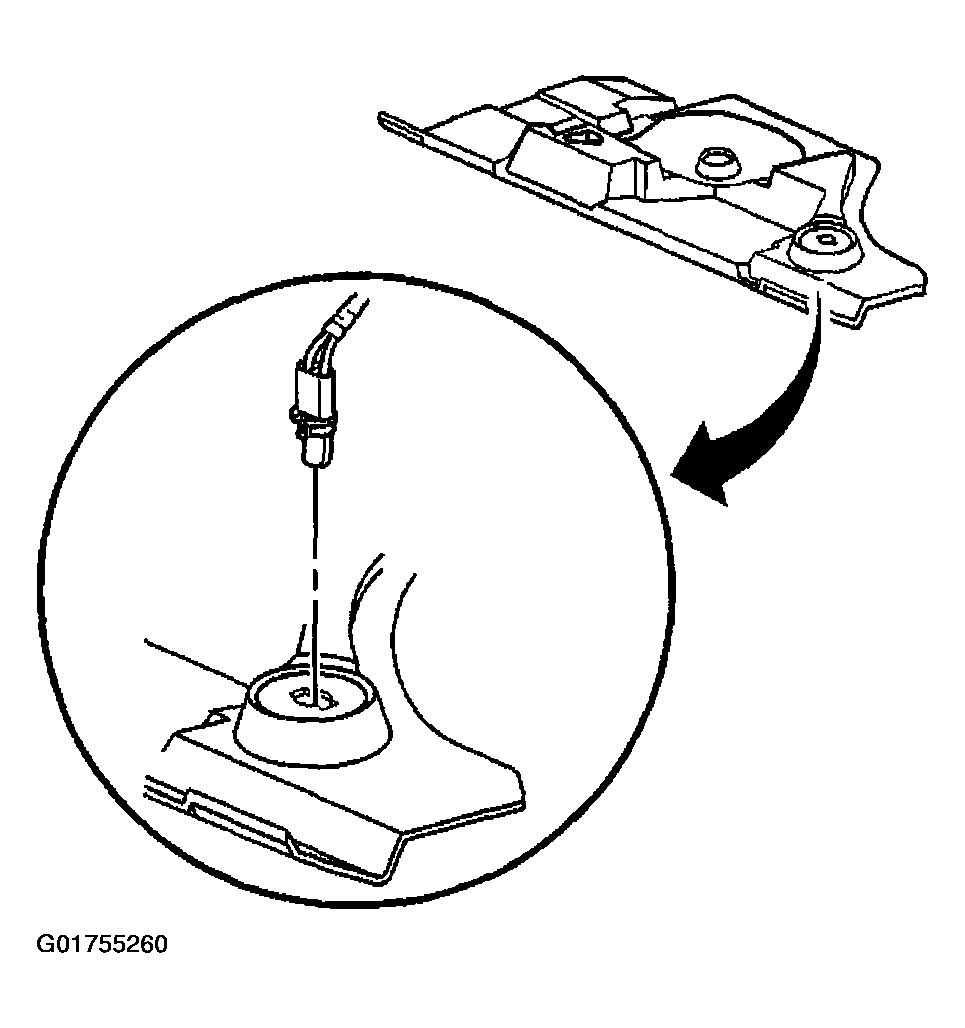

Fig 2: Identifying Left I/P Insulator Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.
Install the left I/P insulator retainers to the filler panel on the steering column opening.

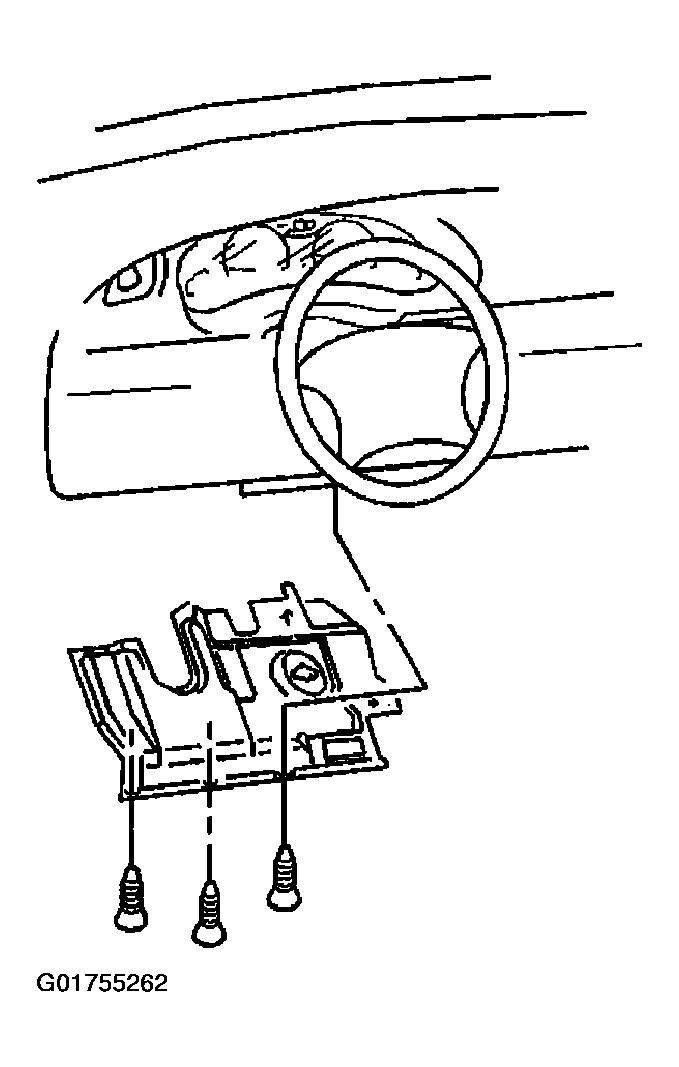

Fig 3: Identifying Steering Column Opening Filler Panel-To-Left I/P Insulator Retainers
Courtesy of GENERAL MOTORS CORP.
