Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the console compartment to the front floor console.

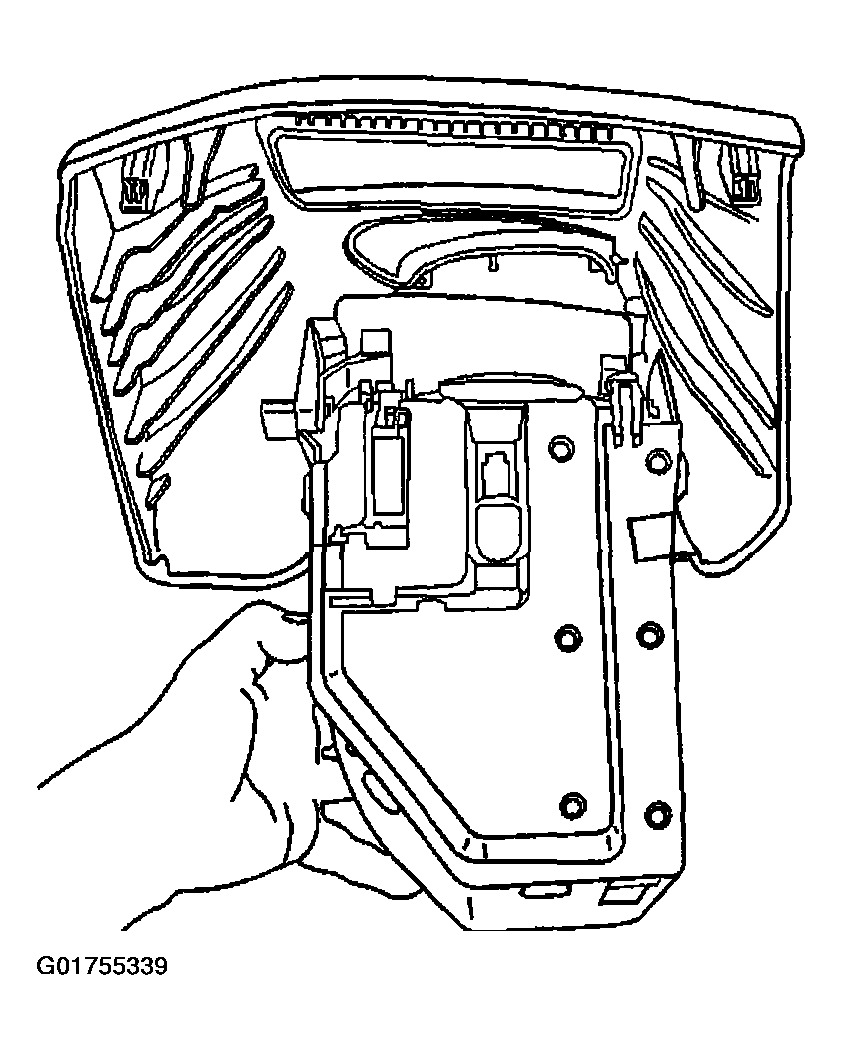

    Fig 1: Installing Console Compartment
    G01755339Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the console compartment screws. Tighten the console compartment screws to 2 N.m (18 lb in).

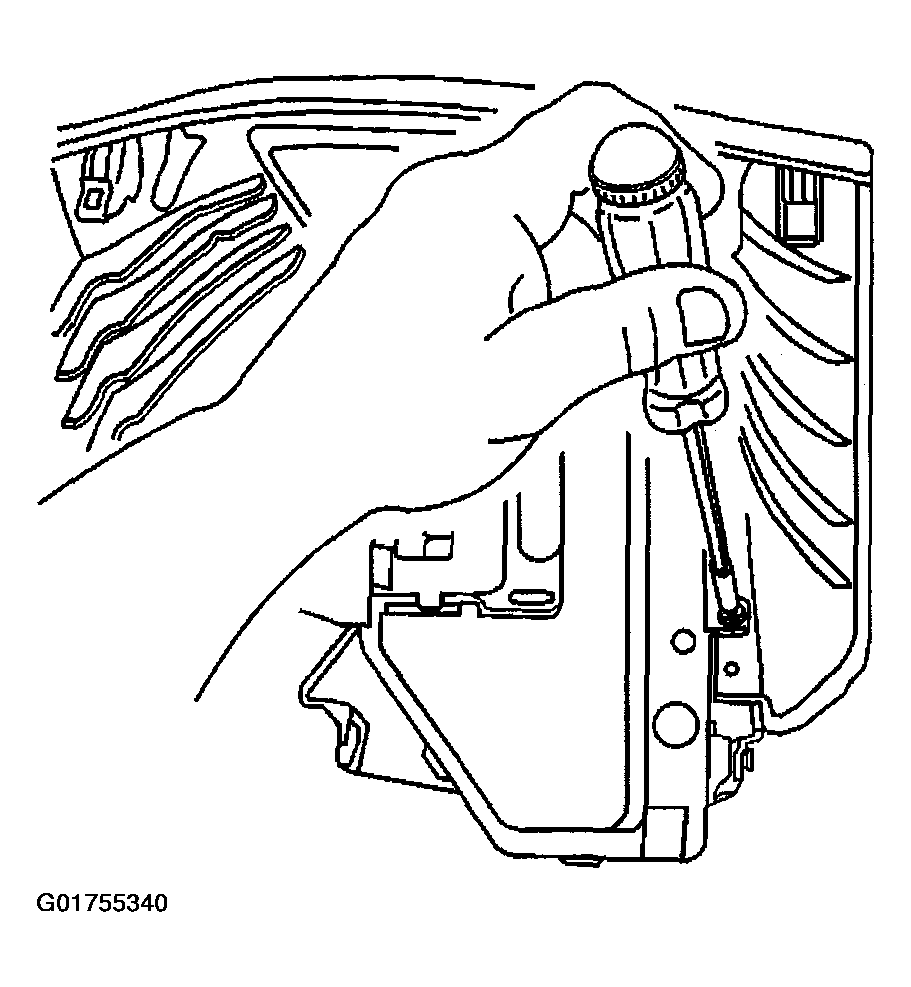

    Fig 2: Identifying Console Compartment Screws
    G01755340Courtesy of GENERAL MOTORS CORP.
  3. Install the console compartment door screws. Tighten the console compartment door screws to 2 N.m (18 lb in).
  4. Install the front floor console. Refer to Console Replacement - Front Floor (D06)  or Console Replacement - Front Floor (D55)  .
