Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column opening filler. Refer to Steering Column Filler Replacement .
  2. Disconnect the electrical connectors from the driver information center.

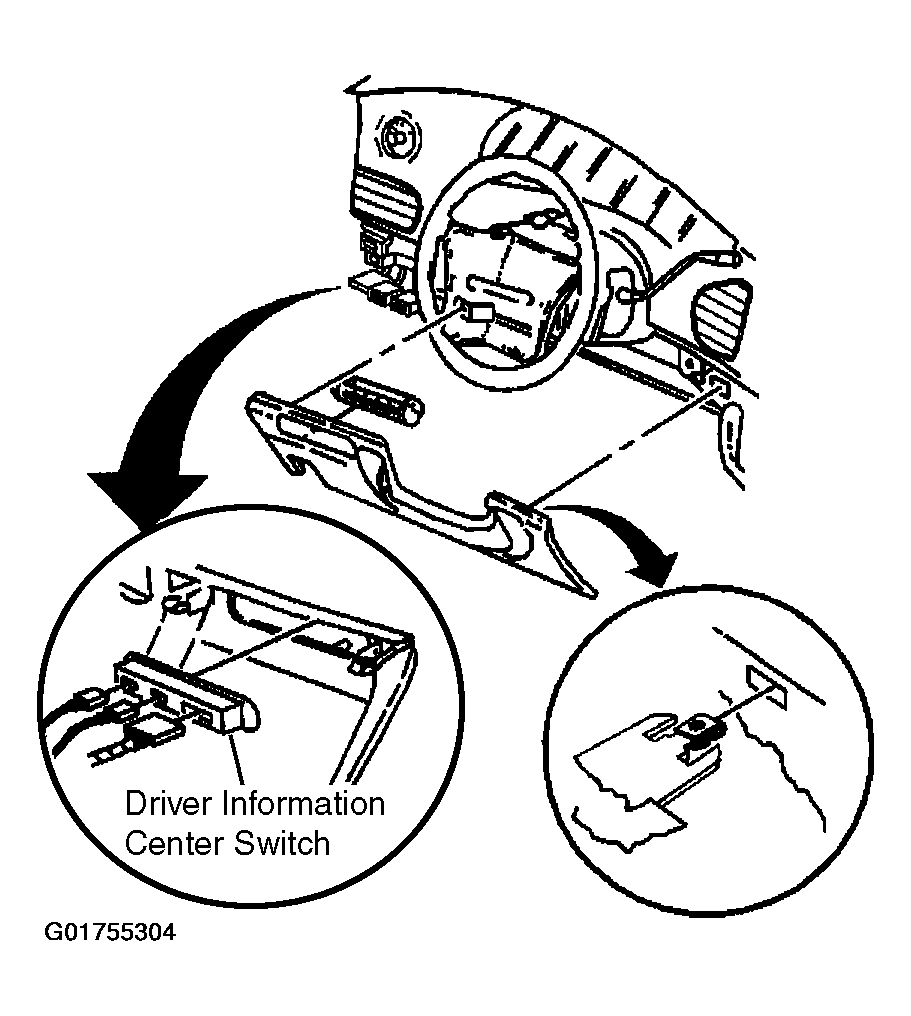

  3. Fig 1: Identifying Driver Information Center Switch
    G01755304Courtesy of GENERAL MOTORS CORP.
  4. Depress the retainers on the driver information center, use a small flat-bladed tool.
  5. Remove the driver information center from the steering column filler.
