Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the lamp socket pressing into place until fully seated.
    Fig 1: Installing Instrument Cluster Bulb From Lamp Socket
    G01755313Courtesy of GENERAL MOTORS CORP.
  2. Install the required lamp to the cluster.

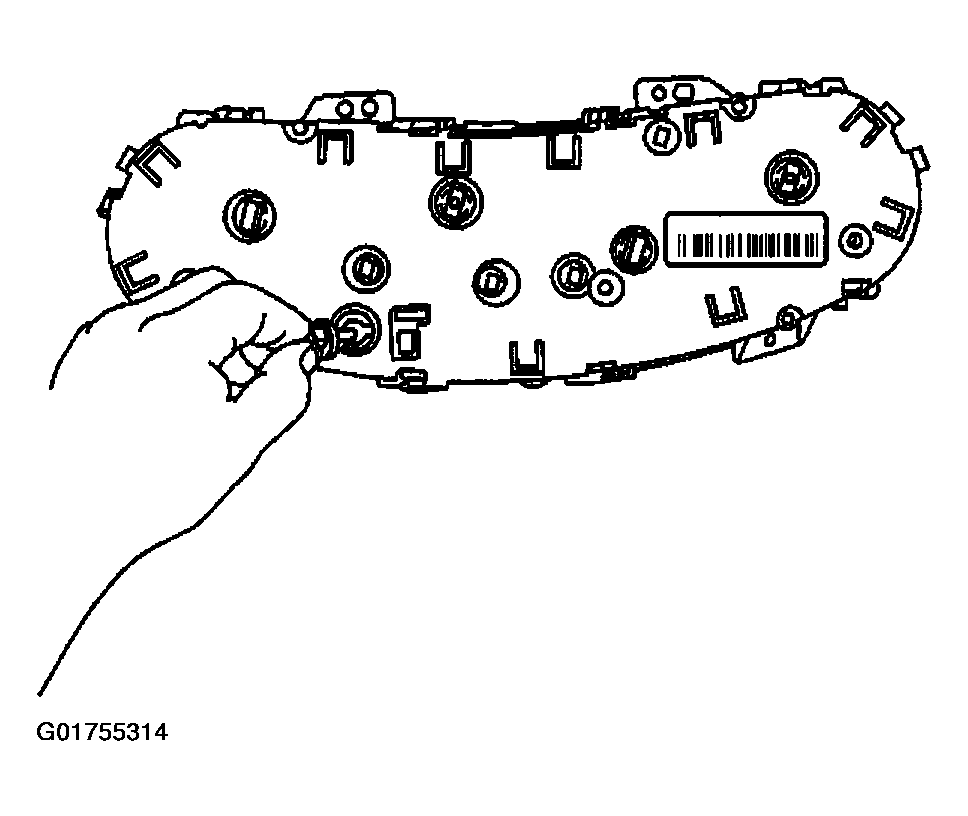

    Fig 2: Installing Instrument Cluster Lamp
    G01755314Courtesy of GENERAL MOTORS CORP.
  3. Connect the required lamp to the cluster turning clockwise.
  4. Install the instrument panel cluster. Refer to Instrument Panel Cluster (IPC) Replacement .

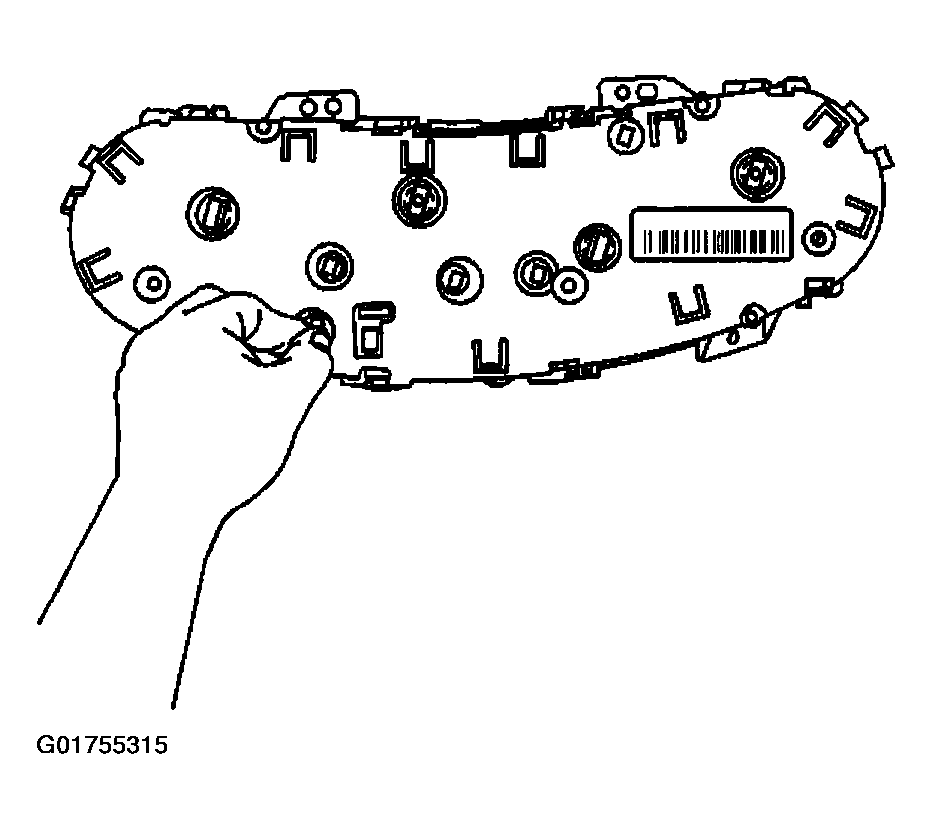

    Fig 3: Connecting Instrument Cluster Lamp To IPC
    G01755315Courtesy of GENERAL MOTORS CORP.
