Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the cluster.

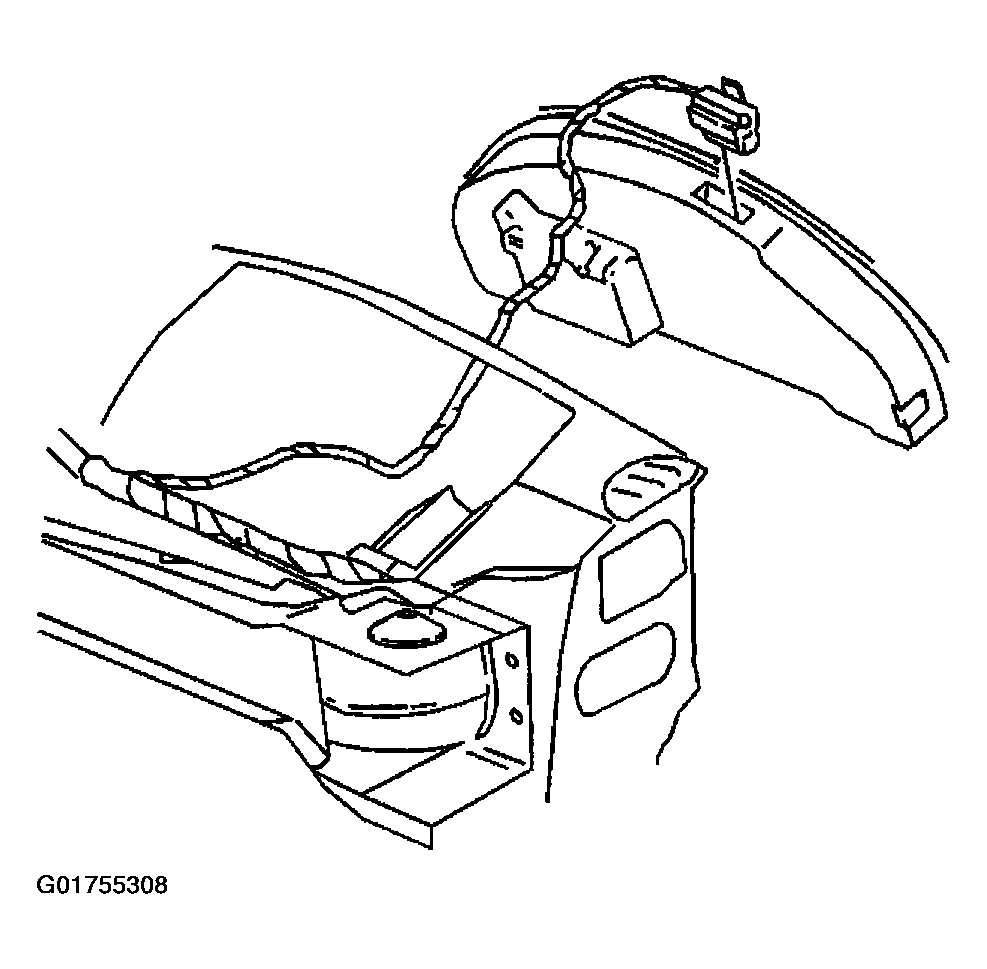

    Fig 1: Identifying Instrument Panel Cluster (IPC) Electrical Connector
    G01755308Courtesy of GENERAL MOTORS CORP.
  2. In order to install the IPC, perform the following procedures:
    1. 2.1. Rotate the top of the cluster forward.
    2. 2.2. Engage the locating pins on the bottom of the cluster.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the screws to the IPC. Tighten the screws to 2 N.m (18 lb in).

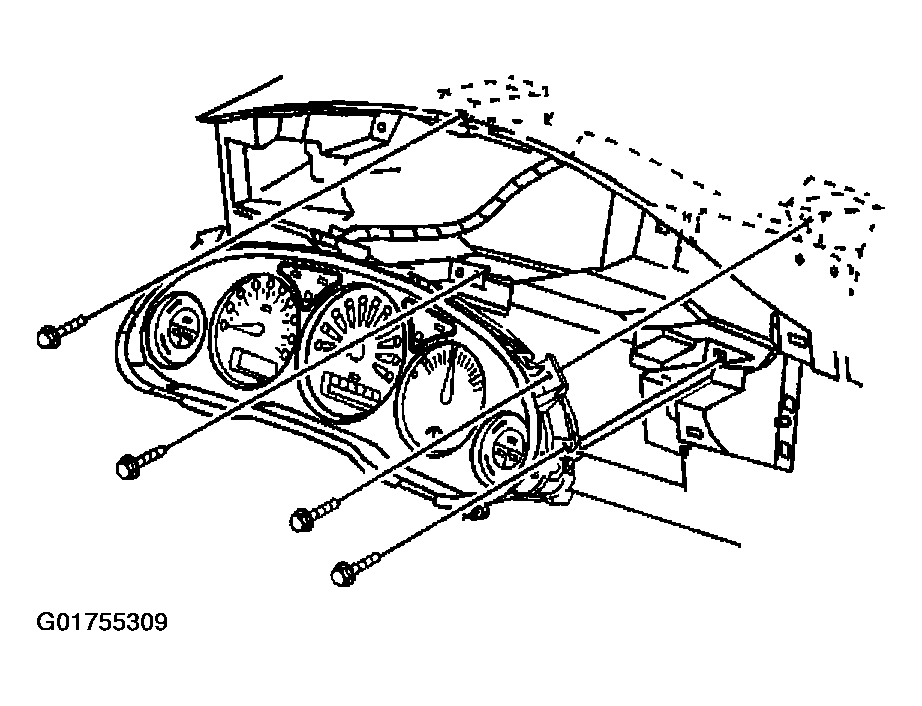

    4. Fig 2: Identifying Instrument Panel Cluster (IPC)
    G01755309Courtesy of GENERAL MOTORS CORP.
  4. Install the IPC trim plate. Refer to Trim Plate Bezel Replacement - I/P Cluster .
