Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the knee bolster to the instrument panel (I/P).
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Install the bolts which secure the knee bolster to the steering column support. Tighten the bolts to 10 N.m (89 lb in).

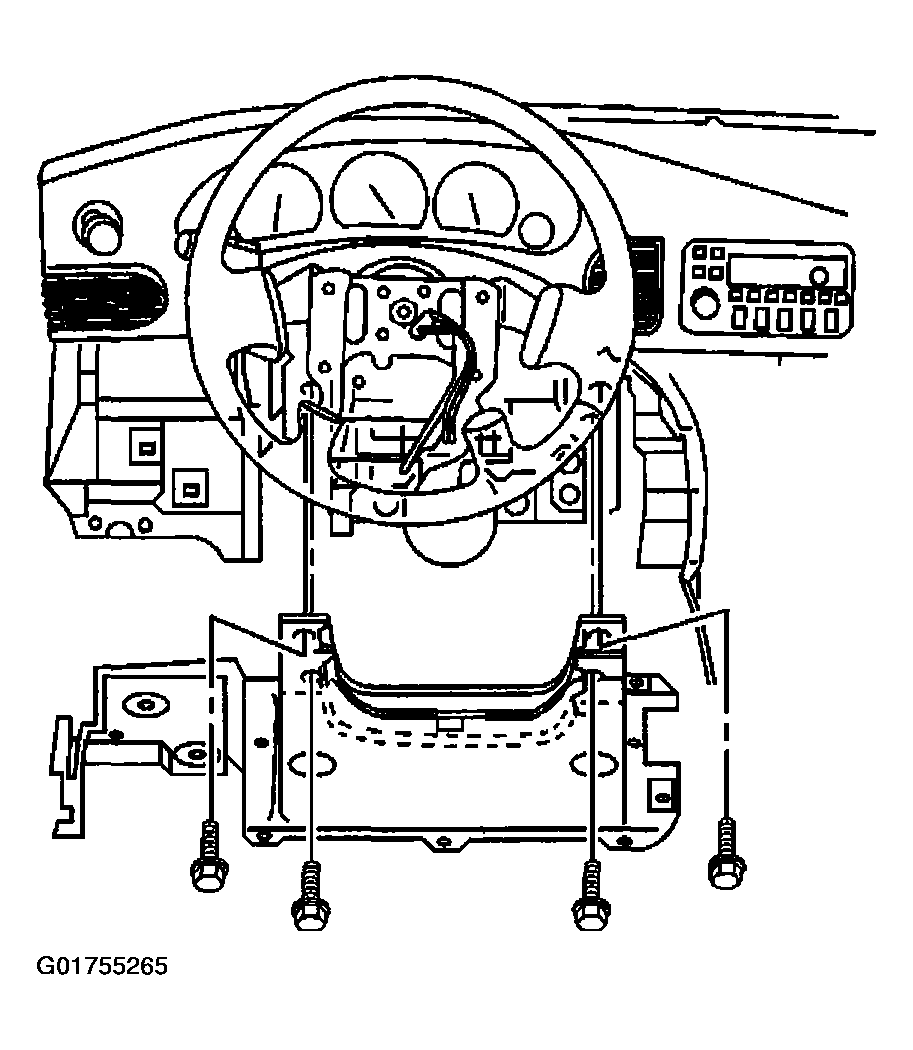

Fig 1: Identifying Knee Bolster-To-Steering Column Support Bolts
Courtesy of GENERAL MOTORS CORP.
Install the bolts which secure the knee bolster to the I/P. Tighten the bolts to 2 N.m (18 lb in).

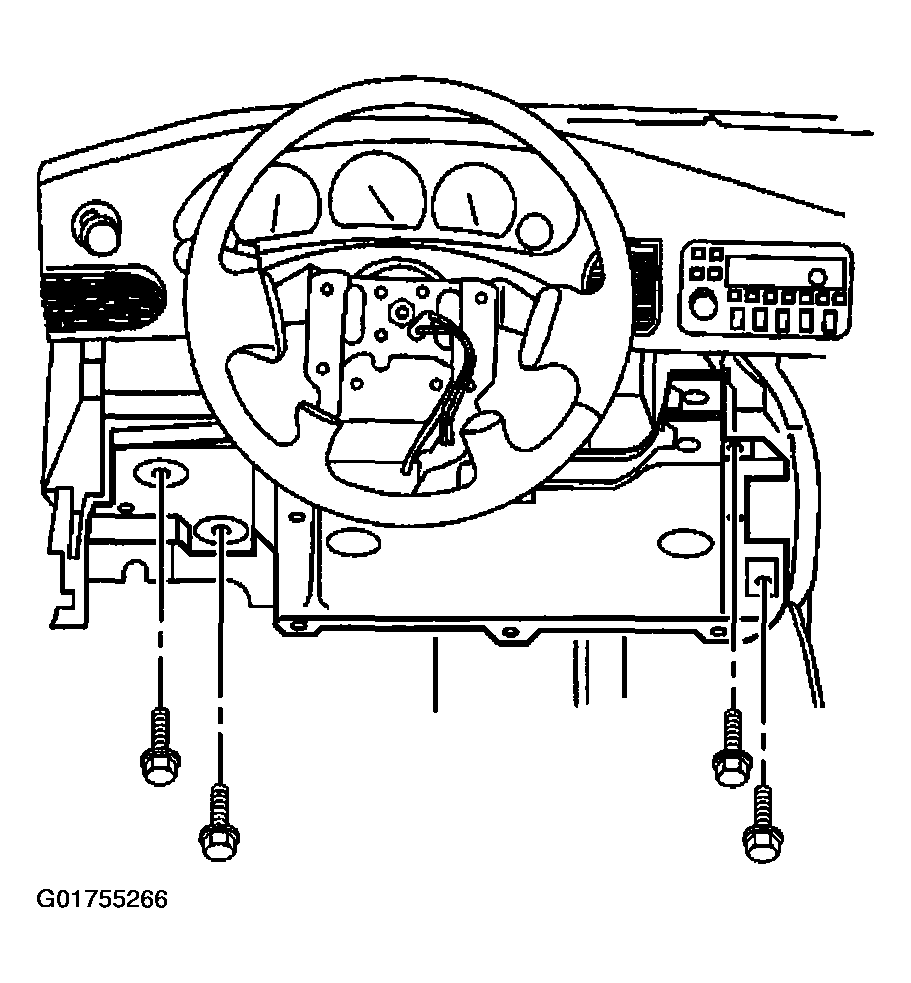

Fig 2: Identifying Knee Bolster-To-I/P Bolts
Courtesy of GENERAL MOTORS CORP.
Install the steering column opening filler. Refer to Steering Column Filler Replacement .
Install the left I/P insulator. Refer to Closeout/Insulator Panel Replacement - Left .
