Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connectors to the traction control switch. Refer to TRACTION CONTROL SWITCH REPLACEMENT in Anti-lock Brake System.
Position the front floor console trim plate tabs to the retainers in the front floor console.

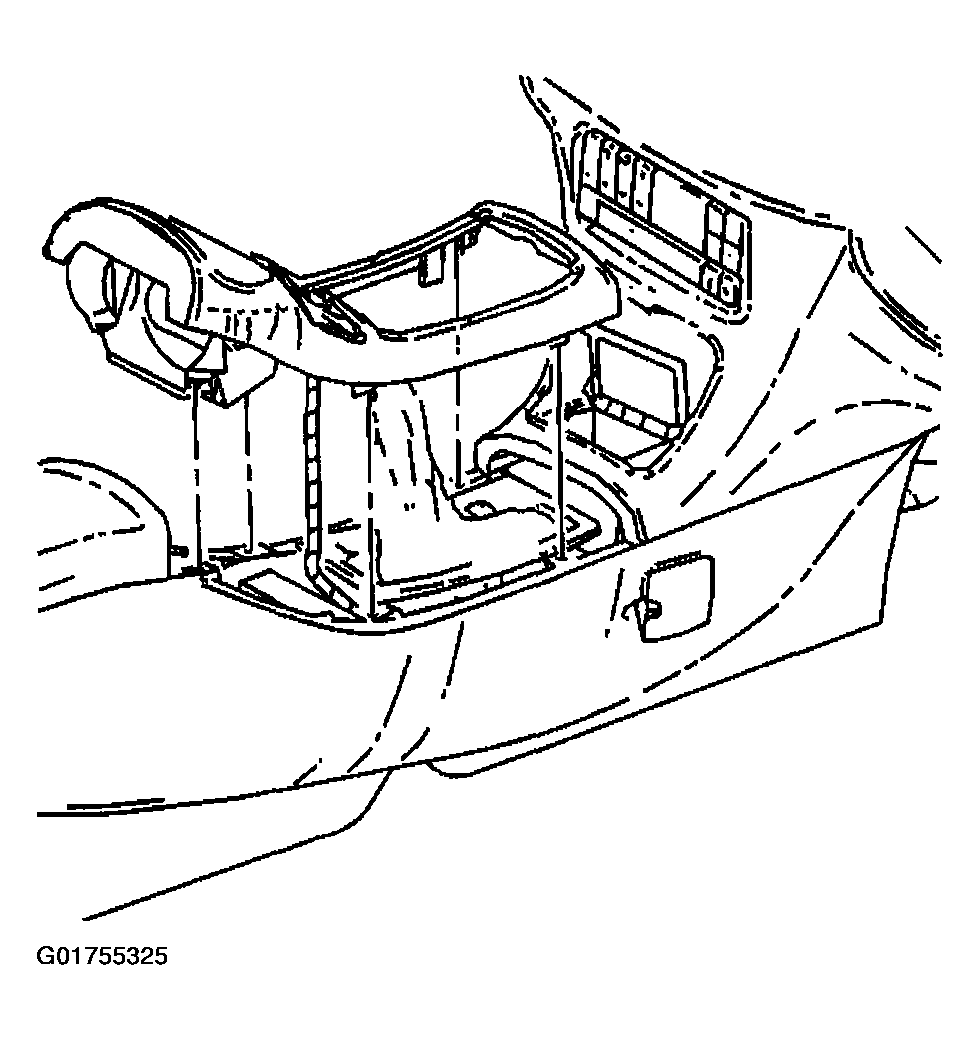

Fig 1: Identifying Front Floor Console Trim Plate

Courtesy of GENERAL MOTORS CORP.

Install the front floor console trim plate pressing down until the tabs are fully seated.
