Shock Absorber & Coil Spring Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

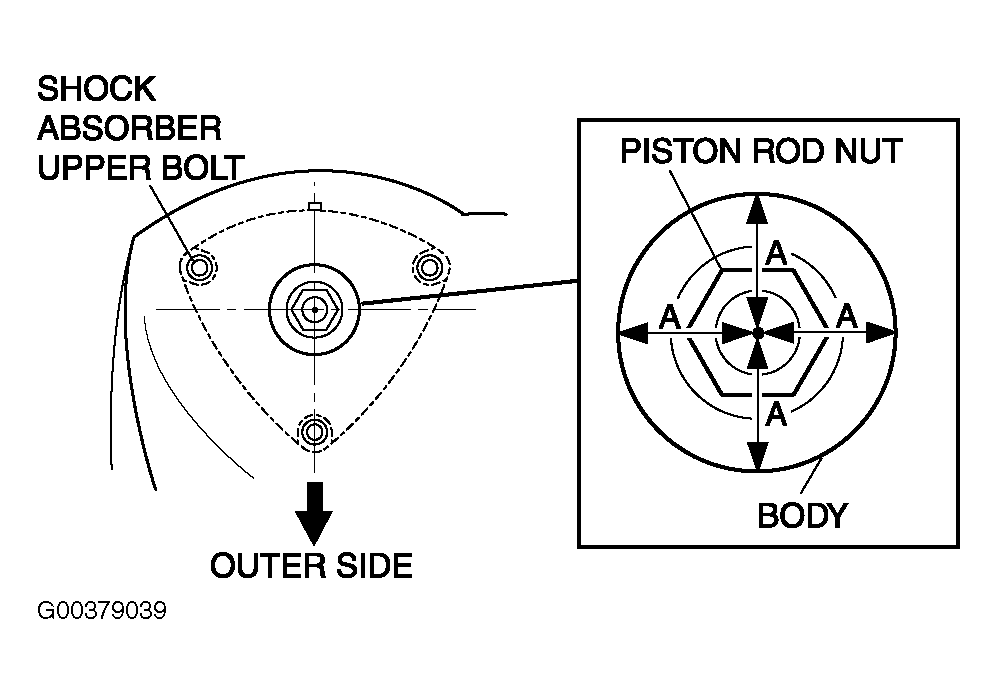

Align the piston rod nut with the center of the part where the shock absorber is installed by positioning the piston rod nut with lengths A all the same, and tighten the shock absorber upper bolts.

Fig 1: Aligning Piston Rod
Courtesy of MAZDA MOTORS CORP.
Align the knuckle notch with projection A on the lower side of the shock absorber.
Raise the front lower arm using a jack and install the shock absorber and coil spring.

Fig 2: Installing Shock Absorber

Courtesy of MAZDA MOTORS CORP.
