Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Care should be taken to avoid chipping or scratching the coating when handling the suspension coil spring. Damage to the coating can cause premature failure.

Remove the strut-to-body mount nuts (1).

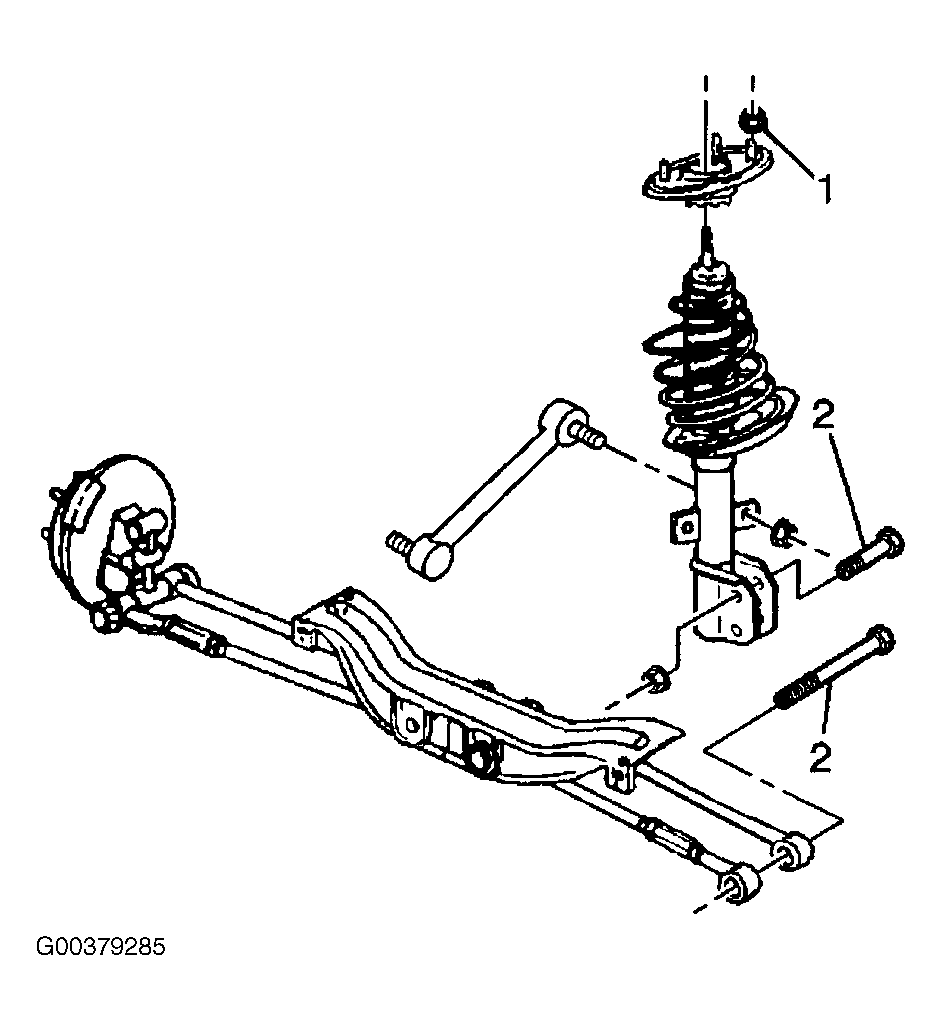

Fig 1: Identifying Strut Assembly Mounting Nuts & Bolts
Courtesy of GENERAL MOTORS CORP.
Raise and support the vehicle.
Remove the tire and wheel assembly.
Remove the stabilizer shaft link from the strut. Refer to STABILIZER SHAFT LINK REPLACEMENT .
Remove the bolt (2) from the brake hose bracket (3) and the strut assembly.

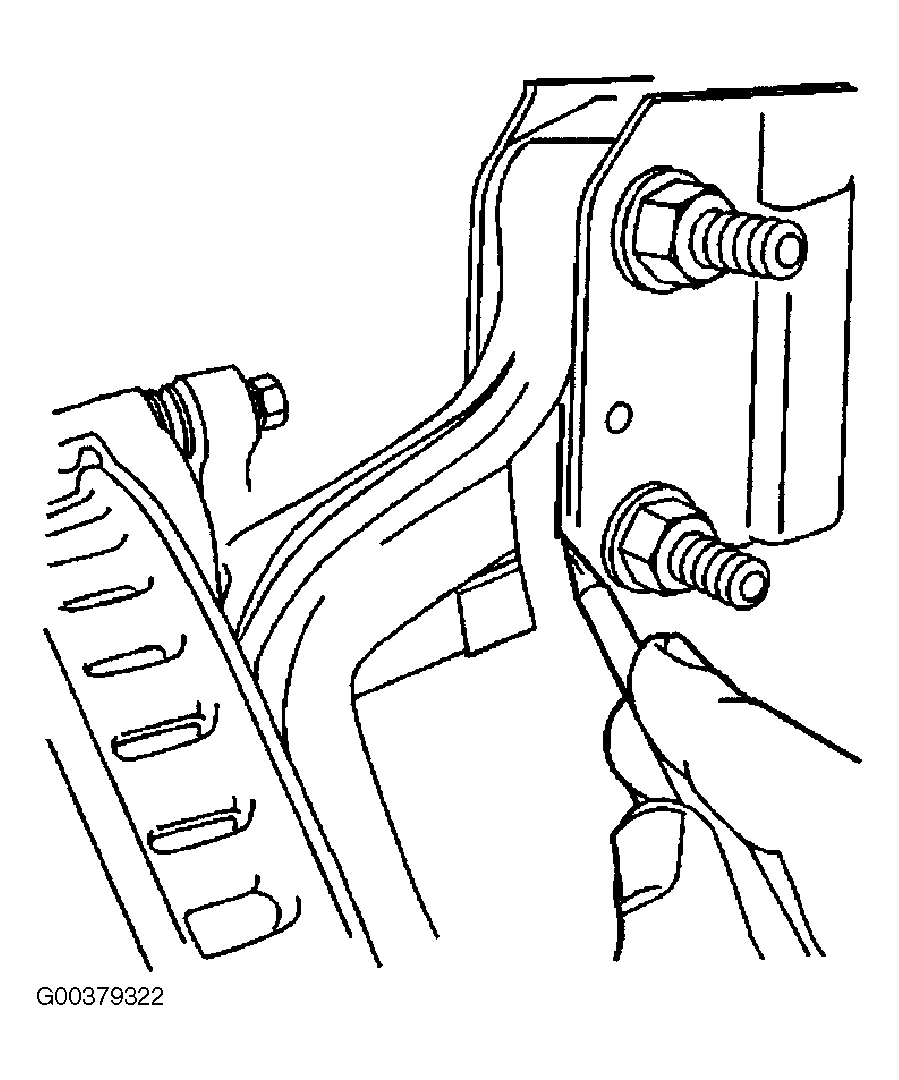

Scribe the strut to the knuckle. See Figure.

NOTE: The knuckle must be retained after the strut-to-knuckle bolts have been removed. Failure to observe this may cause ball joint and/or wheel drive shaft damage.

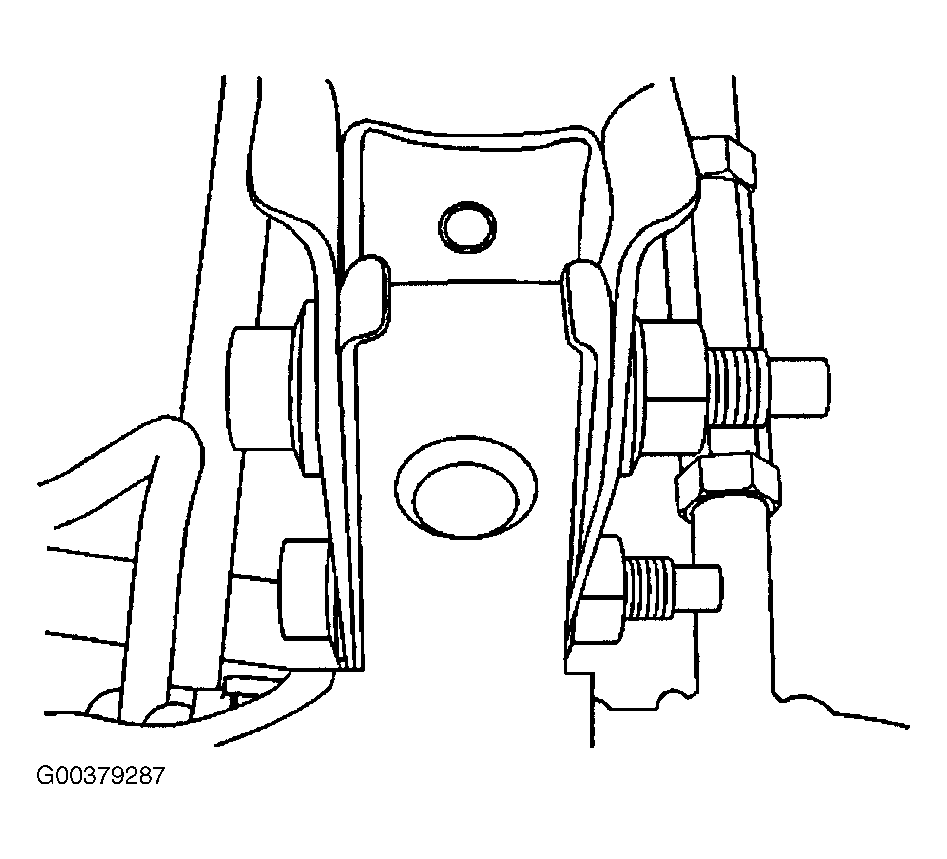

Fig 2: Locating Strut-To-Knuckle Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the strut to knuckle bolts.
Remove the strut from the vehicle.
