Ignition Module Removal - Right

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Remove the ignition coil assembly bolts.
Remove the ignition coil assembly.

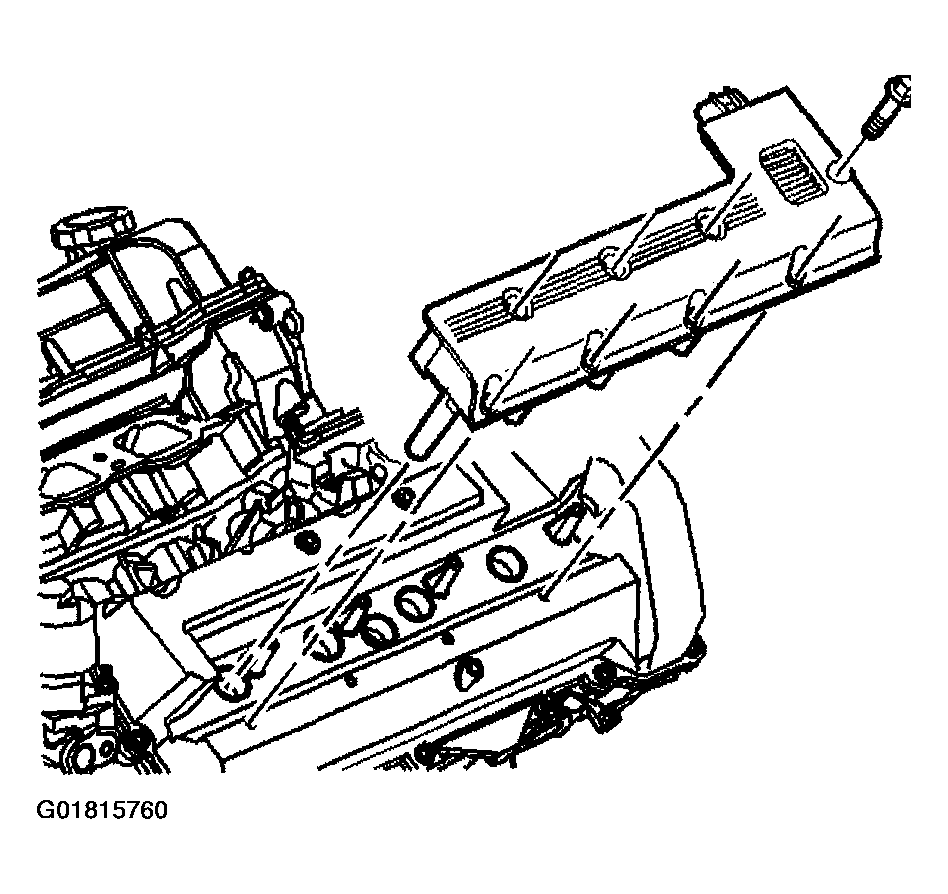

Fig 1: Removing Ignition Coil Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the left spark plugs.

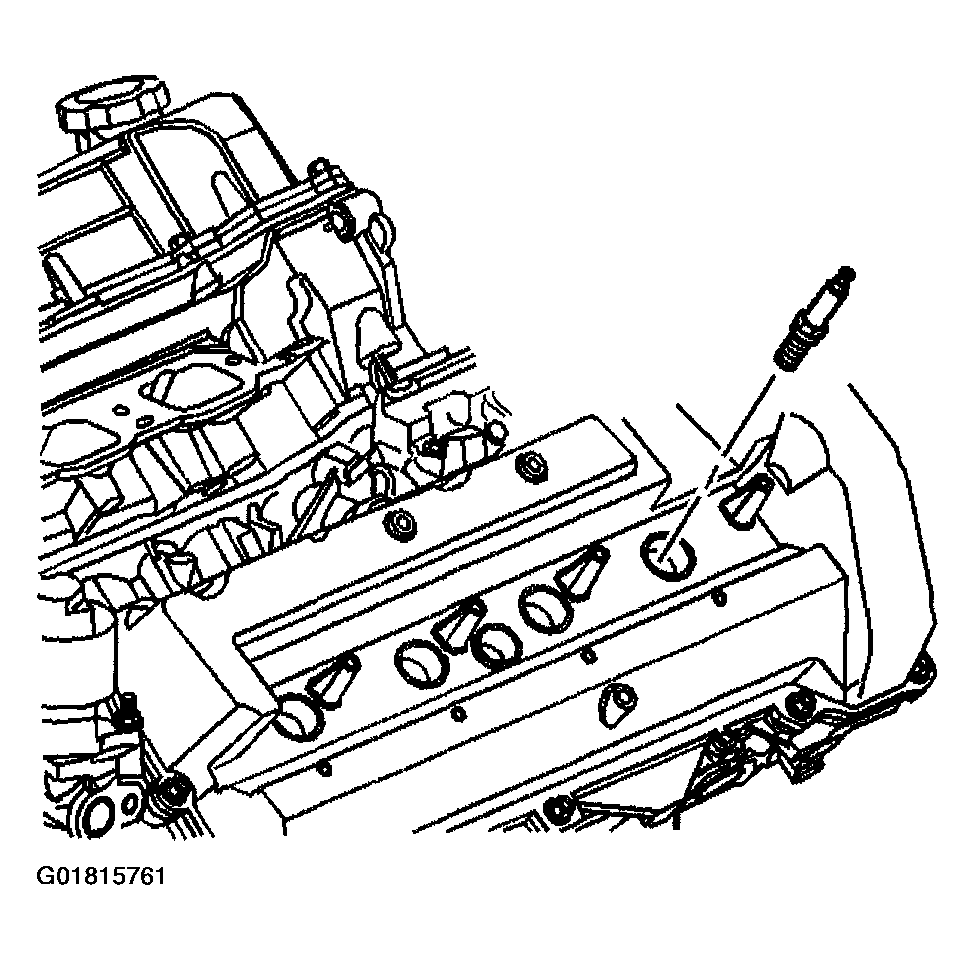

Fig 2: Removing Left Spark Plug
Courtesy of GENERAL MOTORS CORP.
Remove the spark plug boots.

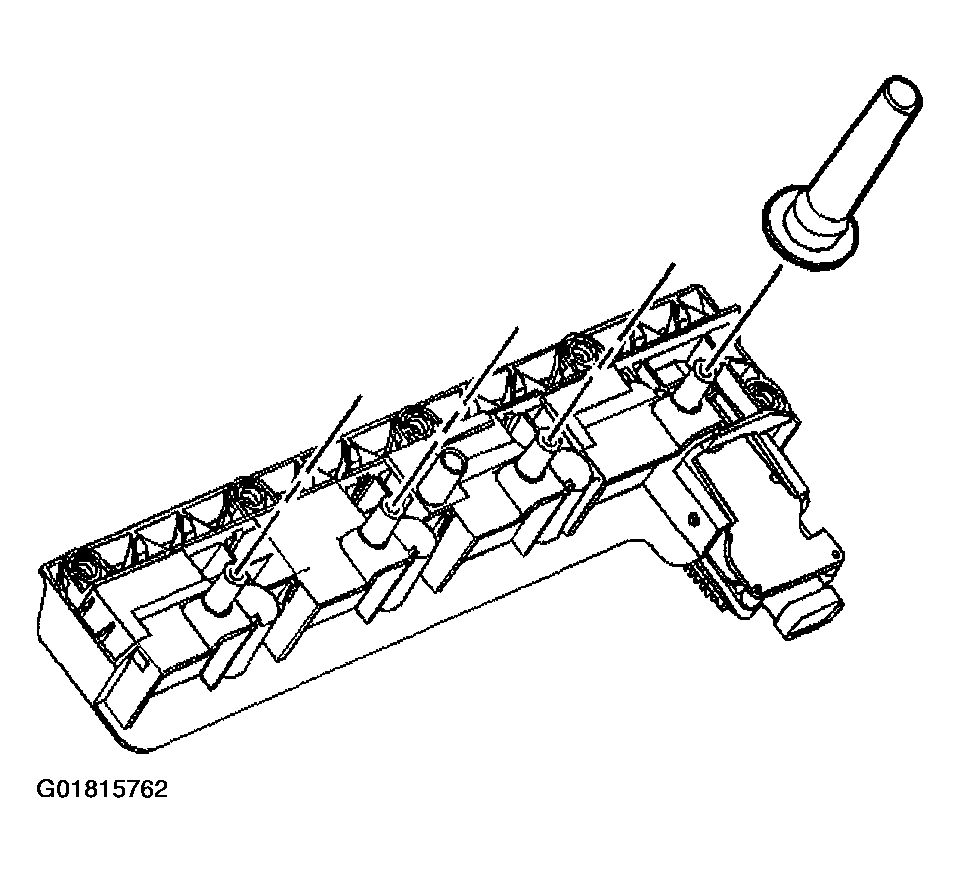

Fig 3: Removing Spark Plug Boots
Courtesy of GENERAL MOTORS CORP.
