Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the new water pump gasket.
Place the water pump in position on the front cover.

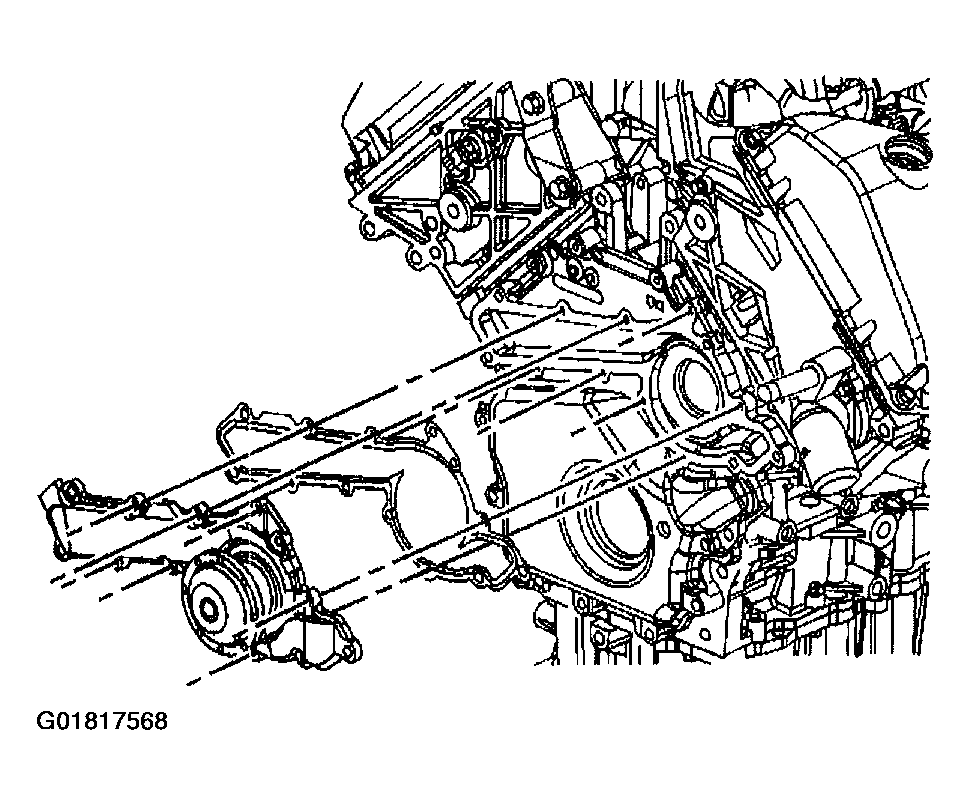

Fig 1: Installing Water Pump & Gasket
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to FASTENER NOTICE .
Install the short water pump bolts.
Tighten

Tighten the short water pump bolts in the sequence shown to 14 N.m (124 in lbs).

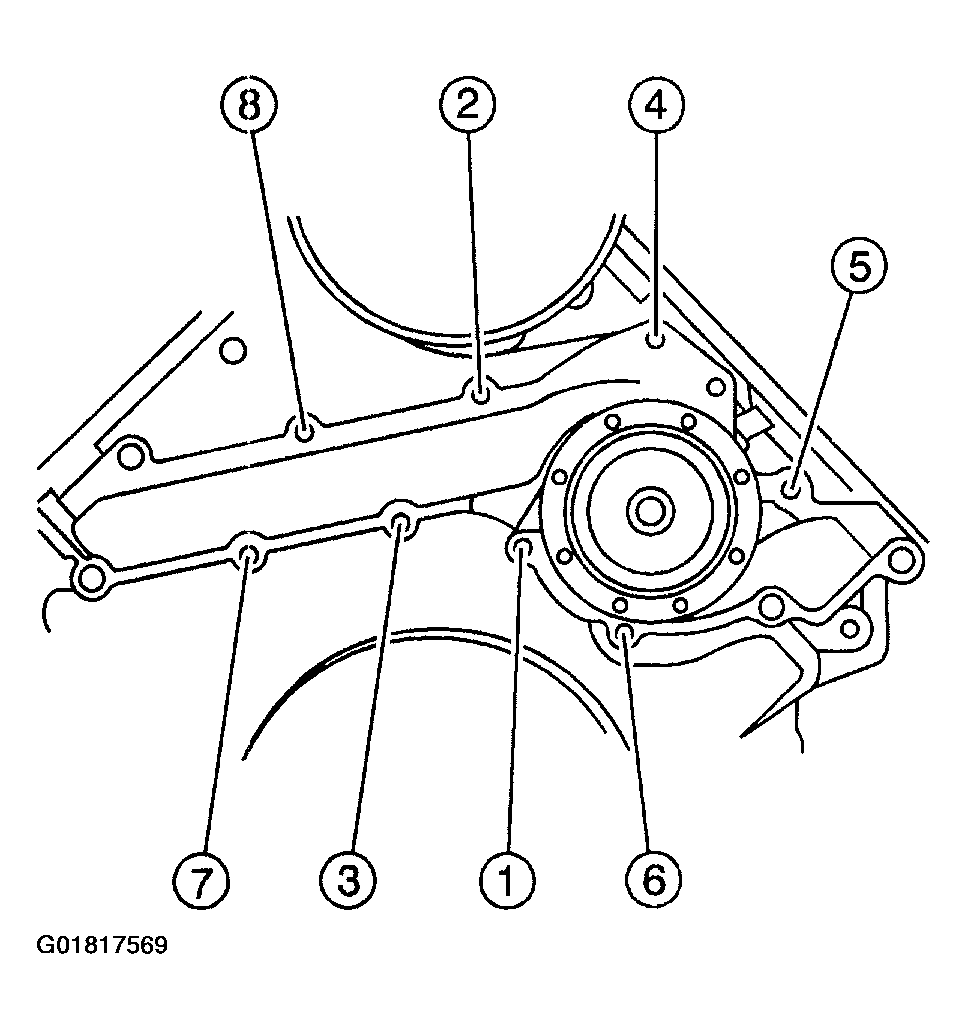

Fig 2: Identifying Short Water Pump Bolts Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
Install the long water pump bolts (1).
Tighten

Tighten the long water pump bolts to 14 N.m (124 in lbs).

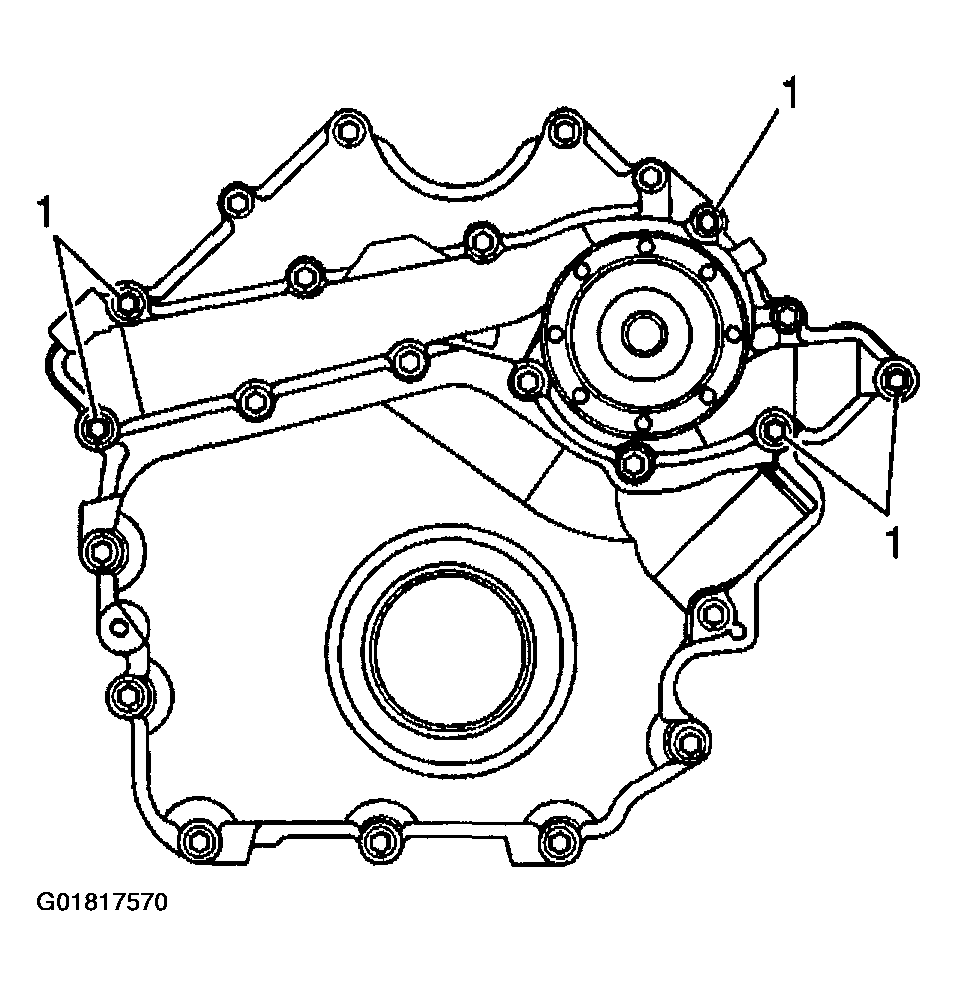

Fig 3: Installing Long Water Pump Bolts
Courtesy of GENERAL MOTORS CORP.
Install the water pump pulley.
Install the water pump pulley bolts and hand tighten.

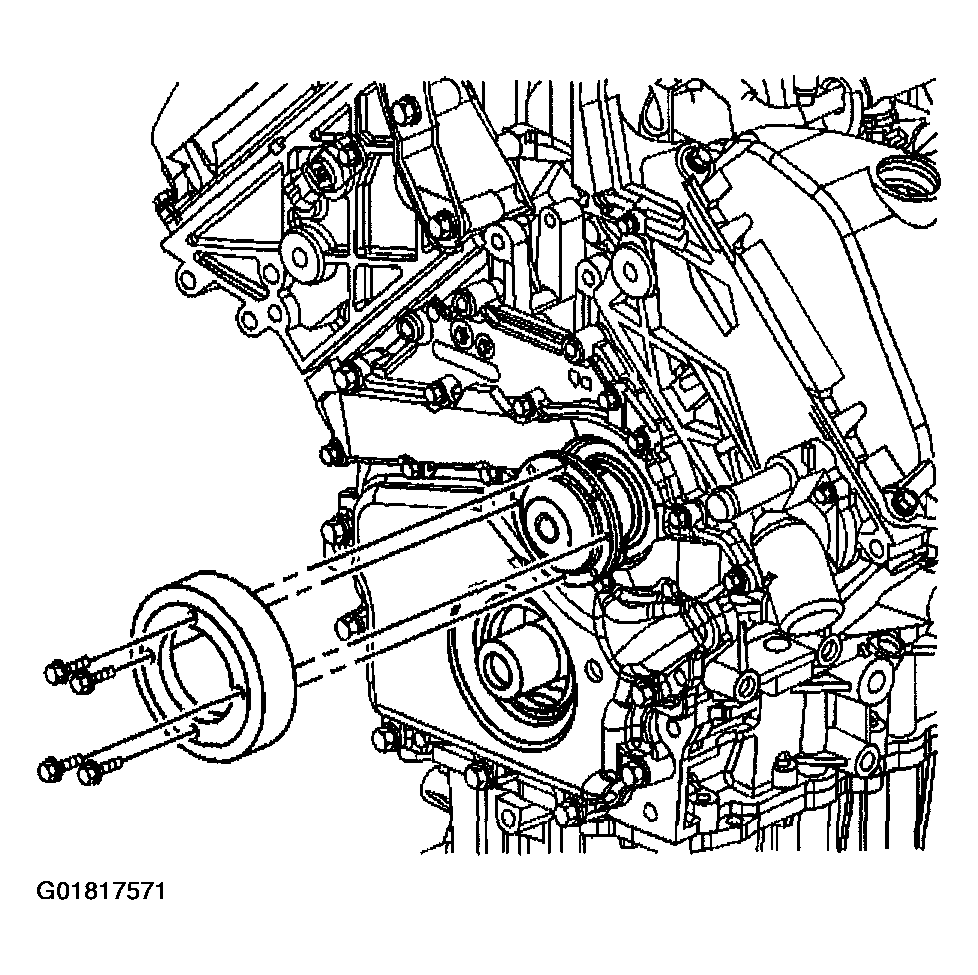

Fig 4: Installing Water Pump Pulley
Courtesy of GENERAL MOTORS CORP.
Install the drive belt idler pulley.
Install the drive belt idler pulley bolt.
Tighten

Tighten the drive belt idler pulley bolt to 50 N.m (37 ft lbs).

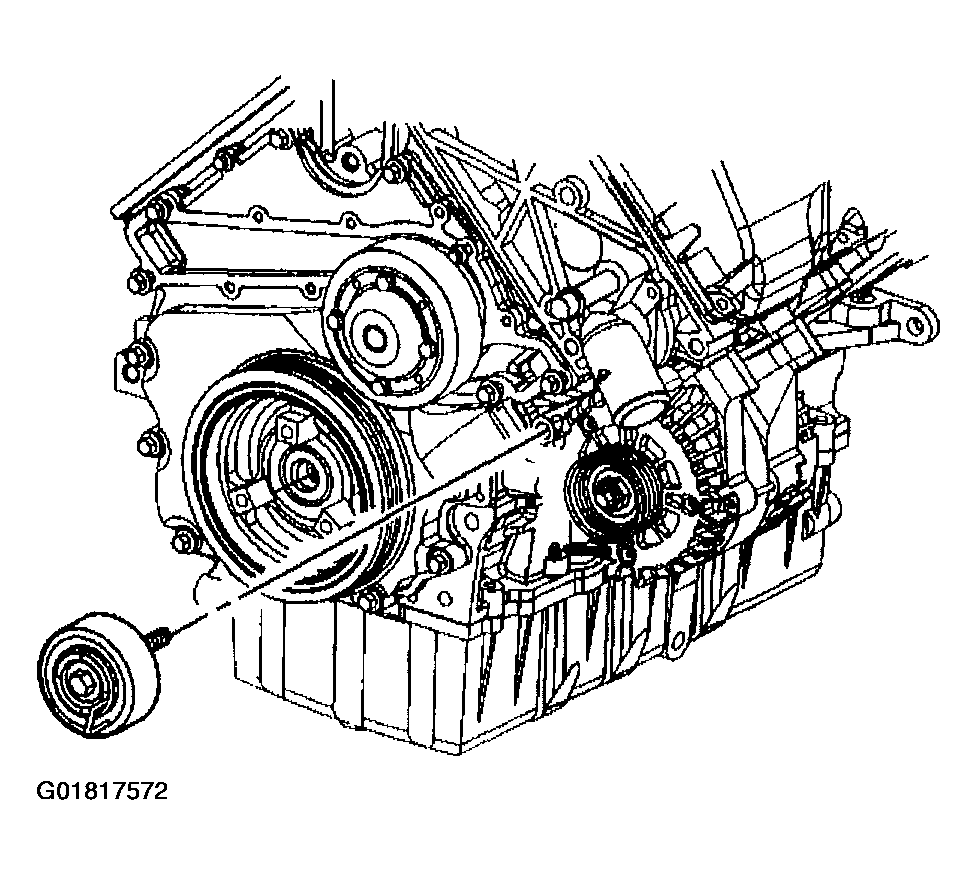

Fig 5: Installing Drive Belt Idler Pulley

Courtesy of GENERAL MOTORS CORP.

Install the drive belt. Refer to DRIVE BELT REPLACEMENT .
Tighten the water pump pulley bolts.
Tighten

Tighten the water pump pulley bolts to 12 N.m (106 in lbs).
Fill the cooling system. Refer to Draining and Filling Cooling System .
