Replacement Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the air deflector. Refer to AIR DEFLECTOR REPLACEMENT -- FRONT .
  3. Remove the fasteners securing the front fog lamp assembly to the front bumper fascia.
  4. Position the fog lamp forward in order to access the electrical connector.
  5. Disconnect the electrical connector from the front fog lamp assembly.
  6. Remove the fog lamp assembly.

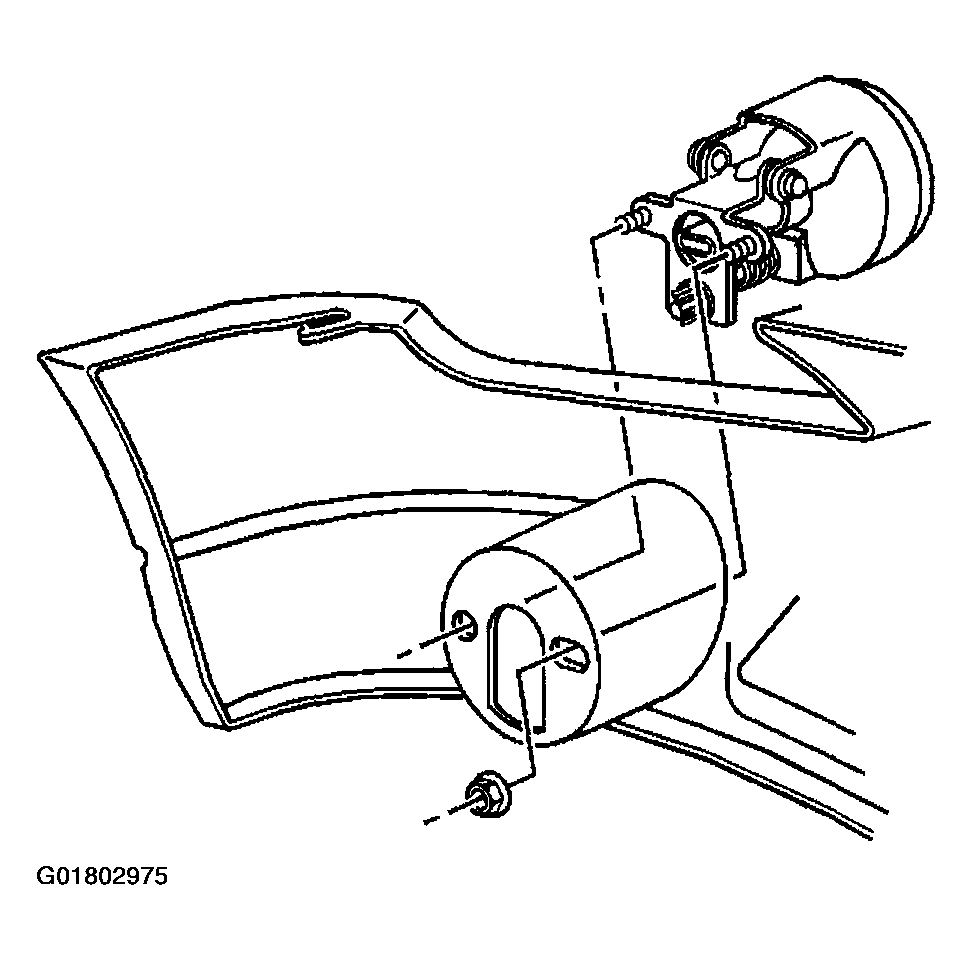

    Fig 1: Removing Front Fog Lamp Assembly
    G01802975Courtesy of GENERAL MOTORS CORP.
