Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
Disconnect the extension cable from the radio.

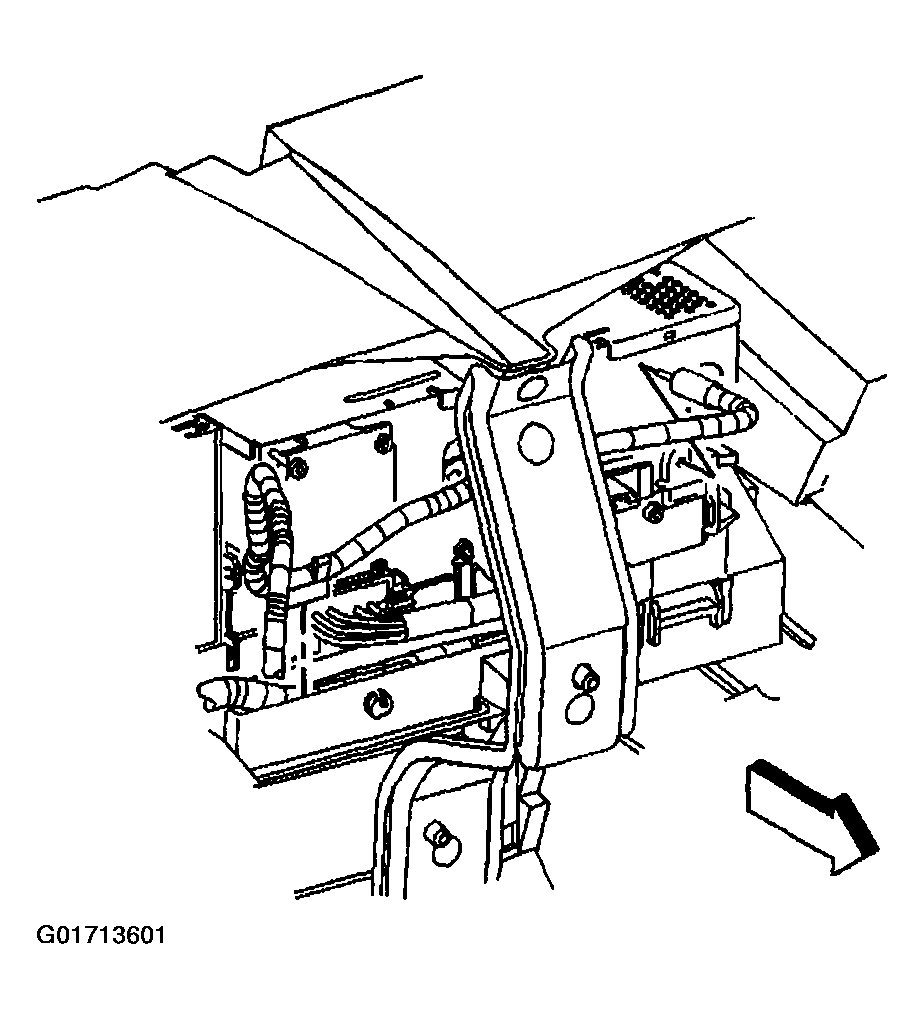

Fig 1: Antenna Extension Cable From Radio
Courtesy of GENERAL MOTORS CORP.
Disconnect the extension cable from the HVAC duct.

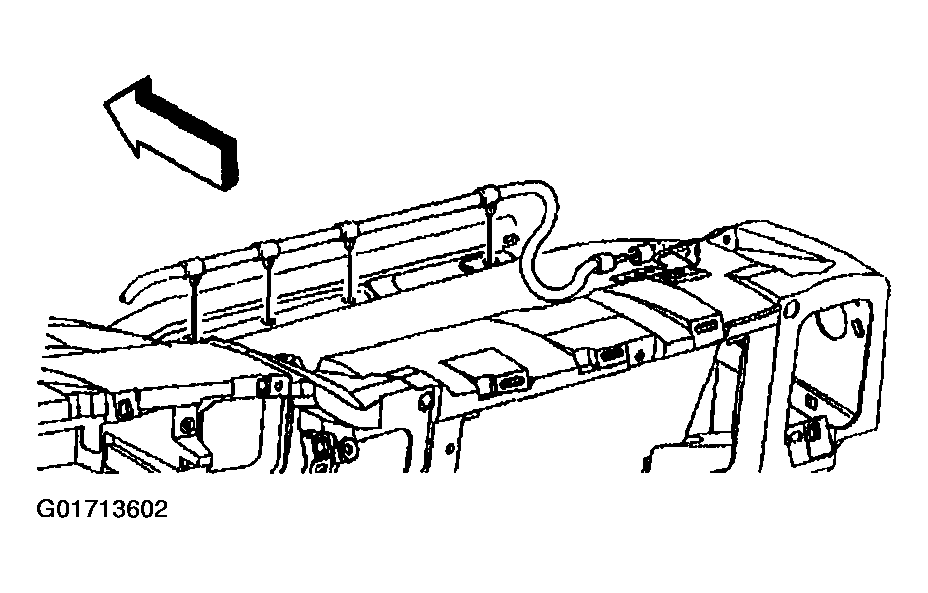

Fig 2: Antenna Extension Cable From HVAC Duct
Courtesy of GENERAL MOTORS CORP.
Disconnect the extension cable from the antenna.

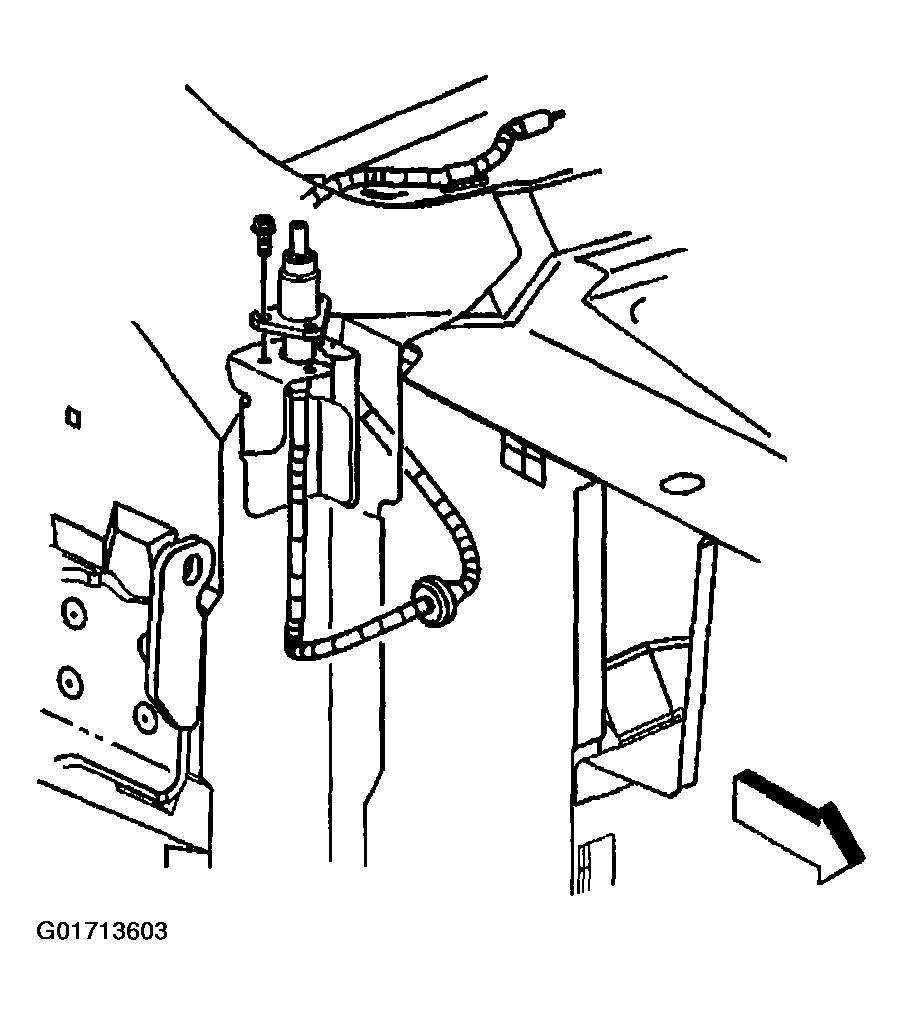

Fig 3: Antenna Extension Cable From Antenna
Courtesy of GENERAL MOTORS CORP.
