Removal Procedure
WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the I/P trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
- Remove the antenna mast.
- Remove the outboard section of the cowl vent grille panel.
- Remove the auxiliary battery, if equipped.

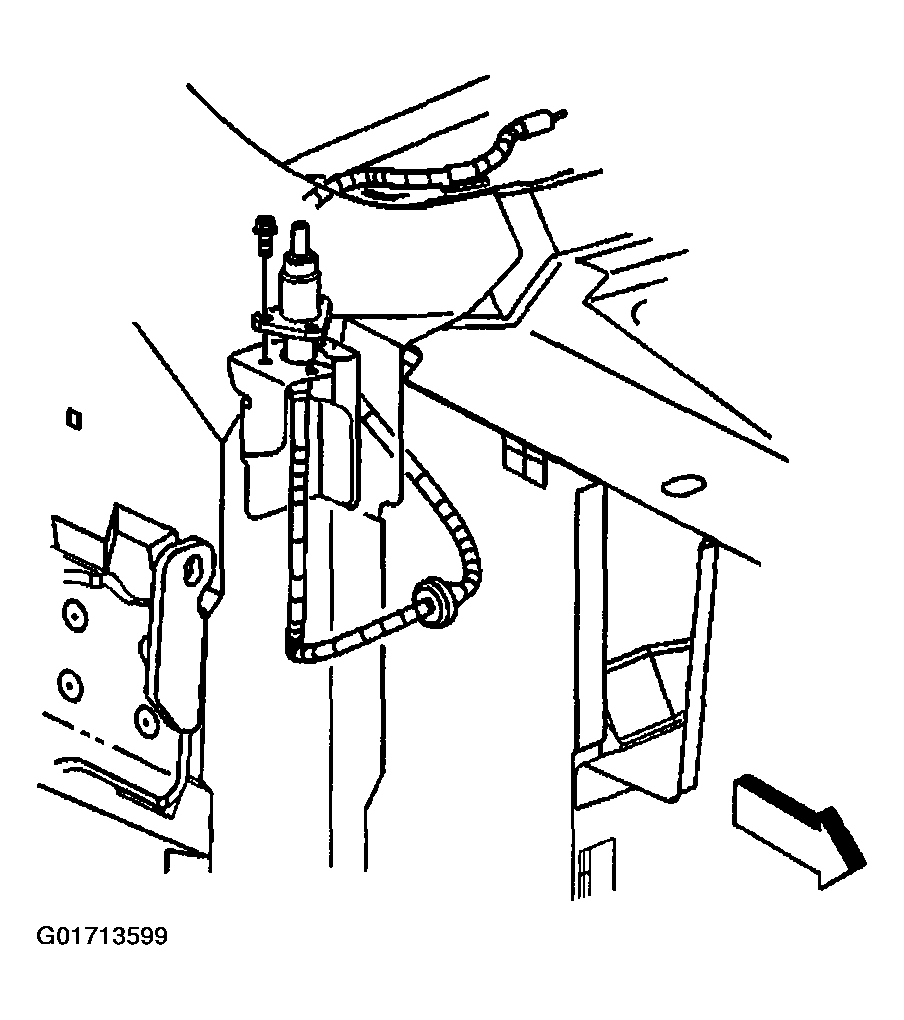

- Remove the 3 bolts.
- Remove the cable grommet from the body.
- Disconnect the antenna cable from the extension cable.
- Tie a long wire to the antenna cable.
- From outside of the vehicle, pull the antenna base and cable assembly until the wire can be easily accessible. Ensure part of the wire is still in the vehicle
- Remove the wire from the antenna cable.
