ABS Connector End Views

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

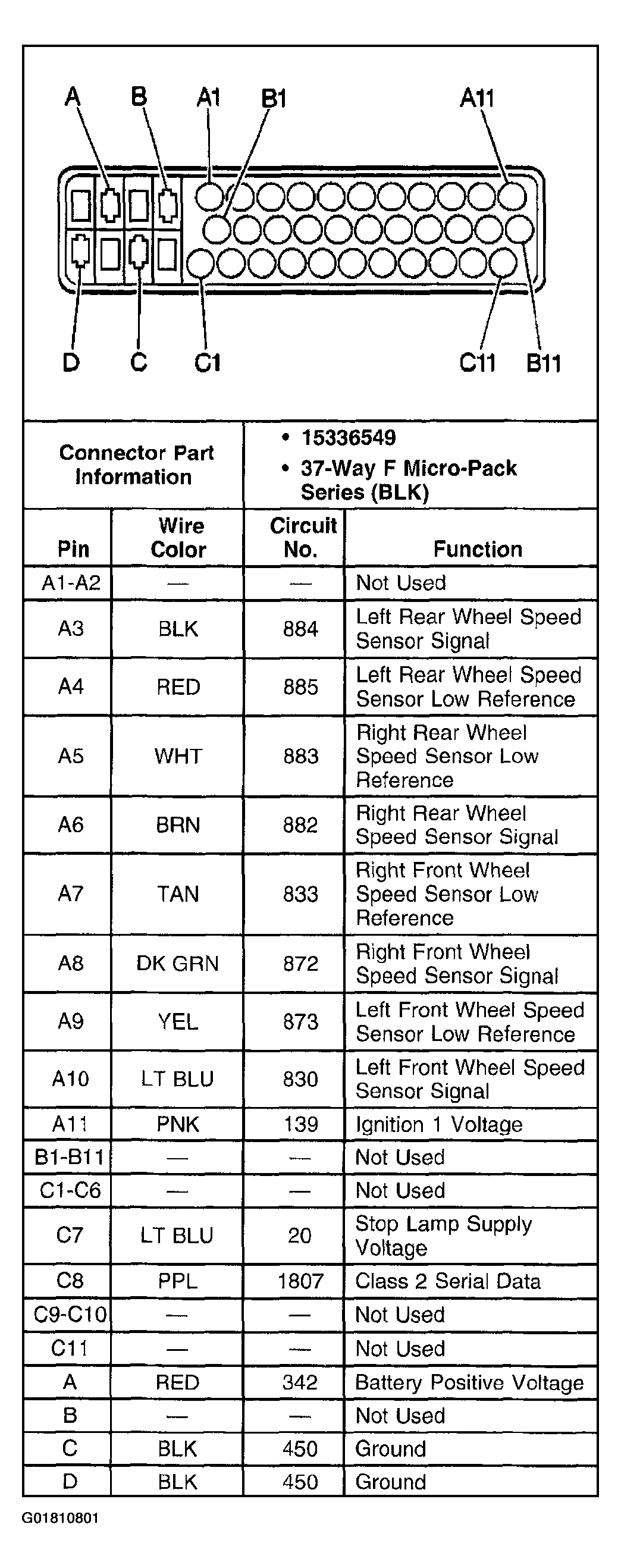

Fig 1: Electronic Brake Control Module (EBCM)

G01810801

Courtesy of GENERAL MOTORS CORP.

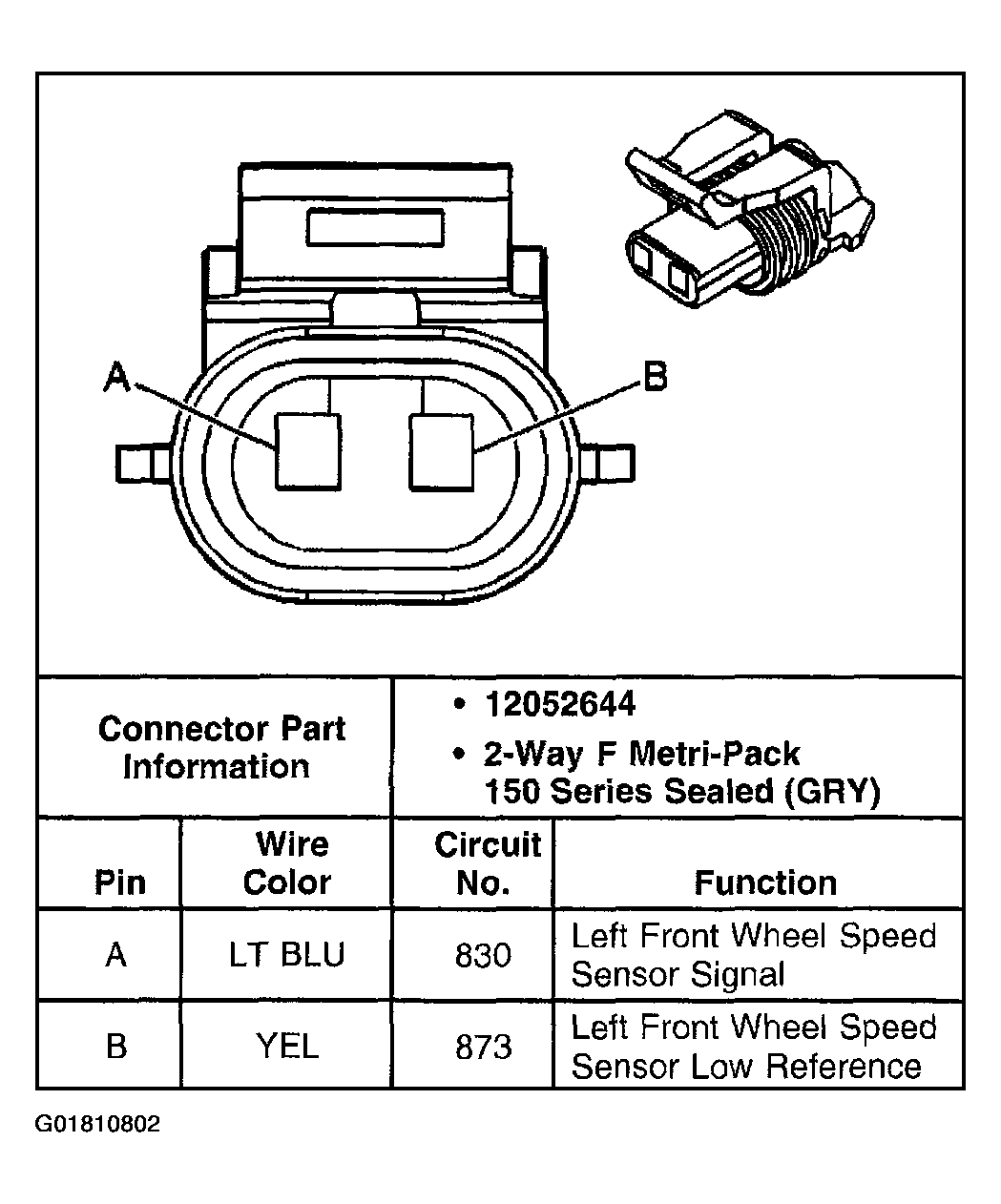

Fig 2: Wheel Speed Sensor (WSS) - LF

G01810802

Courtesy of GENERAL MOTORS CORP.

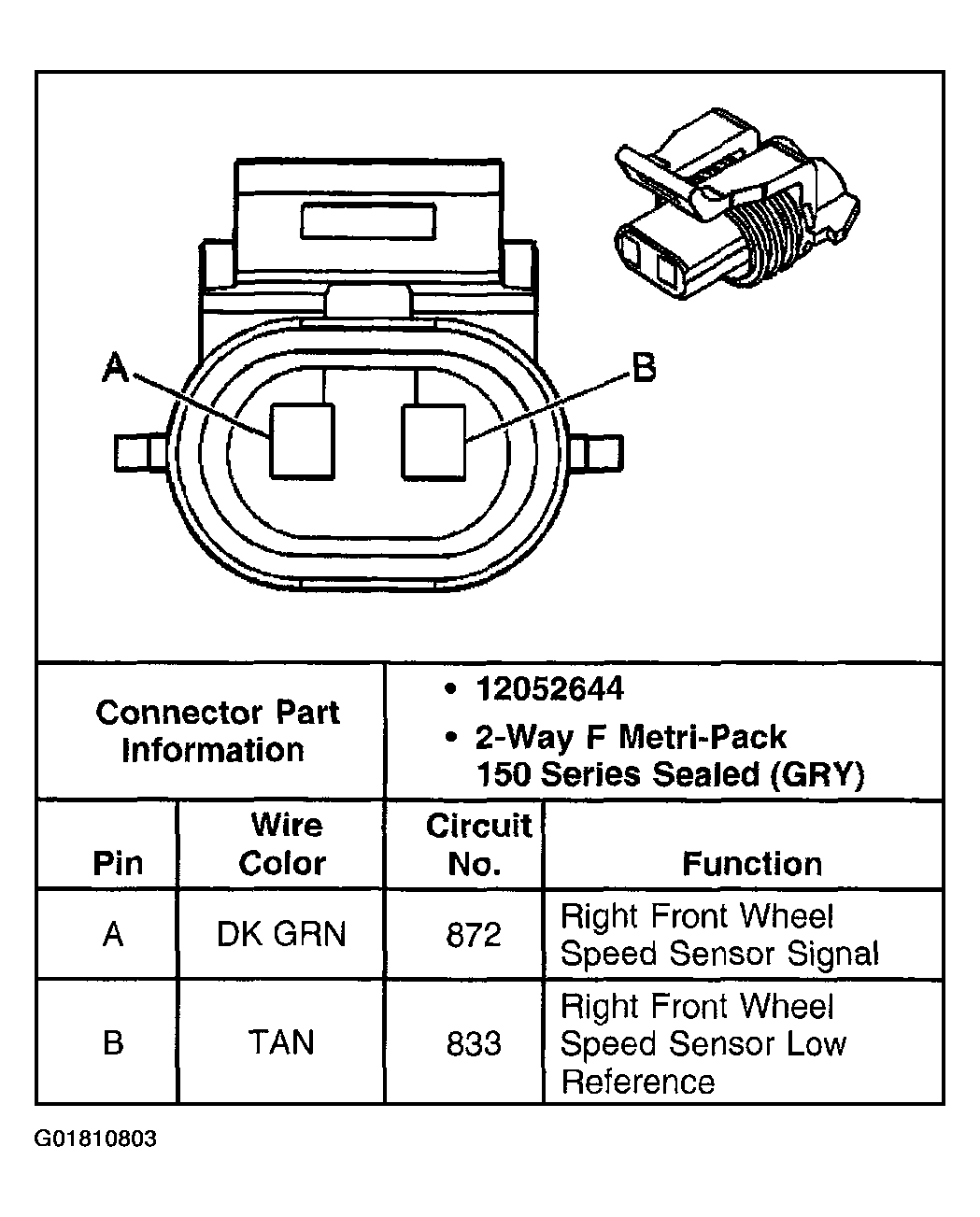

Fig 3: Wheel Speed Sensor (WSS) - RF

G01810803

Courtesy of GENERAL MOTORS CORP.

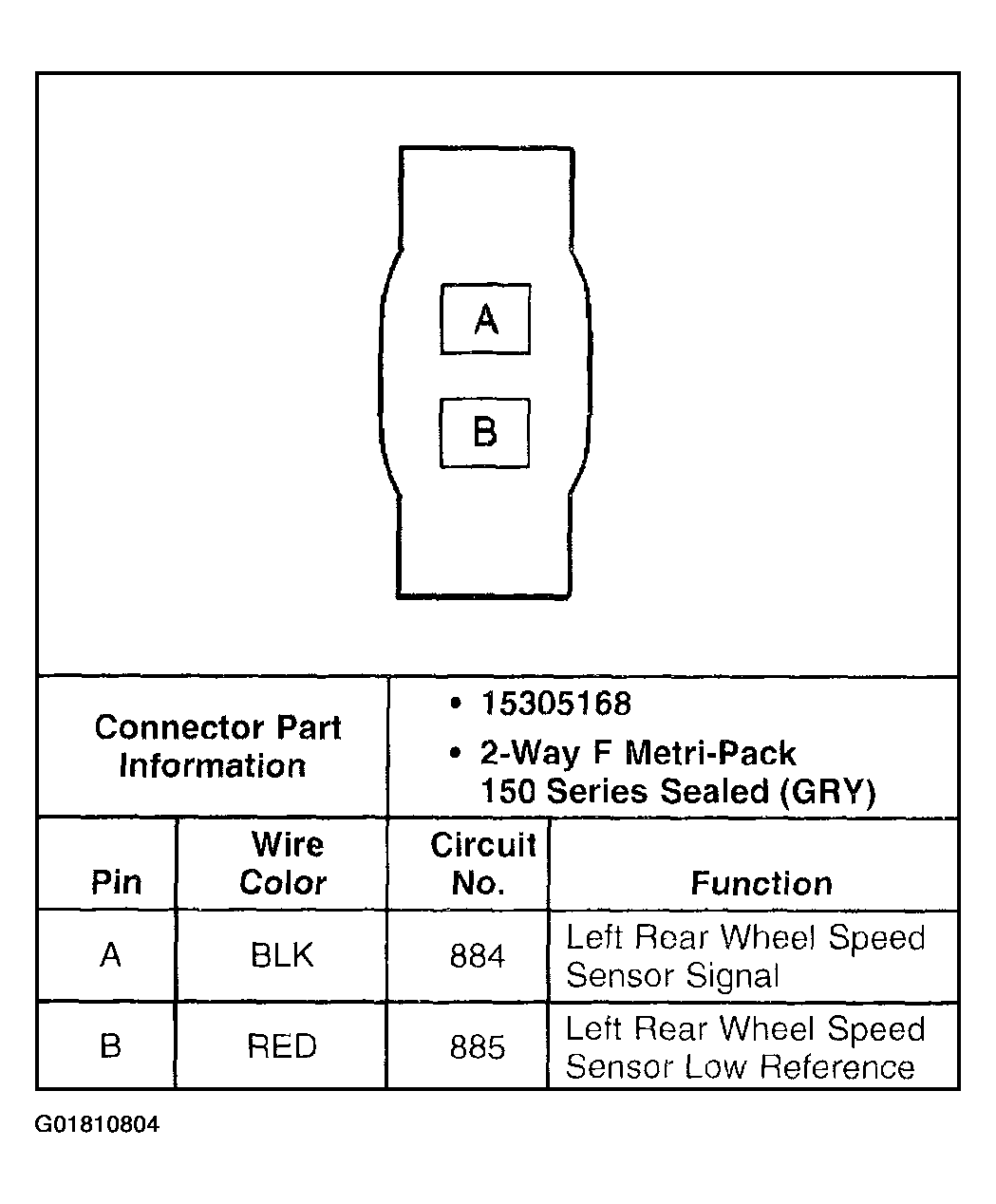

Fig 4: Wheel Speed Sensor (WSS) - LR

G01810804

Courtesy of GENERAL MOTORS CORP.

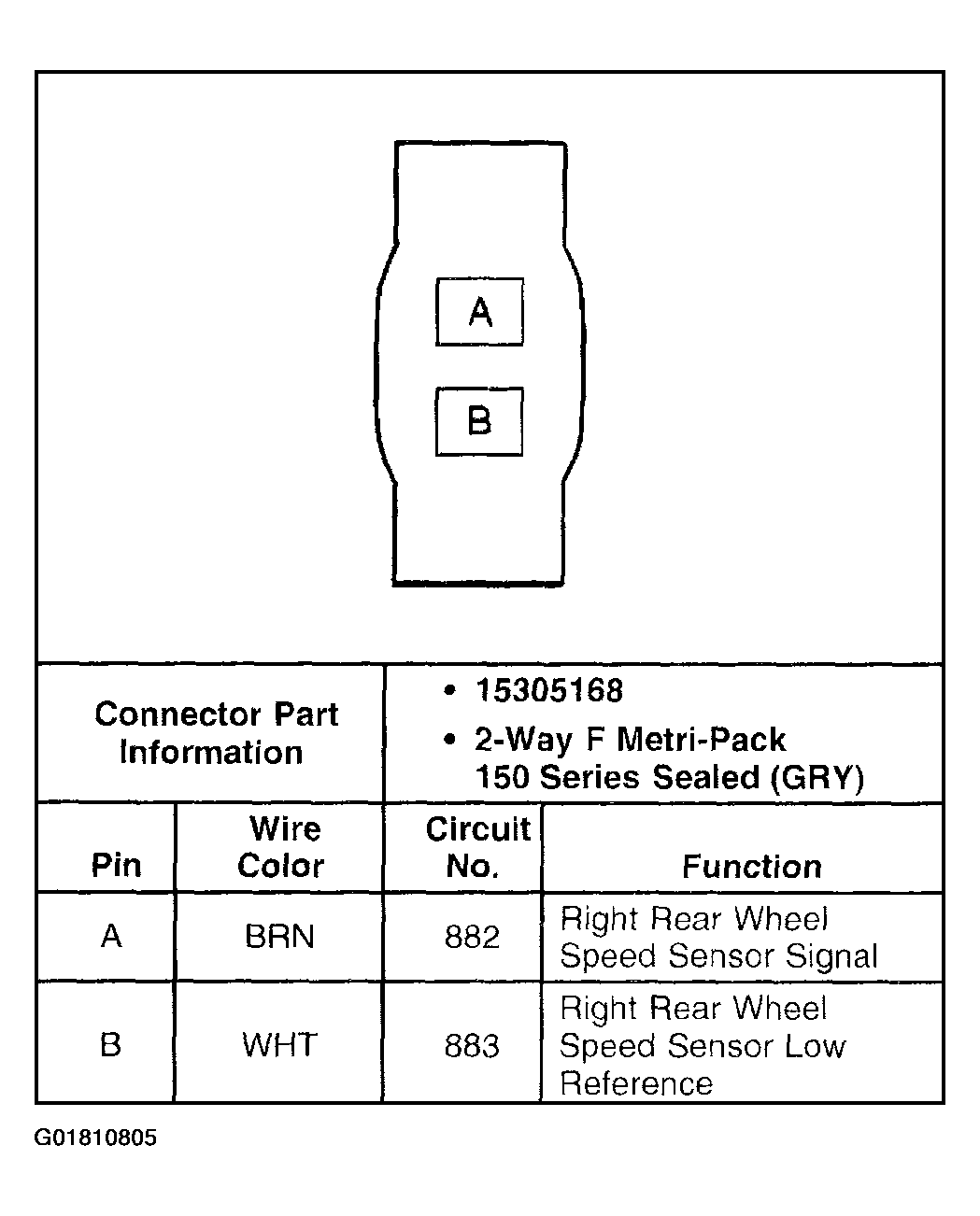

Fig 5: Wheel Speed Sensor (WSS) - RR

G01810805

Courtesy of GENERAL MOTORS CORP.
