Theft Deterrent System Component Views

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

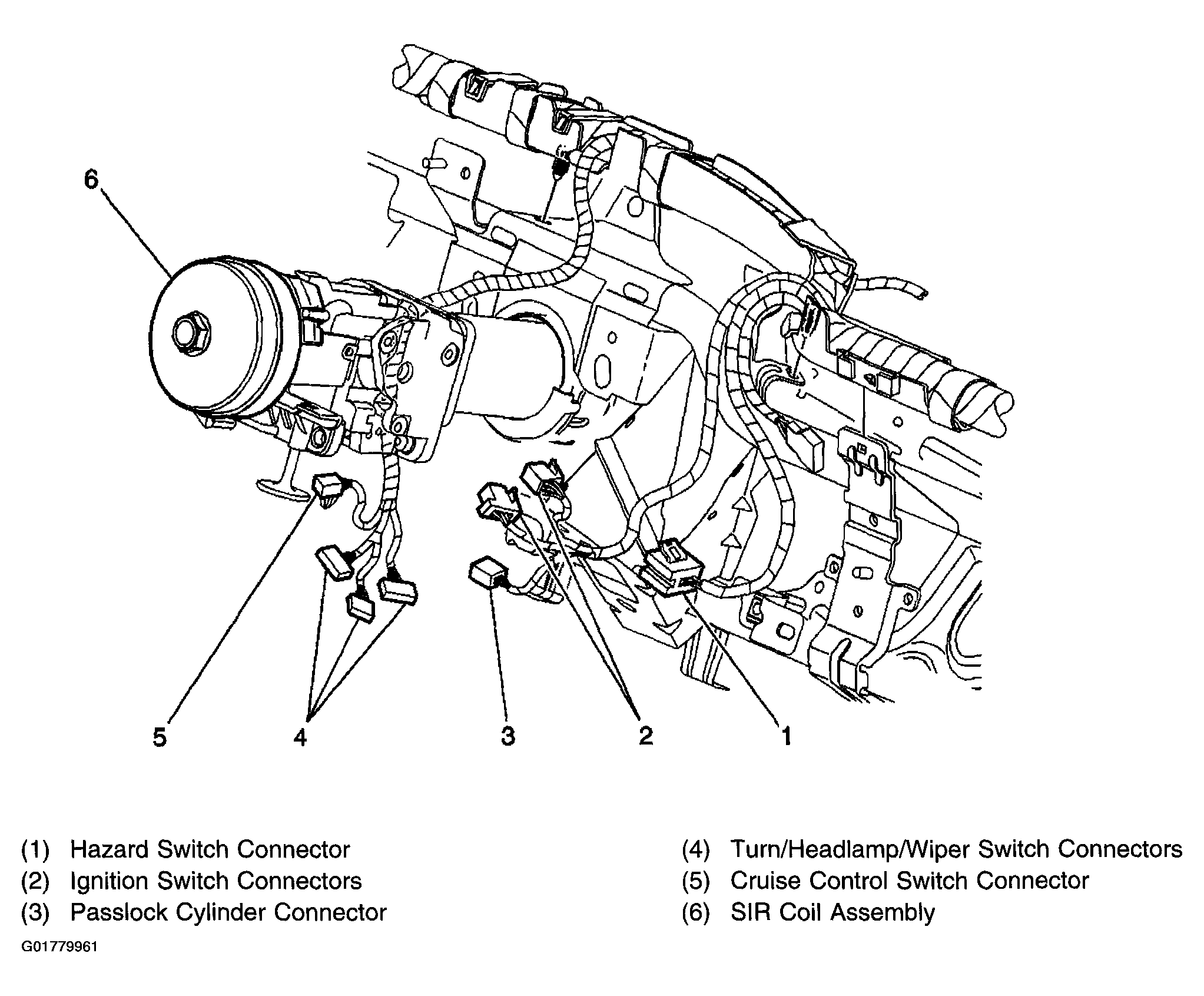

Fig 1: Identifying Steering Column Connectors Component View
G01779961Courtesy of GENERAL MOTORS CORP.
