Theft Deterrent System Connector End Views

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

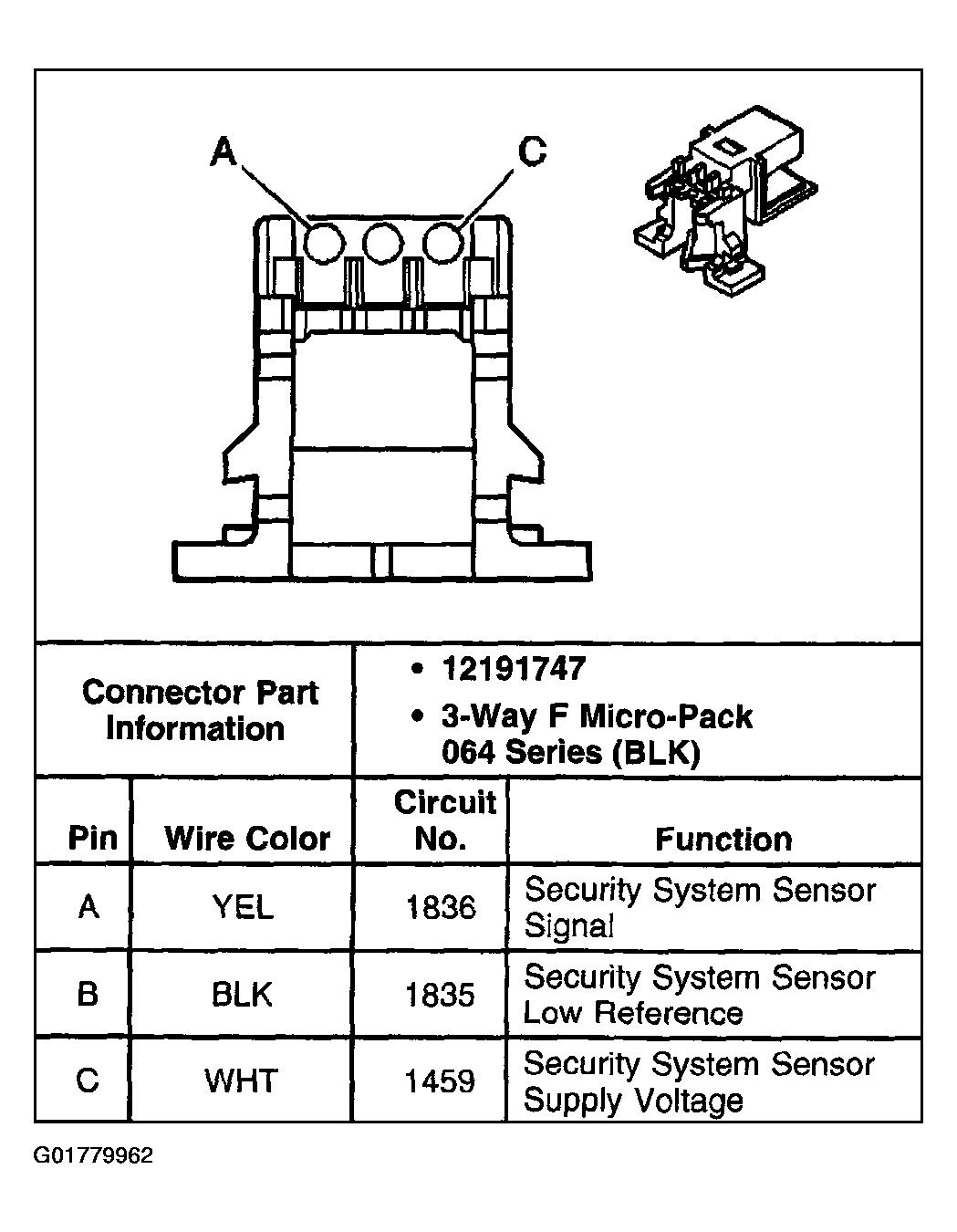

Fig 1: Identifying Passlock Sensor-Part Of Ignition Lock Cylinder Connector End View

Courtesy of GENERAL MOTORS CORP.
