Clutch Unit Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.

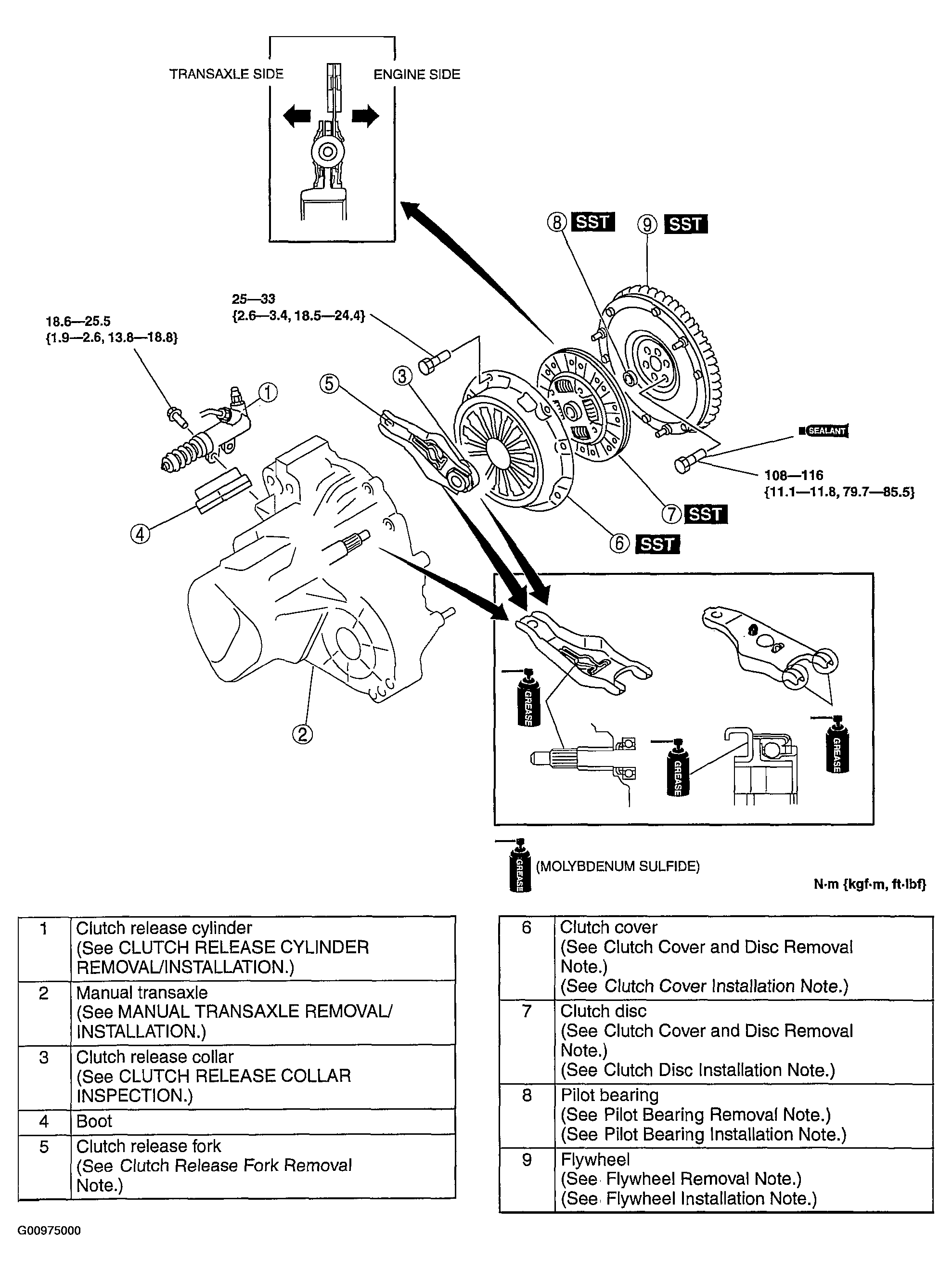

Fig 1: Clutch Unit With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
