Trunk Lid Lock Striker Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- Detach the trunk lid opener cable.

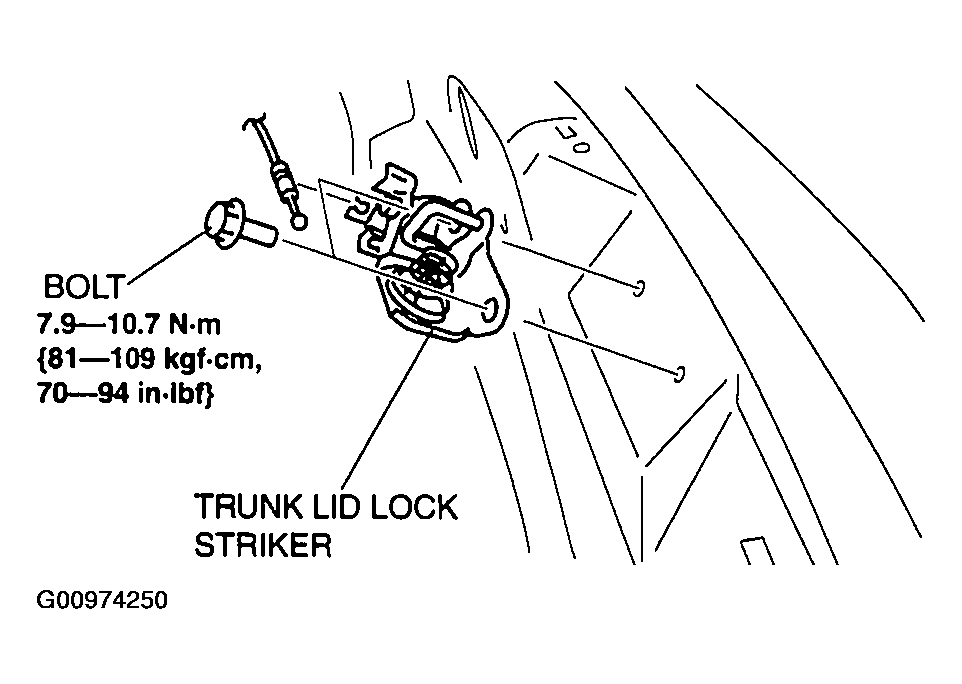

- Remove the bolts, then remove the trunk lid striker.
- Install in the reverse order of removal.
- Adjust the trunk lid. (See TRUNK LID ADJUSTMENT .)
