Floor Covering Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front seat (See FRONT SEAT REMOVAL/INSTALLATION .)
    2. Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
    3. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Console (See CONSOLE REMOVAL/INSTALLATION .)
    5. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    6. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    7. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    8. Lower anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    9. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    10. Fuel-filler lid opener lever cover (See FUEL-FILLER LID OPENER REMOVAL/INSTALLATION .)
    11. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
  3. Remove fasteners A, B, and C.
  4. Take the floor covering out from the opened door.
  5. Install in the reverse order of removal.

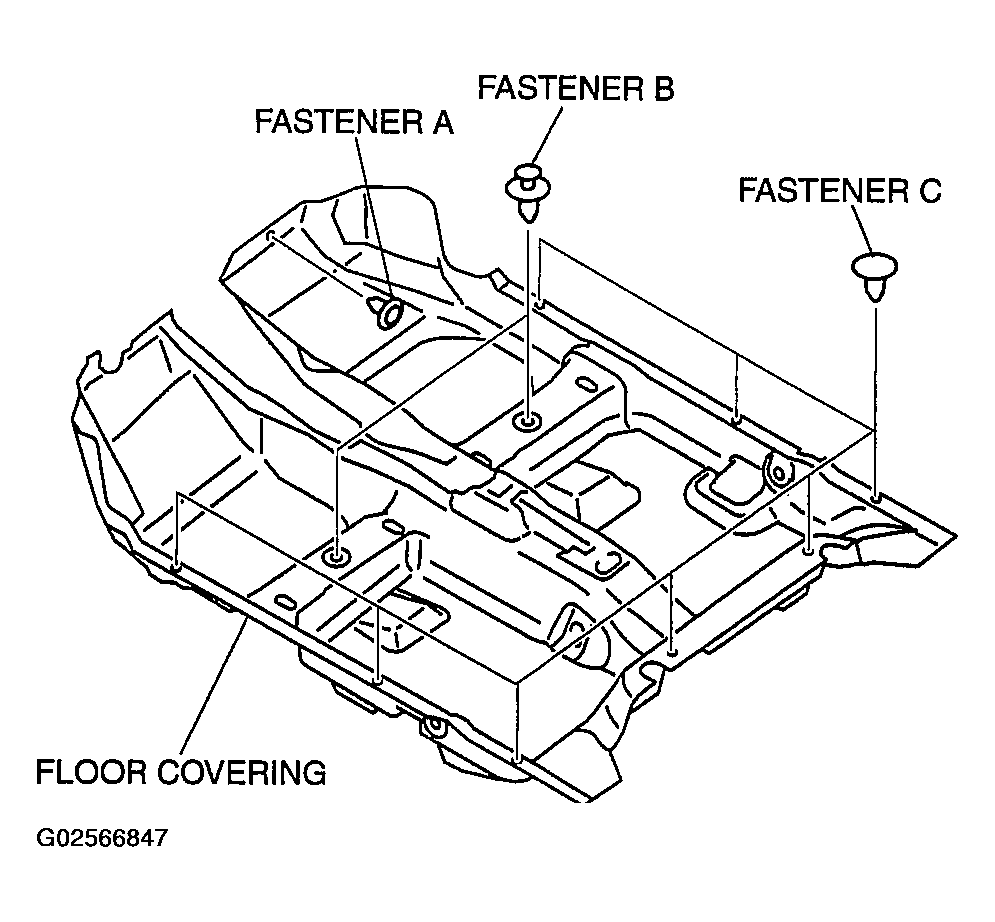

    Fig 1: Removing/Installing Floor Covering
    G02566847Courtesy of MAZDA MOTORS CORP.
